Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

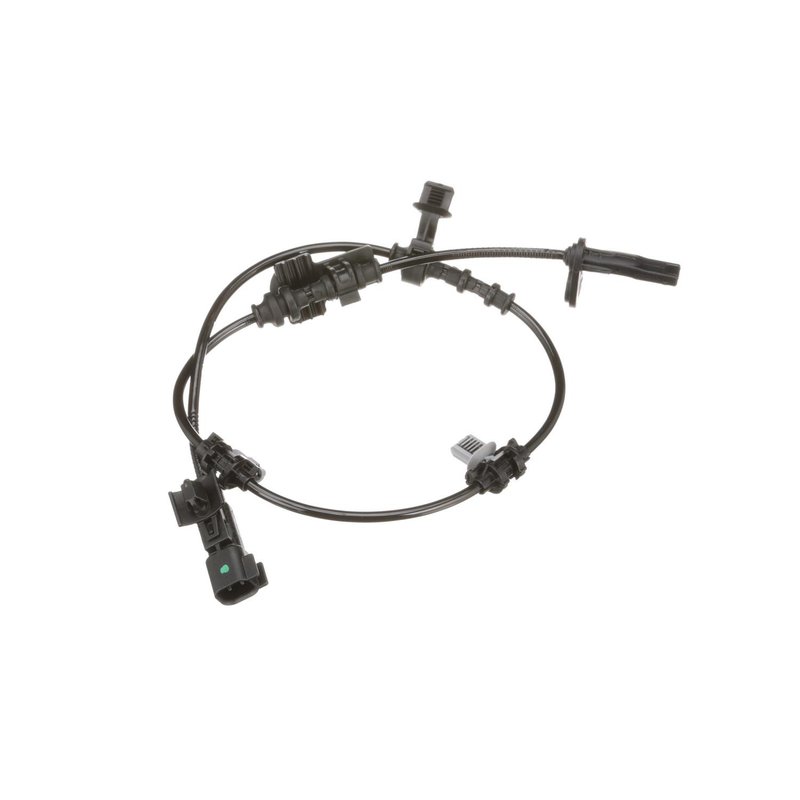

Standard Ignition ALS3289 ABS Wheel Speed Sensor - Rear
| Brand | Standard Ignition ALS3289 |
|---|---|
| Position | Rear |
| Mounting Hardware Included | No |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Dust Shield Included | No |
| Harness Length - inches | 24.5 |
| Harness Length - mm | 622.3 |
| Mounting Location | Wheel |
| Mounting Type | Bolt mount |
| Number of Bolt Holes | 1 |
| Terminal Type | Blade |
| Fits | Buick and Cadillac · 18 vehicles |
Direct replacement style. Wheel-mounted ABS sensor with a bolt-mount design for application-specific service.
Secure electrical connection. Rectangular female connector with 2 blade terminals for consistent fit.
Fitment-specific part number. Standard Ignition ALS3289 is searched by installers matching the correct rear sensor application.
Cross-references 533660, 42798614 and ABS3289 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
ABS Wheel Speed Sensor Overview
Standard Ignition ALS3289 is a wheel-mounted ABS wheel speed sensor built for rear applications on select Buick and Cadillac vehicles. It uses a rectangular female connector, a 2-terminal blade connection, and a bolt-mount design for a direct replacement-style fit.
Key Features
- Wheel-mounted ABS wheel speed sensor for rear applications
- Rectangular connector with female housing and male blade terminals
- Bolt-mount design with one bolt hole for secure attachment
- 24.5-inch harness length for routing flexibility
- Standard Ignition ALS3289 for fitment-specific replacement searches
Detailed Description
ALS3289 is an ABS wheel speed sensor intended for rear wheel locations on compatible Buick and Cadillac models, including the Buick Envision, Cadillac XT4, Buick Regal Sportback, Buick Regal TourX, and Buick LaCrosse. It is a wheel-mounted sensor with a single bolt-hole mounting design, a rectangular connector, and a 24.5-inch harness. For shoppers searching by part number, ALS3289 is the reference to use when matching the correct rear ABS sensor application.
This part cross-references ABS3289 and 533660 for the same application.
What It Helps Address
- ABS warning light caused by a failed wheel speed sensor
- Erratic or missing wheel speed signal data
- Traction control or stability system faults tied to sensor input
- Brake system diagnostic trouble codes related to wheel speed sensing
Installation Notes and Tips
Confirm connector shape, terminal style, mounting type, and harness length before installation. Match the rear wheel location and verify the vehicle application against the fitment list for Buick and Cadillac models. Inspect the mounting point and wiring path for corrosion, damage, or debris that could affect sensor performance.
Quality Assurance
Standard Ignition replacement parts are built for application-specific service and are commonly searched by OE-style part number. ALS3289 is listed with confirmed rear fitment for select Buick and Cadillac vehicles.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Buick | Envision | — | Rear | — |
| 2024 | Cadillac | XT4 | — | Rear | — |
| 2023 | Buick | Envision | — | Rear | — |
| 2023 | Cadillac | XT4 | — | Rear | — |
| 2022 | Buick | Envision | — | Rear | — |
| 2022 | Cadillac | XT4 | — | Rear | — |
| 2021 | Buick | Envision | — | Rear | — |
| 2021 | Cadillac | XT4 | — | Rear | — |
| 2020 | Buick | Regal Sportback | AWD | Rear | — |
| 2020 | Buick | Regal TourX | AWD | Rear | — |
| 2020 | Cadillac | XT4 | — | Rear | — |
| 2019 | Buick | LaCrosse | — | Rear | — |
| 2019 | Buick | Regal Sportback | AWD | Rear | — |
| 2019 | Buick | Regal TourX | — | Rear | — |
| 2019 | Cadillac | XT4 | — | Rear | — |
| 2018 | Buick | LaCrosse | — | Rear | — |
| 2018 | Buick | Regal Sportback | AWD | Rear | — |
| 2018 | Buick | Regal TourX | — | Rear | — |
