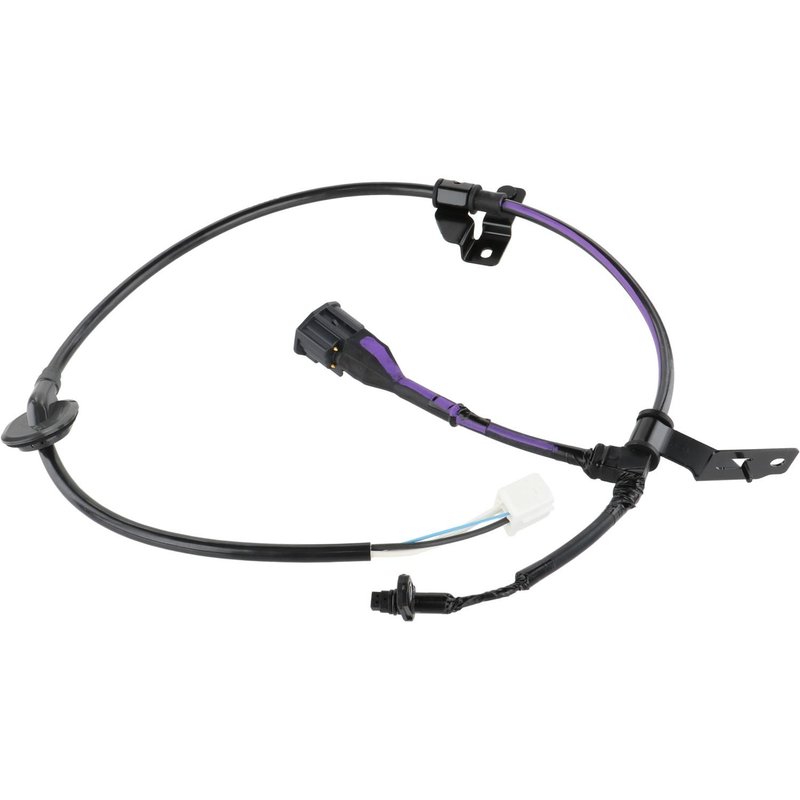

Standard Ignition ALS3330 ABS Wheel Speed Sensor - Rear Right

ABS Wheel Speed Sensor for Mazda 6

Standard Ignition ALS3330 is an ABS wheel speed sensor for the rear right position on select 2018-2021 Mazda 6 models. It monitors wheel speed data for the anti-lock brake system, helping the vehicle’s control modules track wheel rotation during braking and traction events.

• Part number: ALS3330
• Category: Brake sensor / ABS wheel speed sensor
• Mounting location: Wheel
• Mounting type: Bolt mount with 3 bolt holes
• Harness length: 41.75 in. (1060.5 mm)
• Connector configuration: 2 connectors, rectangular shape, male/female connector gender
• Terminal details: 6 terminals, blade/slide terminal type, female terminal gender
• Dust shield: Not included
• Mounting hardware: Not included

Fitment Details

Fits 2018-2021 Mazda 6, rear right. This fitment covers the Mazda 6 rear right ABS wheel speed sensor application for the listed model years.

This part cross-references 533701 and ABS3330 for the same application.

Product Overview

Standard Ignition ALS3330 is built for vehicles that rely on accurate wheel speed input to support ABS operation. The sensor mounts at the wheel and uses a bolt-on design with a rectangular dual-connector layout and a 41.75-inch harness, making it a direct replacement style part for the specified Mazda 6 rear right location. If your Mazda 6 shows ABS-related warning lights or wheel speed signal faults, this sensor addresses the rear right wheel input path used by the braking system.

Common Issues This Sensor Can Address

• ABS warning light triggered by a rear wheel speed signal fault
• Loss of wheel speed data from the rear right sensor location
• Brake system fault codes related to wheel speed monitoring
• Traction control or stability system warnings tied to ABS input
• Intermittent braking system communication caused by a damaged sensor or harness

Installation Notes

Verify connector style, harness routing, and bolt-hole alignment before installation. Inspect the wheel-end tone ring, wiring path, and connector terminals for corrosion, debris, or physical damage before replacing the sensor. On 2018-2021 Mazda 6 rear right applications, confirm the sensor seats fully at the wheel mounting point and that the harness is routed away from moving suspension components.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical and sensor components. ALS3330 is specified with application details that support accurate part matching for the listed Mazda 6 fitment.
