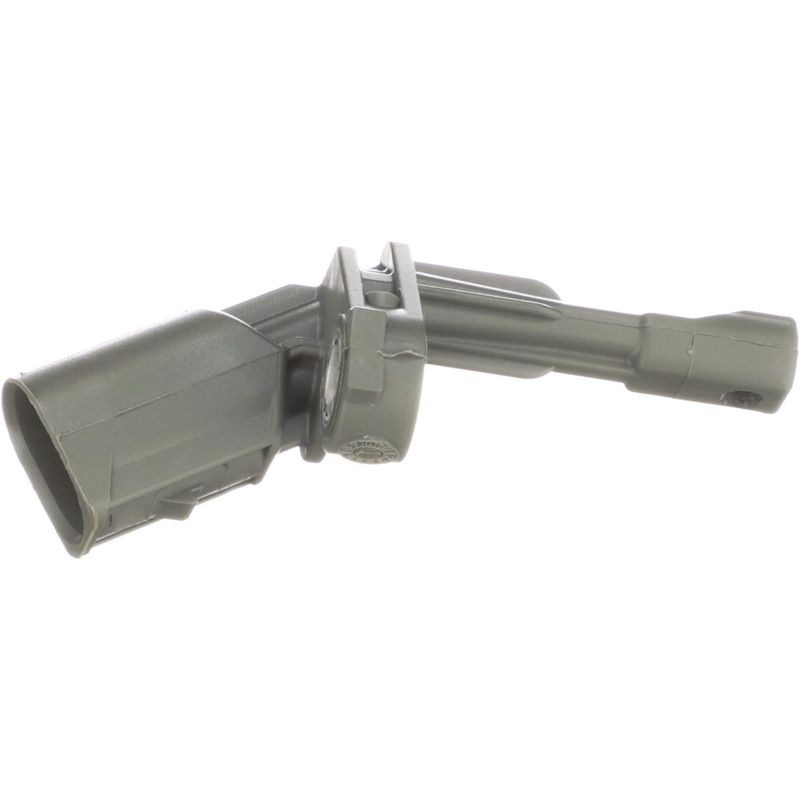

Standard Ignition ALS3453 ABS Wheel Speed Sensor - Rear Left
| Brand | Standard Ignition ALS3453 |
|---|---|
| Position | Rear Left |
| Mounting Hardware Included | No |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Attachment Method | Bolt mount |
| Color/Finish | Gray |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Dust Shield Included | No |
| Hardware Included | No |
| Harness Length - inches | W/o harness |
| Harness Length - mm | No wire |
| Mounting Bracket(s) Included | No |
| Mounting Hole Quantity | 1 |
| Mounting Location | Spindle |
| Mounting Type | Bolt mount |
| Number of Bolt Holes | 1 |
| O.E.M. Replacement | Yes |
| Terminal Type | Blade |
| Wiring Harness Included | No |
| Fits | Audi and Volkswagen · 38 vehicles |
OE replacement. Direct-fit ABS wheel speed sensor for select European braking systems.
Bolt-mount design. Single-hole attachment with an oval connector and blade terminals.
No extra hardware. Supplied without a harness, bracket, or mounting hardware.
Cross-references Standard Ignition ALS3453, 1K0927807A and 533732 for the same application. See all 5.
ABS Wheel Speed Sensor Overview
The Standard Ignition ALS3453 is an OE replacement ABS wheel speed sensor for select Volkswagen and Audi applications. It is built with a bolt-mount design, a single oval connector, and a gray finish for a direct-fit service part.
Compatible With rear left applications on the Volkswagen Passat, Beetle, Jetta, CC, and Tiguan, as well as the Audi Q3 and Q3 Quattro in the listed fitments. The ALS3453 is identified by part number ALS3453 and cross-references 1K0927807A and 533732 for the same application.
Key Features
- OE replacement ABS wheel speed sensor for select European vehicles
- Bolt-mount design with one mounting hole and one bolt hole
- Female connector with male blade terminals
- Single connector, oval shape, gray finish
- No wiring harness, mounting hardware, or dust shield included
Detailed Description
The ALS3453 is an ABS wheel speed sensor engineered for rear left fitments that require automated parking assist, blind spot monitoring, or tire pressure monitoring system OE design sensor configurations. It serves the wheel speed input used by the ABS system to monitor wheel rotation and support stable braking control. This part number, ALS3453, is listed for Volkswagen Passat, Beetle, Jetta, CC, and Tiguan applications, plus Audi Q3 and Q3 Quattro fitments shown in the catalog data.
What It Is Used For
- Restoring ABS wheel speed signal accuracy
- Replacing a damaged or failed wheel speed sensor
- Addressing ABS warning lights caused by sensor faults
- Correcting wheel speed data issues in monitored braking systems
Installation Notes and Tips
Verify the rear left mounting location, connector style, and OE replacement requirements before installation. This sensor uses a bolt-mount attachment at the spindle and does not include a wiring harness, mounting hardware, or a mounting bracket. Confirm the vehicle’s listed option package, such as automated parking assist or blind spot monitoring, to match the catalog fitment exactly.
Quality Assurance
Standard Ignition catalogs this part as an OE replacement sensor. Part number ALS3453 is supported by interchange references 1K0927807A and 533732 for the same application.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2022 | Volkswagen | Passat | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2021 | Volkswagen | Passat | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2020 | Volkswagen | Passat | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2019 | Volkswagen | Beetle | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2019 | Volkswagen | Passat | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2018 | Audi | Q3 | — | 2.0L | L4 | Rear Left | w/ Automated Parking Assist |
| 2018 | Audi | Q3 Quattro | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2018 | Volkswagen | Beetle | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2018 | Volkswagen | Jetta | — | 2.0L | L4 | Rear Left | w/ Blind Spot Monitoring |
| 2018 | Volkswagen | Passat | — | 2.0L | L4 | Rear Left | w/ Automated Parking Assist |
| 2017 | Audi | Q3 | — | 2.0L | L4 | Rear Left | w/ Automated Parking Assist |
| 2017 | Audi | Q3 Quattro | — | — | — | Rear Left | Tire Pressure Monitoring System OE Design Sensor |
| 2017 | Volkswagen | Beetle | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2017 | Volkswagen | CC | FWD | 2.0L | L4 | Rear Left | w/ Blind Spot Monitoring |
| 2017 | Volkswagen | Jetta | — | 1.8L | L4 | Rear Left | w/ Blind Spot Monitoring |
| 2017 | Volkswagen | Passat | — | 1.8L | L4 | Rear Left | w/ Automated Parking Assist |
| 2017 | Volkswagen | Tiguan | FWD | — | — | Rear Left | w/ Automated Parking Assist |
| 2016 | Audi | Q3 | — | 2.0L | L4 | Rear Left | w/ Automated Parking Assist |
| 2016 | Audi | Q3 Quattro | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2016 | Volkswagen | Beetle | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2016 | Volkswagen | CC | FWD | — | — | Rear Left | w/ Blind Spot Monitoring |
| 2016 | Volkswagen | Jetta | — | 1.4L | L4 | Rear Left | w/ Blind Spot Monitoring |
| 2016 | Volkswagen | Passat | — | 1.8L | L4 | Rear Left | w/ Automated Parking Assist |
| 2016 | Volkswagen | Tiguan | FWD | — | — | Rear Left | w/ Automated Parking Assist |
| 2015 | Audi | Q3 | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2015 | Audi | Q3 Quattro | — | — | — | Rear Left | Tire Pressure Monitoring System OE Design Sensor |
| 2015 | Volkswagen | Beetle | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2015 | Volkswagen | CC | FWD | — | — | Rear Left | w/ Blind Spot Monitoring |
| 2015 | Volkswagen | Jetta | — | 1.4L | L4 | Rear Left | w/ Blind Spot Monitoring |
| 2014 | Volkswagen | Beetle | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2014 | Volkswagen | CC | FWD | — | — | Rear Left | w/ Blind Spot Monitoring |
| 2013 | Volkswagen | Beetle | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2013 | Volkswagen | CC | FWD | — | — | Rear Left | w/ Blind Spot Monitoring |
| 2012 | Volkswagen | Beetle | — | — | — | Rear Left | w/ Automated Parking Assist |
| 2012 | Volkswagen | CC | FWD | — | — | Rear Left | w/ Blind Spot Monitoring |
| 2011 | Volkswagen | CC | FWD | — | — | Rear Left | w/ Blind Spot Monitoring |
| 2010 | Volkswagen | CC | FWD | — | — | Rear Left | w/ Blind Spot Monitoring |
| 2009 | Volkswagen | CC | FWD | — | — | Rear Left | w/ Blind Spot Monitoring |
