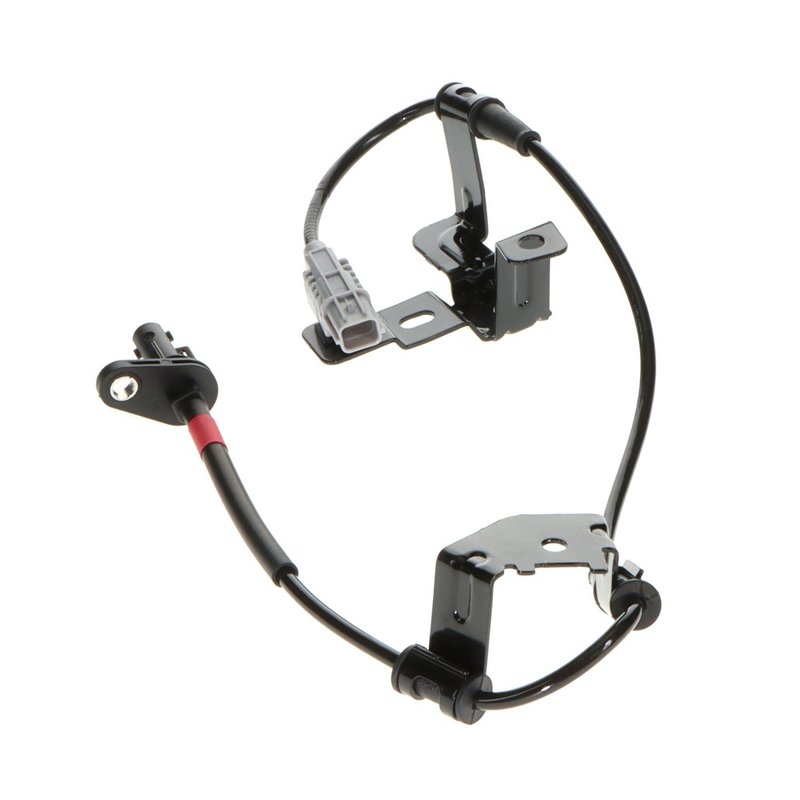

Standard Ignition ALS3456 ABS Wheel Speed Sensor - Rear Right
| Brand | Standard Ignition ALS3456 |
|---|---|
| Position | Rear Right |
| Mounting Hardware Included | No |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Dust Shield Included | No |
| Harness Length - inches | 24.5 |
| Harness Length - mm | 622.3 |
| Mounting Location | Wheel |
| Mounting Type | Bolt mount |
| Number of Bolt Holes | 5 |
| Terminal Type | Blade |
| Fits | Genesis and Kia · 8 vehicles |
Bolt-mount design. Installs securely with a 5-hole mounting pattern.
Wheel speed sensor. Monitors wheel rotation for ABS system feedback.
Rectangular connector. Features a female connector with blade terminals.
Cross-references Standard Ignition ALS3456, 59930J5110 and 533844 for the same application. See all 5.
ABS Wheel Speed Sensor for Rear Right Fitment
Standard Ignition ALS3456 is an ABS wheel speed sensor for the rear right wheel position on select Kia Stinger and Genesis G70 models. It monitors wheel speed data for the anti-lock brake system, helping the vehicle control module track wheel rotation accurately during braking.
- ABS wheel speed sensor for wheel-mounted rear right applications
- 24.5-inch harness length for routing to the factory connection point
- 1 rectangular female connector with 2 terminals
- Bolt-mount design with 5 bolt holes
- Blade terminal type for direct electrical connection
- Standard Ignition ALS3456 replacement for select Kia and Genesis applications
Fitment and Application Details
Fits 2018-2023 Kia Stinger, rear right. Fits 2019-2020 Genesis G70, rear right. This part number, ALS3456, is used in rear right wheel speed sensor applications where the ABS system needs a stable signal from the wheel hub area. It also cross-references 59930J5110 for the same application.
What This Sensor Helps Address
- ABS warning light triggered by a failed rear wheel speed sensor
- Erratic or missing wheel speed signal at the rear right wheel
- Brake system fault codes related to wheel speed input
- Loss of anti-lock braking function caused by sensor signal interruption
- Drivability issues tied to incorrect wheel speed data
Installation Notes and Tips
Verify rear right position fitment before installation and compare the connector, terminal count, and mounting style to the original sensor. The bolt-mount design uses 5 bolt holes and a 24.5-inch harness, so routing should follow the factory path to avoid strain or contact with moving suspension components. ALS3456 does not include mounting hardware or a dust shield.
Quality Assurance
Standard Ignition supplies replacement brake and sensor components for service applications, and ALS3456 is built to match the listed connector, terminal, and mounting specifications for the confirmed vehicle fitments.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Kia | Stinger | Rear Right | — |
| 2022 | Kia | Stinger | Rear Right | — |
| 2021 | Kia | Stinger | Rear Right | — |
| 2020 | Genesis | G70 | Rear Right | — |
| 2020 | Kia | Stinger | Rear Right | — |
| 2019 | Genesis | G70 | Rear Right | — |
| 2019 | Kia | Stinger | Rear Right | — |
| 2018 | Kia | Stinger | Rear Right | — |
