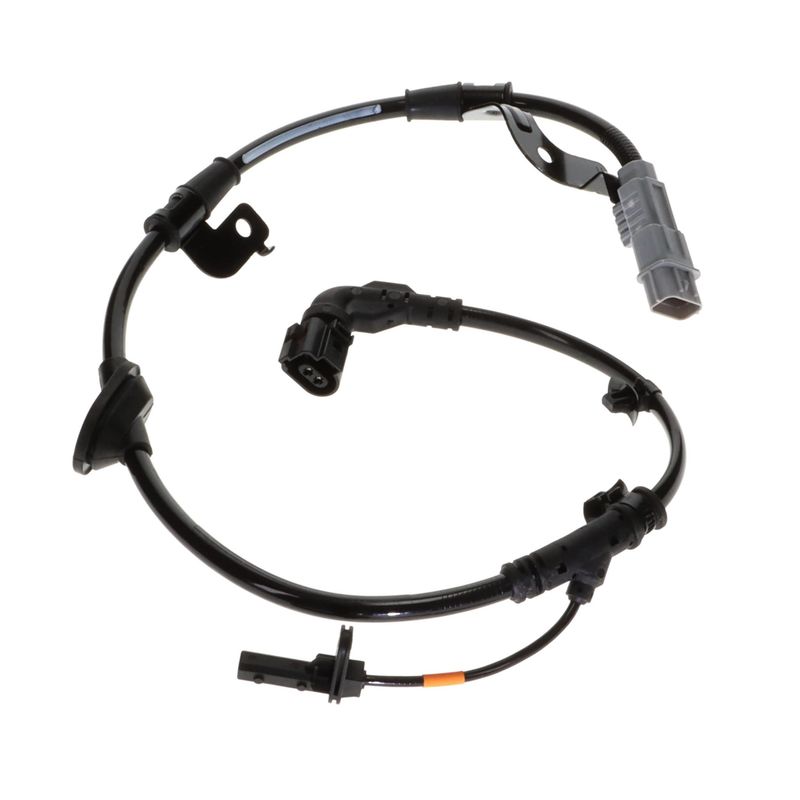

Standard Ignition ALS3500 ABS Wheel Speed Sensor - Rear Right
| Brand | Standard Ignition ALS3500 |
|---|---|
| Position | Rear Right |
| Mounting Hardware Included | No |
| Terminal Quantity | 6 |
| Connector Gender | Female |
| Terminal Gender | Male female |
| Connector Quantity | 2 |
| Connector Shape | Rectangular |
| Dust Shield Included | No |
| Harness Length - inches | 32 |
| Harness Length - mm | 812.8 |
| Mounting Location | Wheel |
| Mounting Type | Bolt mount |
| Number of Bolt Holes | 3 |
| Terminal Type | Blade + blade + pin |
| Fits | Hyundai and Kia · 11 vehicles |
Bolt-mount design. Three bolt holes secure the wheel-end sensor in the specified location.
Dual-connector layout. Rectangular connectors and six terminals support the listed electrical interface.
32-inch harness. Provides routing length for the wheel-mounted sensor application.
Cross-references Standard Ignition ALS3500, 58960S9300 and 533888 for the same application. See all 5.
ABS Wheel Speed Sensor Overview
Standard Ignition ALS3500 is an ABS wheel speed sensor built for rear right wheel applications with a bolt-mount design and a 32-inch harness. It uses a rectangular dual-connector layout with six terminals for a direct electrical interface.
Compatible With Hyundai Palisade and Kia Telluride applications, this sensor matches the fitment details listed for rear right installation. The ALS3500 part number is also referenced as ALS3500 for easy catalog matching.
Key Features
- Bolt-mount sensor with three bolt holes for secure wheel-end installation.
- 32-inch harness provides routing length for the specified wheel location.
- Rectangular connector design with female connector gender and male/female terminal configuration.
- Six-terminal, dual-connector construction for the listed ABS circuit layout.
- Fits rear right applications on select Hyundai Palisade and Kia Telluride models.
Detailed Description
Standard Ignition ALS3500 is an ABS wheel speed sensor for wheel-mounted rear right applications. It is specified with a bolt-mount design, rectangular connectors, and a 32-inch harness, giving it the physical layout needed for the listed Hyundai Palisade and Kia Telluride fitments. The ALS3500 part number should be matched carefully to the vehicle application and connector style before installation.
What It Helps Address
- ABS warning light caused by a failed wheel speed sensor.
- Erratic wheel speed signal input to the ABS control system.
- Loss of wheel speed data at the rear right wheel position.
- Connector or harness mismatch during sensor replacement.
Installation Notes and Tips
Verify the connector shape, terminal count, and harness length against the removed sensor before installation. This sensor mounts at the wheel with a bolt-mount design and does not include mounting hardware or a dust shield. Confirm the rear right fitment details for the specific vehicle and note that 2020-2025 Hyundai Palisade listings exclude Automated Parking Assist applications.
Quality Assurance
Standard Ignition ALS3500 is cataloged for direct application matching using the listed fitment and connector specifications. Cross-reference part numbers include 58960S9300 and 533888 for the same application.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2025 | Hyundai | Palisade | AWD | Rear Right | w/o Automated Parking Assist |
| 2024 | Hyundai | Palisade | AWD | Rear Right | w/o Automated Parking Assist |
| 2024 | Kia | Telluride | AWD | Rear Right | — |
| 2023 | Hyundai | Palisade | AWD | Rear Right | w/o Automated Parking Assist |
| 2023 | Kia | Telluride | AWD | Rear Right | — |
| 2022 | Hyundai | Palisade | AWD | Rear Right | w/o Automated Parking Assist |
| 2022 | Kia | Telluride | AWD | Rear Right | — |
| 2021 | Hyundai | Palisade | AWD | Rear Right | w/o Automated Parking Assist |
| 2021 | Kia | Telluride | AWD | Rear Right | — |
| 2020 | Hyundai | Palisade | AWD | Rear Right | w/o Automated Parking Assist |
| 2020 | Kia | Telluride | AWD | Rear Right | — |
