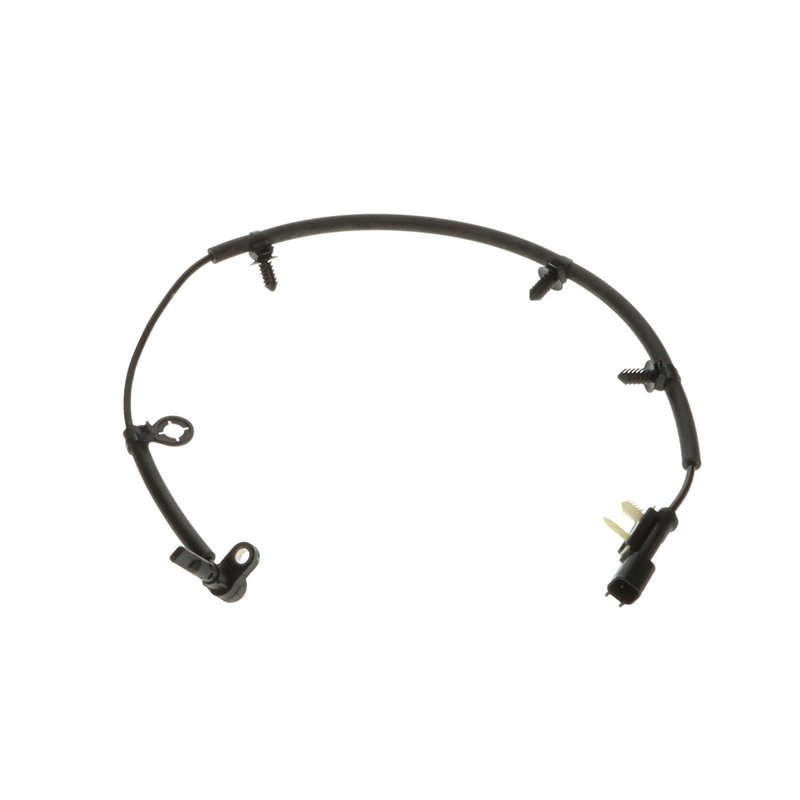

Standard Ignition ALS3636 ABS Wheel Speed Sensor - Rear
| Brand | Standard Ignition ALS3636 |
|---|---|
| Position | Rear |
| Mounting Hardware Included | No |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Attachment Method | Direct, snap fit |
| Color/Finish | Black |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Dust Shield Included | No |
| Hardware Included | No |
| Harness Length - inches | 23.5 |
| Harness Length - mm | 596.9 |
| Mounting Bracket(s) Included | Yes |
| Mounting Hole Quantity | 2 |
| Mounting Location | Spindle |
| Mounting Type | Bolt mount |
| Number of Bolt Holes | 1 |
| Terminal Type | Blade |
| Wiring Harness Included | Yes |
| Fits | Chevrolet and GMC · 8 vehicles |
Direct, snap-fit design. Makes installation straightforward with a secure bolt-mount attachment.
Wiring harness included. Comes ready with a 23.5-inch harness and one connector.
Mounting bracket included. Provides the bracket needed for a complete sensor installation.
Cross-references 534024, 23376171 and ABS3636 for the same application. See all 4.
Rear ABS Wheel Speed Sensor for Equinox and Terrain
Standard Ignition ALS3636 is a rear ABS wheel speed sensor built for direct, snap-fit installation at the spindle. It includes a wiring harness and mounting bracket, with a black finish and a square female connector for a clean OE-style connection.
- Fits 2022-2024 Chevrolet Equinox, rear
- Fits 2022-2024 GMC Terrain, rear
- Fits 2018-2019 GMC Terrain, rear
- Direct, snap-fit attachment method
- 23.5-inch harness length for rear spindle routing
- 2-terminal blade connection with 1 square female connector
- Mounting bracket included for spindle mounting
Product Details
Standard Ignition ALS3636 is an ABS wheel speed sensor for rear applications on Chevrolet Equinox and GMC Terrain models listed above. It is configured for spindle mounting with a bolt-mount design, one bolt hole, and two mounting holes, helping match the original sensor layout. The included wiring harness and bracket support a straightforward replacement where the factory sensor has failed or the ABS warning system has stored a wheel speed fault. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- ABS warning light caused by a failed rear wheel speed sensor
- Wheel speed signal loss at the rear axle
- Traction control or stability control fault codes related to wheel speed input
- Intermittent ABS operation from damaged sensor wiring
- Incorrect rear wheel speed readings on Equinox or Terrain models
Installation Notes and Tips
Verify rear fitment before installation on 2022-2024 Chevrolet Equinox and 2018-2019, 2022-2024 GMC Terrain applications. Inspect the spindle mounting area, connector condition, and harness routing before securing the sensor. Confirm the square connector, 2-terminal blade interface, and harness length match the original setup before clearing ABS codes after installation.
Quality Assurance
Standard Ignition ALS3636 is built to match the specified mounting style, connector layout, and harness configuration for the listed rear applications. Standard Ignition is a recognized aftermarket brand for electrical and sensor components used in vehicle repair.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Chevrolet | Equinox | 4WD | Rear | — |
| 2024 | GMC | Terrain | 4WD | Rear | — |
| 2023 | Chevrolet | Equinox | 4WD | Rear | — |
| 2023 | GMC | Terrain | 4WD | Rear | — |
| 2022 | Chevrolet | Equinox | 4WD | Rear | — |
| 2022 | GMC | Terrain | 4WD | Rear | — |
| 2019 | GMC | Terrain | 4WD | Rear | — |
| 2018 | GMC | Terrain | 4WD | Rear | — |
