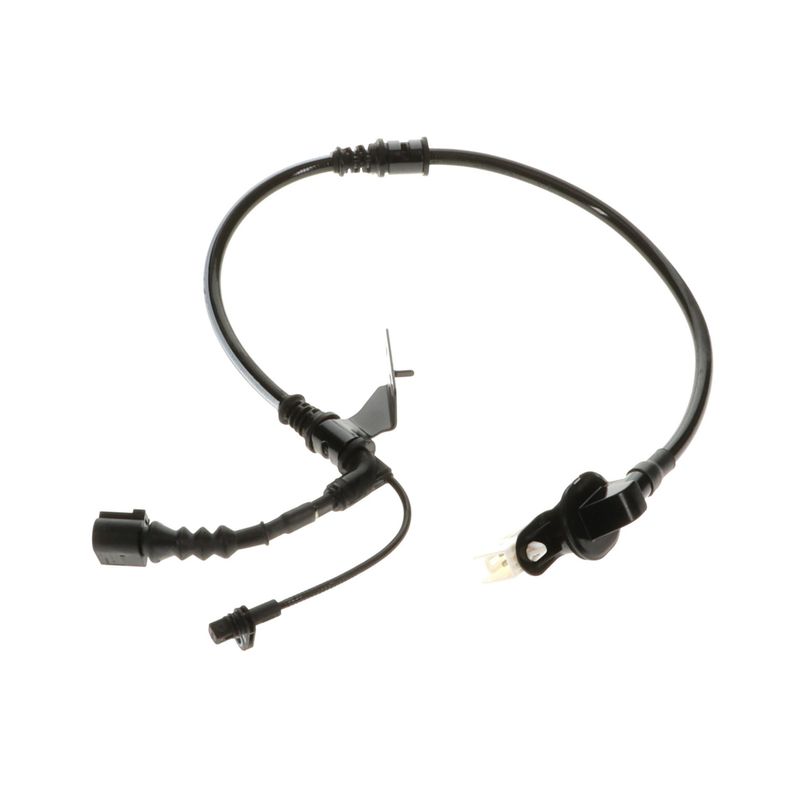

Standard Ignition ALS3765 ABS Wheel Speed Sensor - Rear Right
| Brand | Standard Ignition ALS3765 |
|---|---|
| Position | Rear Right |
| Mounting Hardware Included | No |
| Terminal Quantity | 6 |
| Connector Gender | Female |
| Terminal Gender | Male female |
| Attachment Method | Bolt mount |
| Color/Finish | Black; white |
| Connector Quantity | 2 |
| Connector Shape | Rectangle, oval |
| Dust Shield Included | No |
| Hardware Included | Bracket |
| Harness Length - inches | 31.75 |
| Harness Length - mm | 806.45 |
| Mounting Bracket(s) Included | Yes |
| Mounting Hole Quantity | 3 |
| Mounting Location | Spindle |
| Mounting Type | Bolt mount |
| Number of Bolt Holes | 3 |
| Terminal Type | Blade |
| Wiring Harness Included | Yes |
| Fits | Mazda · 6 vehicles |
Bolt-mount design. Includes a wiring harness and mounting bracket for service replacement.
Service-ready connectors. Features two connectors, six terminals, and blade-style terminals.
Standard Ignition ALS3765. Cross-references 534153 and ABS3765 for the same application.
Cross-references Standard Ignition ALS3765, 534153 and ABS3765 for the same application. See all 5.
Overview
Standard Ignition ALS3765 is an ABS wheel speed sensor for the rear right position on compatible Mazda CX-5 applications. It uses a bolt-mount design with an included wiring harness and mounting bracket for a direct service replacement.
Key Features
- Bolt-mount ABS wheel speed sensor with a 31.75-inch harness.
- Includes a mounting bracket and wiring harness for service replacement.
- Features two connectors with a black and white finish.
- Six terminals with blade-style terminal design.
- Compatible with 2016-2021 Mazda CX-5 rear right applications.
Detailed Description
ALS3765 is built for the rear right wheel speed sensing circuit on Mazda CX-5 models from 2016 through 2021. The sensor uses a spindle mounting location, three mounting holes, and a bolt-mount attachment method to match the original service layout. Standard Ignition ALS3765 also cross-references part numbers 534153 and ABS3765 for the same application.
For buyers searching for a Mazda CX-5 rear wheel speed sensor, this part provides the connector style, harness length, and bracketed mounting arrangement needed for a straightforward replacement. Standard Ignition ALS3765 is a practical choice when restoring ABS signal input on the rear right side of the vehicle.
Common Issues It May Solve
- ABS warning light caused by a failed wheel speed sensor.
- Loss of wheel speed signal at the rear right wheel.
- Fault codes related to the ABS sensing circuit.
- Intermittent braking system communication from a damaged sensor harness.
Installation Notes
Verify connector shape, terminal count, and mounting location before installation. This sensor mounts at the spindle with a bolt-on design and uses the included bracket and wiring harness. Confirm fitment against the vehicle application and inspect the surrounding tone ring or hub area during service.
Quality Assurance
Standard Ignition ALS3765 is engineered as a service replacement ABS wheel speed sensor for the listed Mazda CX-5 applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2021 | Mazda | CX-5 | FWD | Rear Right | — |
| 2020 | Mazda | CX-5 | FWD | Rear Right | — |
| 2019 | Mazda | CX-5 | FWD | Rear Right | — |
| 2018 | Mazda | CX-5 | FWD | Rear Right | — |
| 2017 | Mazda | CX-5 | FWD | Rear Right | — |
| 2016 | Mazda | CX-5 | FWD | Rear Right | — |
| No rows match your filter. | |||||
