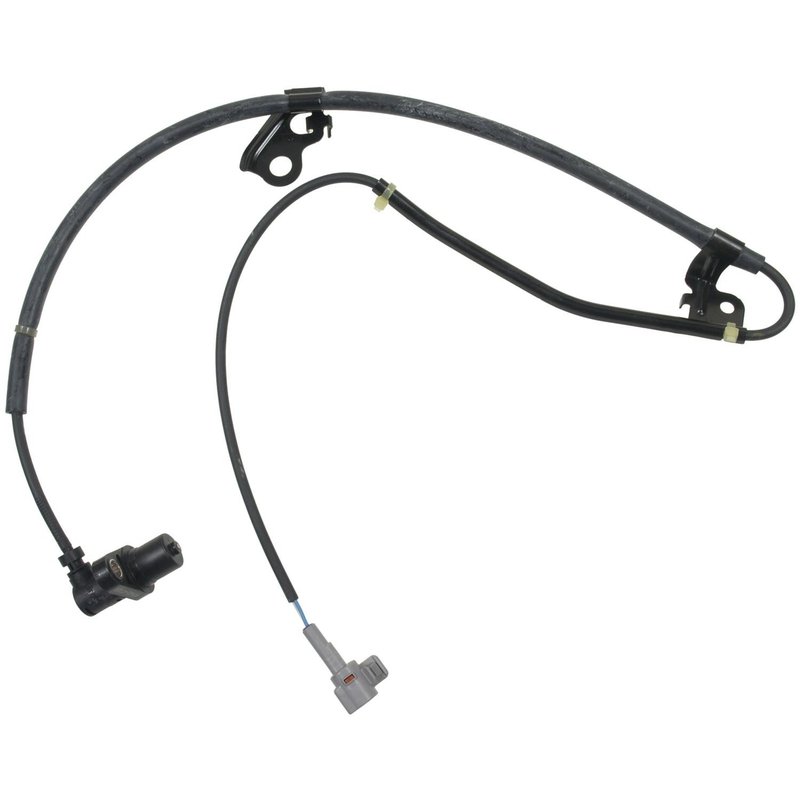

Standard Ignition ALS776 ABS Wheel Speed Sensor - Front Right

ABS Wheel Speed Sensor for Prius Front Right

Standard Ignition ALS776 is an ABS wheel speed sensor for the front right position on select 2004-2008 Toyota Prius models. It uses a bolt-mount design with an included wiring harness and mounting bracket for a direct replacement-style repair.

Key Features

• Fits 2004-2008 Toyota Prius, front right
• ABS wheel speed sensor for brake system signal monitoring
• Bolt-mount attachment with 3 mounting holes
• Includes wiring harness with 37-inch (940 mm) length
• 1 oval connector with female connector gender and male blade terminals
• Black and white finish
• Mounting bracket(s) included
• Standard Ignition ALS776 replacement part

Detailed Description

Standard Ignition ALS776 is an ABS wheel speed sensor built for the front right spindle location on the Toyota Prius. It is used to read wheel speed data for the anti-lock brake system, helping the vehicle’s control modules monitor wheel rotation during braking. The sensor features a bolt-mount design, a 3-hole mounting pattern, and an included harness to match the original routing and connection style on the application.

This part cross-references Beck/Arnley 084-4441 for the same application. If you are searching for a Toyota Prius front right ABS sensor, Toyota Prius wheel speed sensor replacement, or Standard Ignition ALS776, this part matches the listed fitment for 2004-2008 Prius models.

What It Is Used For

• Restoring ABS wheel speed signal output at the front right wheel
• Addressing ABS warning light concerns related to sensor failure
• Replacing a damaged or corroded wheel speed sensor harness
• Correcting intermittent brake system speed readings
• Repairing fitment issues at the spindle-mounted sensor location

Installation Notes and Tips

Verify the front right spindle mounting location before installation and compare the connector shape, terminal style, and harness routing to the original part. Clean the mounting surface and inspect the tone ring, wheel bearing area, and nearby wiring for damage before installing the new sensor. Standard Ignition ALS776 uses a bolt-mount design and includes a mounting bracket, but mounting hardware is not listed as included.

Quality Assurance

Standard Ignition supplies replacement electrical and brake system components for service applications. ALS776 is built to match the listed connector, harness, and mounting specifications for the confirmed Toyota Prius fitment.
