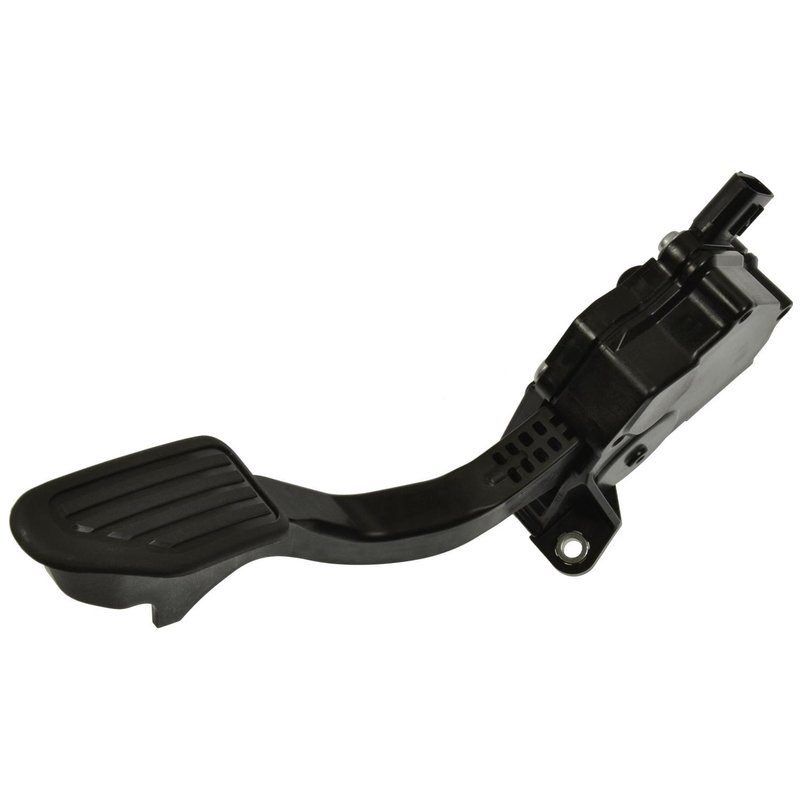

Standard Ignition APS532 Accelerator Pedal Sensor

Standard Ignition APS532 Accelerator Pedal Sensor

Standard Ignition APS532 is a new accelerator pedal sensor assembly built for direct mounting at the accelerator pedal. It uses a bolt-on attachment method, a rectangular female plug-in connector, and a 6-pin male terminal layout for a clean electrical connection. This accelerator pedal sensor fits select Toyota Prius C and Toyota Yaris applications, including 2012-2019 Toyota Prius C and 2012-2013 Toyota Yaris.

Key Features

• Brand: Standard Ignition
• Part number: APS532
• Accelerator pedal sensor with pedal assembly included
• Bolt-on attachment method for accelerator pedal mounting
• Rectangular female connector with 1 connector and 6 male pin terminals
• Black finish with polyamide 6 construction
• New replacement part
• Mounts at the accelerator pedal

Product Details

APS532 is an accelerator pedal sensor assembly designed for vehicles that use an integrated pedal-mounted sensor setup. The unit is specified with no linkage attached and no mounting brackets included, which helps keep the replacement focused on the pedal sensor assembly itself. For shoppers searching for a Toyota Prius C accelerator pedal sensor or a Toyota Yaris accelerator pedal sensor, APS532 provides a direct-fit service part reference for the listed applications. This part cross-references 2-80432 and PPS1432 for the same application.

What It Helps Address

• Throttle response issues caused by a worn accelerator pedal sensor
• Intermittent pedal signal output
• Electronic accelerator input faults
• Driveability concerns related to pedal position sensing
• Replacement needs after sensor or pedal assembly wear

Installation Notes

Install APS532 at the accelerator pedal using the bolt-on mounting style and verify the connector shape, terminal count, and plug-in orientation before installation. Confirm vehicle application by year and model: Fits 2012-2019 Toyota Prius C, N/A; Fits 2012-2013 Toyota Yaris, N/A; Fits 2014 Toyota Yaris, N/A, Made in Japan. Always compare the original sensor and connector configuration to the replacement part number APS532 before final assembly.

Quality Assurance

Standard Ignition supplies this part as a new replacement accelerator pedal sensor assembly. The polyamide 6 housing, integrated pedal assembly, and OE-style connector layout support consistent fitment for the listed Toyota Prius C and Toyota Yaris applications.
