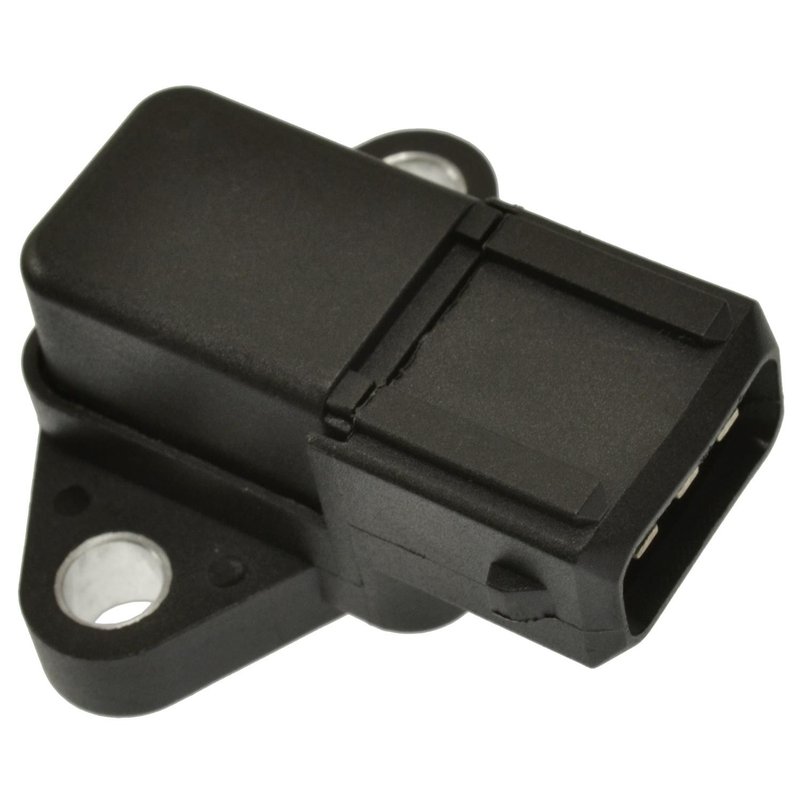

Standard Ignition AS167 Fuel Tank Pressure Sensor

Fuel Tank Pressure Sensor for Mitsubishi Applications

Standard Ignition AS167 is a fuel tank pressure sensor used in evaporative emissions monitoring. It is built with a black finish, a rectangular plug-in connector, and a 3-blade male terminal layout for direct electrical connection.

Compatible With Mitsubishi Montero Sport, Eclipse, Galant, Mirage, 3000GT, and Montero applications, this sensor supports accurate vapor pressure signal reporting for the EVAP system. The AS167 part number is also commonly searched for replacement matching on these Mitsubishi platforms.

Key Features

• Fuel tank pressure sensor for air and fuel delivery system service
• Black housing with one rectangular female connector
• Plug-in connector design for straightforward electrical connection
• Three male blade terminals for the specified circuit layout
• Mounting bracket included for secure installation
• Single-port sensor configuration
• Cross-reference part numbers include Dayco 72749 and Walker Products 225-1092

Detailed Description

Standard Ignition AS167 is a replacement fuel tank pressure sensor for evaporative emissions monitoring on select Mitsubishi vehicles. It is listed for 1995-2001 Mitsubishi Galant, 1997-2001 Mitsubishi Mirage, and 1997-1999 Mitsubishi 3000GT with vapor pressure applications, along with 1997-2004 Mitsubishi Montero Sport, 1998-2002 Mitsubishi Eclipse, and 1997-1999 Mitsubishi Montero. The AS167 sensor uses a female rectangular connector, male blade terminals, and a bracketed mount to match the specified OE-style configuration.

Common Uses

• Restoring EVAP system pressure signal accuracy
• Addressing fuel tank pressure sensor fault codes
• Correcting vapor pressure monitoring issues on Mitsubishi Galant, Mirage, and 3000GT models
• Replacing a damaged or electrically failed sensor connector interface
• Resolving emissions monitor concerns tied to tank pressure readings

Installation Notes

Verify connector shape, terminal count, and mounting style against the original sensor before installation. This part is listed without a wiring harness, mounting hardware, or O-rings, so reuse or source the required vehicle-specific components as needed. Confirm the application by year, make, model, and vapor pressure notes where shown for Mitsubishi Galant, Mirage, and 3000GT.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical and engine management components. AS167 is built to match the listed sensor configuration for the specified Mitsubishi applications and cross-reference numbers.
