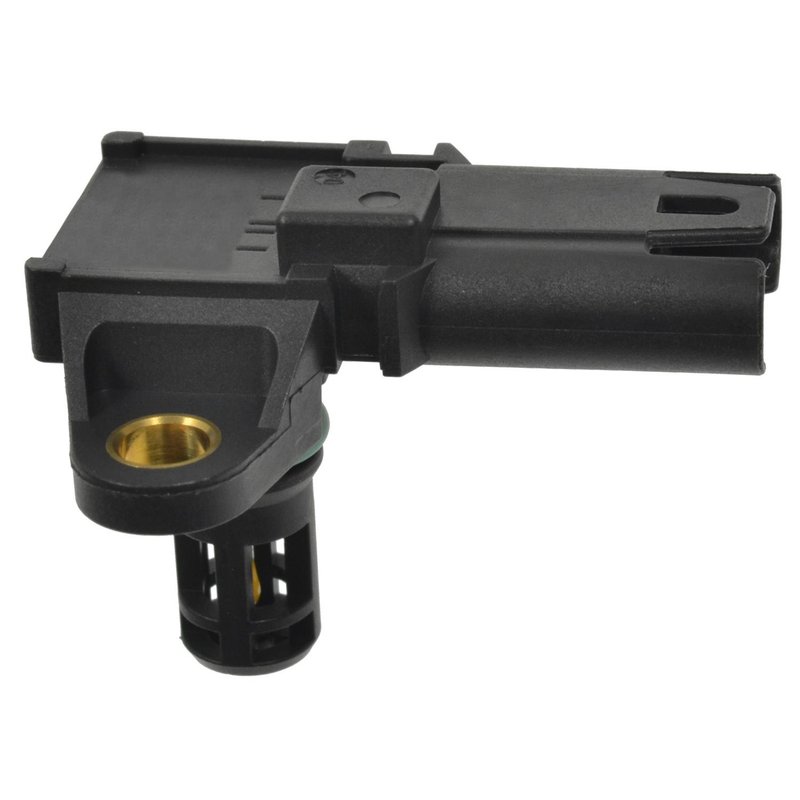

Standard Ignition AS460 Manifold Absolute Pressure Sensor

Standard Ignition AS460 Manifold Absolute Pressure Sensor

Standard Ignition AS460 is a manifold absolute pressure sensor for select BMW turbo applications. It is built with a 4-terminal layout, a single plug-in connector, and an included O-ring for a secure seal at the intercooler piping location.

Key Features

• Manifold Absolute Pressure Sensor for emission control and engine management systems
• 4 terminals with male blade terminals and a female connector
• Round and rectangular connector shape with plug-in connection
• Black finish with 1 vacuum port
• O-ring included; hardware, mounting brackets, and wiring harness not included
• Cross-reference part numbers include 2-27179 and 13627585494

Product Details

The Standard Ignition AS460 MAP sensor monitors intake pressure so the engine control system can manage fueling and boost-related calculations accurately. This part is listed for 2010-2014 BMW X6 and 2010-2013 BMW X5 applications, with the sensor located on the intercooler piping. If you are searching for a BMW X5 MAP sensor or a BMW X6 manifold absolute pressure sensor, AS460 is the direct fitment reference to check.

Standard Ignition AS460 also cross-references SU13536 for the same application. Use the part number AS460 when verifying replacement needs for BMW X5 and BMW X6 turbocharged intake pressure sensing service.

What It Helps Address

• Incorrect manifold pressure readings
• Check engine light concerns related to MAP sensor performance
• Driveability issues tied to boost or load calculation errors
• Rough idle or hesitation caused by inaccurate intake pressure input
• Replacement needs for a damaged sensor on intercooler piping

Installation Notes and Tips

Install the sensor at the intercooler piping location specified for the vehicle application. Confirm the connector style, terminal count, and O-ring condition before installation. Because hardware and a wiring harness are not included, reuse or source the required vehicle-specific components as needed. Verify the connector seats fully and the seal is clean before final assembly.

Quality Assurance

Standard Ignition replacement sensors are built for direct-fit service in emission control and engine management applications. Verify fitment by year, make, model, and location before ordering.
