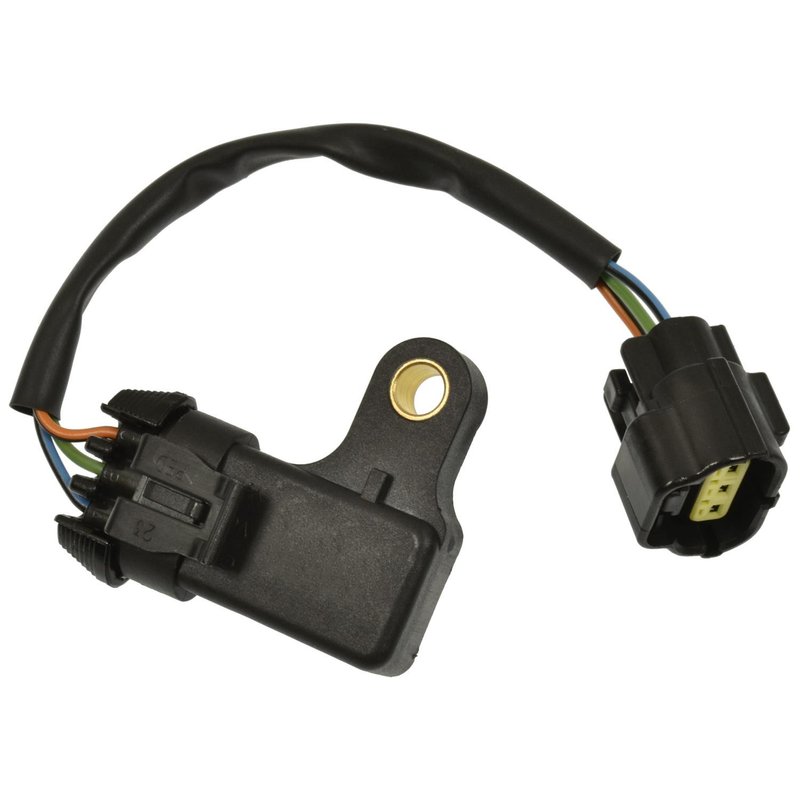

Standard Ignition AS625 Manifold Absolute Pressure Sensor

Overview of Standard Ignition AS625 Manifold Absolute Pressure Sensor

The Standard Ignition AS625 Manifold Absolute Pressure (MAP) Sensor is designed to provide accurate pressure readings essential for engine control systems. This sensor features a female plug-in connector and includes an o-ring for a secure seal, ensuring reliable performance in various vehicle applications.

• Connector Gender: Female
• Connector Quantity: 1
• Connector Type: Plug in
• Includes O-ring for proper sealing
• Terminal Gender: Male
• Terminal Quantity: 3
• Terminal Type: Blade

Detailed Product Description

The AS625 MAP sensor from Standard Ignition is engineered with a single female plug-in connector and three male blade terminals, providing a straightforward and secure electrical connection. The included o-ring helps maintain an airtight seal within the intake manifold, preventing vacuum leaks that could affect engine performance. This sensor is compatible with a range of vehicles, including popular makes and models such as Ford F-150, Chevrolet Silverado, and Dodge Ram, where precise manifold pressure measurement is critical for fuel management and emissions control.

Common Applications and Issues Addressed

• Helps regulate air-fuel mixture for optimal engine performance
• Prevents rough idling caused by incorrect manifold pressure readings
• Reduces engine stalling related to faulty MAP sensor signals
• Supports emission control systems by providing accurate pressure data
• Assists in improving fuel efficiency by monitoring intake manifold pressure

Installation Notes and Tips

When installing the Standard Ignition AS625 sensor, ensure the o-ring is properly seated to avoid vacuum leaks. Disconnect the battery before installation to prevent electrical shorts. The female plug-in connector should be securely attached to the vehicle’s wiring harness, and the three male blade terminals must align correctly with the corresponding connectors. It is recommended to verify sensor calibration after installation to confirm accurate readings.

Quality Assurance and Warranty

Standard Ignition manufactures the AS625 MAP sensor to meet or exceed OEM specifications, ensuring reliable operation and durability. The sensor undergoes rigorous testing for electrical and mechanical performance. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship to provide confidence in product quality.
