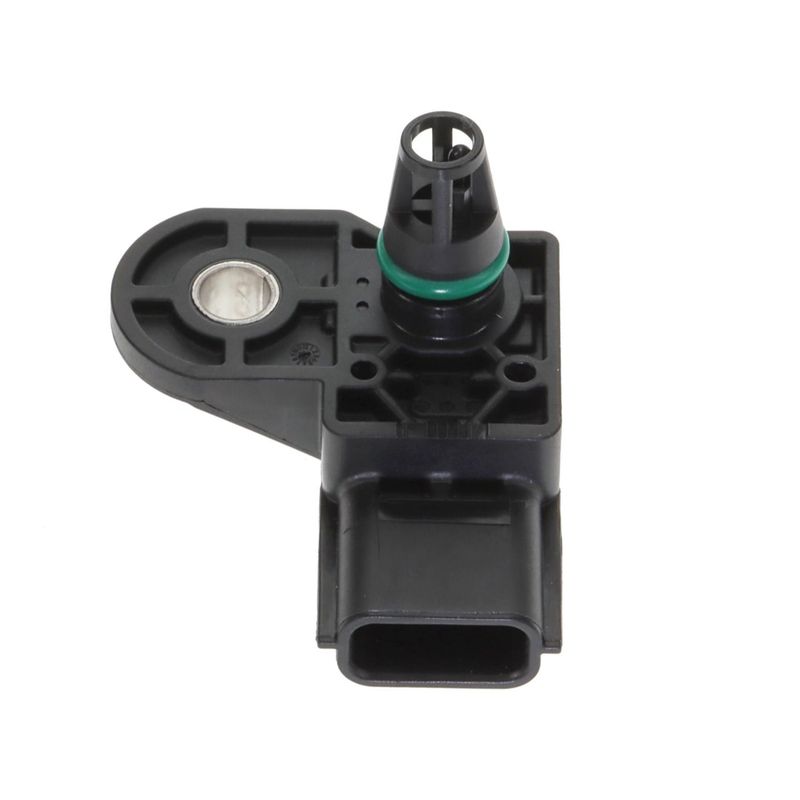

Standard Ignition AS739 Manifold Absolute Pressure Sensor
| Brand | Standard Ignition AS739 |
|---|---|
| Connector Gender | Female |
| Attachment Method | Plug in |
| Color/Finish | Black |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Connector Type | Plug |
| Hardware Included | No |
| Mounting Bracket(s) Included | No |
| Port Quantity | 1 |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Fits | Subaru · 19 vehicles |
Plug-in design. Simplifies installation with a single rectangular connector.
Manifold absolute pressure sensor. Measures intake manifold pressure for engine management.
Female connector. Uses a 4-pin male terminal layout for a secure connection.
Cross-references Standard Ignition AS739, 2-27474 and 22012AA250 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Manifold Absolute Pressure Sensor for Subaru Applications
Standard Ignition AS739 is a manifold absolute pressure sensor built for direct-fit service on select Subaru vehicles. It uses a plug-in attachment method, a rectangular single-connector design, and a 4-pin male terminal layout to support clean electrical connection at the intake manifold.
Compatible With 2019-2024 Subaru Ascent, 2020-2024 Subaru Legacy, 2020-2024 Subaru Outback, and 2022-2024 Subaru WRX. This Standard Ignition AS739 MAP sensor is a practical replacement for diagnosing and restoring manifold pressure signal accuracy on these applications.
Key Features
- Manifold Absolute Pressure Sensor for emission control and engine management systems
- Plug-in attachment method for straightforward installation on the intended application
- Female rectangular connector with 1 connector and 4 male pin terminals
- Black finish with 1 port configuration
- Direct-fit replacement for Subaru Ascent, Legacy, Outback, and WRX applications
- Standard Ignition AS739 part number for catalog matching and service lookup
Detailed Description
The AS739 measures intake manifold pressure so the engine control system can calculate load and adjust fueling and timing. Its single-port, plug-in design and rectangular connector layout support OE-style replacement on Subaru Ascent, Subaru Legacy, Subaru Outback, and Subaru WRX models from the listed years. Standard Ignition AS739 is also cross-referenced to 2-27474 and 22012AA250 for the same application.
What It Helps Address
- Erratic idle caused by inaccurate manifold pressure input
- Check engine light related to MAP sensor circuit or signal faults
- Hard starting or rough running tied to incorrect load calculation
- Reduced throttle response from faulty intake pressure readings
- Fuel trim issues caused by inconsistent sensor output
Installation Notes and Tips
Verify connector shape, terminal count, and port layout before installation. This sensor uses a plug-in mounting method and does not include hardware or mounting brackets. Confirm the vehicle application by year, make, and model before ordering, especially for Subaru Ascent, Legacy, Outback, and WRX fitments.
Quality Assurance
Standard Ignition supplies service parts for emission control and engine management applications, and AS739 is cataloged for the listed Subaru fitments to support accurate replacement selection.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2024 | Subaru | Ascent | 2.4L | H4 | — |
| 2024 | Subaru | Legacy | 2.4L | H4 | — |
| 2024 | Subaru | Outback | 2.4L | H4 | — |
| 2024 | Subaru | WRX | — | — | — |
| 2023 | Subaru | Ascent | 2.4L | H4 | — |
| 2023 | Subaru | Legacy | 2.4L | H4 | — |
| 2023 | Subaru | Outback | 2.4L | H4 | — |
| 2023 | Subaru | WRX | 2.4L | H4 | — |
| 2022 | Subaru | Ascent | 2.4L | H4 | — |
| 2022 | Subaru | Legacy | 2.4L | H4 | — |
| 2022 | Subaru | Outback | 2.4L | H4 | — |
| 2022 | Subaru | WRX | 2.4L | H4 | — |
| 2021 | Subaru | Ascent | 2.4L | H4 | — |
| 2021 | Subaru | Legacy | 2.4L | H4 | — |
| 2021 | Subaru | Outback | 2.4L | H4 | — |
| 2020 | Subaru | Ascent | 2.4L | H4 | — |
| 2020 | Subaru | Legacy | 2.4L | H4 | — |
| 2020 | Subaru | Outback | 2.4L | H4 | — |
| 2019 | Subaru | Ascent | 2.4L | H4 | — |
