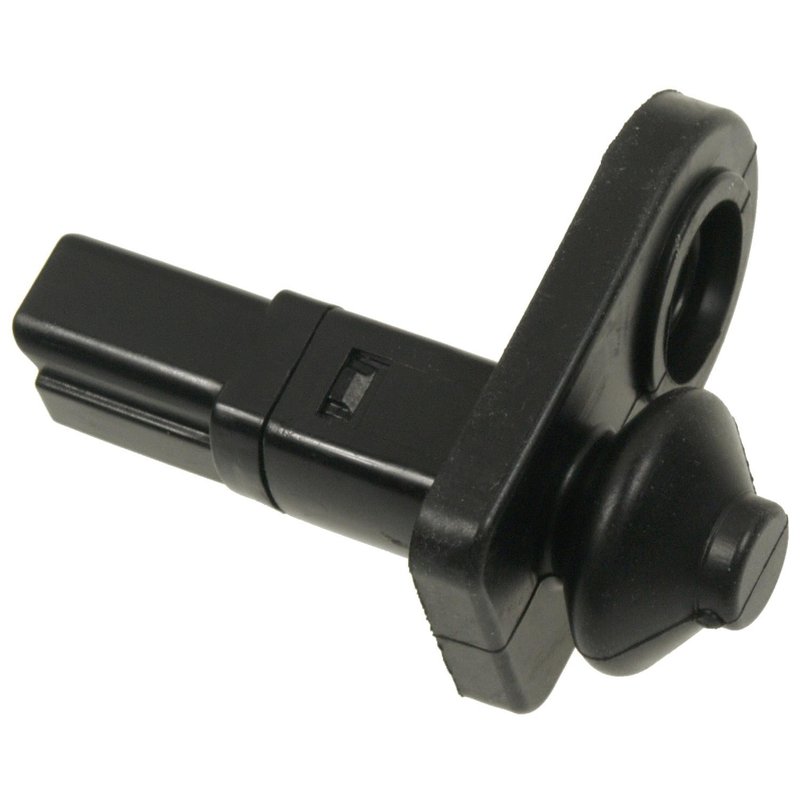

Standard Ignition AW-1005 Door Jamb Switch

Reliable Door Jamb Switch for Hyundai and Kia Vehicles

The Standard Ignition AW-1005 door jamb switch is designed to provide consistent performance for various Hyundai and Kia models. Engineered with durable materials and a direct mounting type, this switch ensures proper door function and electrical signaling.

• Activation Style: Normal
• Color/Finish: Black with brass, rubber, and plastic components
• Connector: Female, rectangular shape, single connector
• Terminals: Two male blade terminals
• Plunger Size: 0.52 inches (13.208 mm)
• Mounting Location: Doors with direct mounting
• Wiring Harness: Not included

Product Details and Specifications

The AW-1005 door jamb switch from Standard Ignition is constructed with a combination of plastic, brass, and rubber materials to withstand regular use and environmental factors. Its black finish complements the vehicle’s interior components. The switch features a normal activation style, meaning it operates under standard door open and close conditions. The rectangular female connector and two male blade terminals provide secure electrical connections without the need for additional wiring harnesses. Designed for direct mounting on vehicle doors, the plunger size of 0.52 inches ensures compatibility with the door frame mechanism.

Compatible Hyundai and Kia Models

This door jamb switch is compatible with a wide range of Hyundai and Kia vehicles, including but not limited to the Hyundai Accent, Elantra, Sonata, Santa Fe, Tucson, and Genesis models, as well as Kia Forte, Optima, Soul, Sorento, Sportage, and Rio. The part number AW-1005 is specifically suited for these models, ensuring proper fit and function.

Common Applications and Issues Addressed

• Restores door ajar warning light functionality
• Ensures interior dome light operates correctly when doors open or close
• Prevents battery drain caused by faulty door switches
• Resolves issues with door lock/unlock sensor signals
• Maintains proper electrical circuit continuity in door systems

Installation Notes and Tips

• Verify vehicle compatibility with the part number AW-1005 before installation
• Disconnect the battery prior to replacing the door jamb switch to avoid electrical shorts
• Ensure the switch is mounted directly on the door frame for accurate plunger activation
• Check connector orientation and secure the female rectangular connector firmly
• Test door ajar light and interior lighting after installation to confirm proper operation

Quality Assurance and Warranty

Standard Ignition manufactures the AW-1005 door jamb switch to meet OEM specifications for reliable performance. The switch undergoes quality control testing to ensure durability and electrical integrity. While specific warranty details may vary, Standard Ignition typically offers coverage against manufacturing defects. Consult product documentation or the vehicle service manual for warranty and installation guidance.
