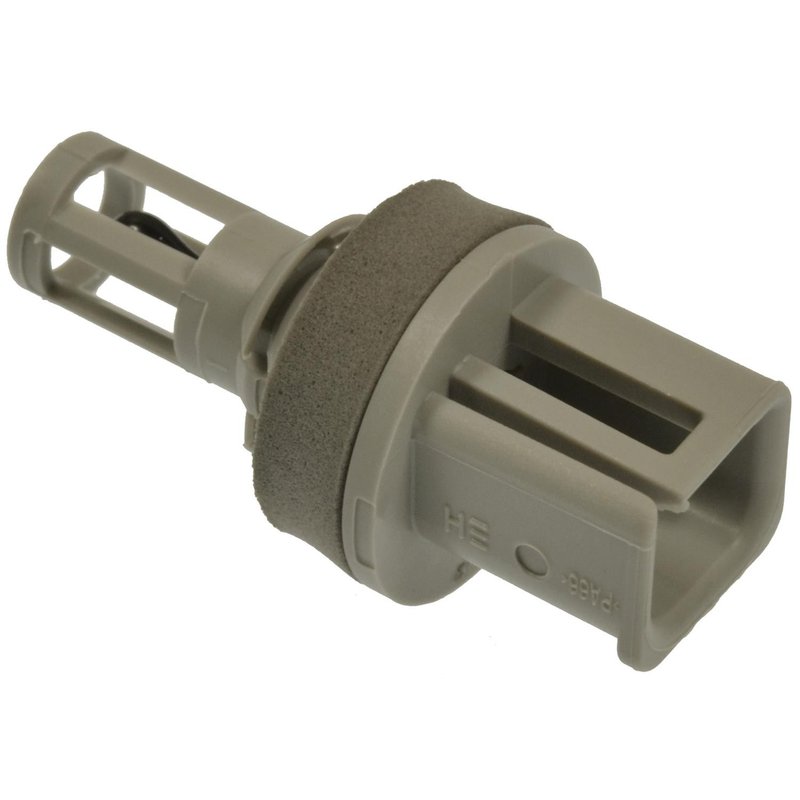

Standard Ignition AX463 HVAC Heater Core Temperature Sensor
| Brand | Standard Ignition AX463 |
|---|---|
| Connector Gender | Female |
| Connector Shape | Square |
| Connector Type | Plug In |
| Contents | Sensor |
| Terminal Gender | Male |
| Terminal Type | Pins |
| Fits | Chrysler and Jeep · 34 vehicles |
OE direct replacement. Ensures proper fit, form, and function for easier installation.
Plug-in connector. Square female connector with two male pin terminals.
Quality materials. Built to withstand extreme conditions for lasting durability.
Cross-references 68223056AA, ATSA183 and TS57590 for the same application. See all 4.
HVAC Heater Core Temperature Sensor for Ram and Jeep
Standard Ignition AX463 is a direct-fit HVAC heater core temperature sensor built for OE-style fit, form, and function. It is engineered for reliable temperature sensing in the heater core circuit and is made with durable materials for use in demanding underhood and cabin HVAC conditions.
Key Features
- Direct-fit OE replacement for straightforward installation
- Female square plug-in connector with male pin terminals
- Built with high-quality materials for long service life
- Tested for consistent operation and dependable performance
- Designed for HVAC temperature sensing in Ram and Jeep applications
Product Details
The Standard Ignition AX463 heater core temperature sensor is intended for vehicles that rely on accurate HVAC temperature feedback to manage cabin heat performance. Its OE-style connector design helps maintain proper electrical connection, while the sensor construction supports stable operation in extreme temperature environments. This part is a practical choice for Ram 1500, Ram 2500, Ram 3500, Jeep Cherokee, Jeep Grand Wagoneer, Jeep Wagoneer, and Chrysler 200 applications listed in the fitment data. This part cross-references ACDelco (e.g., TS57590) for the same application.
Common Issues This Sensor May Address
- Inconsistent heater output or uneven cabin temperature control
- HVAC temperature readings that do not match actual heater performance
- Fault codes related to heater core temperature sensing
- Delayed or erratic climate control response
- Electrical connection problems at the sensor interface
Installation Notes and Tips
Verify connector shape, terminal style, and vehicle application before installation. The AX463 uses a female square plug-in connector with two male pin terminals, so matching the original connector is important for proper fitment. For best results, inspect the harness and surrounding HVAC components for corrosion, damage, or contamination before installing the new sensor. Fits 2019-2024 Ram 2500, N/A. Fits 2019-2024 Ram 3500, N/A. Fits 2014-2023 Jeep Cherokee, N/A. Fits 2022-2023 Jeep Grand Wagoneer, N/A. Fits 2022-2023 Jeep Wagoneer, N/A. Fits 2019-2023 Ram 1500, N/A. Fits 2015-2017 Chrysler 200, N/A.
Quality Assurance
Standard Ignition manufactures this sensor with complete quality control throughout the production process. The part is tested to support reliable operation and consistent performance in HVAC service.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Ram | 2500 | — | — | — | N/A | — |
| 2024 | Ram | 3500 | — | — | — | N/A | — |
| 2023 | Jeep | Cherokee | — | — | — | N/A | — |
| 2023 | Jeep | Grand Wagoneer | 6.4L | V8 | — | N/A | — |
| 2023 | Jeep | Wagoneer | 5.7L | V8 | MILD HYBRID EV-GAS (MHEV) | N/A | — |
| 2023 | Ram | 1500 | — | — | — | N/A | — |
| 2023 | Ram | 2500 | — | — | — | N/A | — |
| 2023 | Ram | 3500 | — | — | — | N/A | — |
| 2022 | Jeep | Cherokee | — | — | — | N/A | — |
| 2022 | Jeep | Grand Wagoneer | 6.4L | V8 | — | N/A | — |
| 2022 | Jeep | Wagoneer | 5.7L | V8 | MILD HYBRID EV-GAS (MHEV) | N/A | — |
| 2022 | Ram | 1500 | — | — | — | N/A | — |
| 2022 | Ram | 2500 | — | — | — | N/A | — |
| 2022 | Ram | 3500 | — | — | — | N/A | — |
| 2021 | Jeep | Cherokee | — | — | — | N/A | — |
| 2021 | Ram | 1500 | — | — | — | N/A | — |
| 2021 | Ram | 2500 | — | — | — | N/A | — |
| 2021 | Ram | 3500 | — | — | — | N/A | — |
| 2020 | Jeep | Cherokee | — | — | — | N/A | — |
| 2020 | Ram | 1500 | — | — | — | N/A | — |
| 2020 | Ram | 2500 | — | — | — | N/A | — |
| 2020 | Ram | 3500 | — | — | — | N/A | — |
| 2019 | Jeep | Cherokee | — | — | — | N/A | — |
| 2019 | Ram | 1500 | — | — | — | N/A | — |
| 2019 | Ram | 2500 | — | — | — | N/A | — |
| 2019 | Ram | 3500 | — | — | — | N/A | — |
| 2018 | Jeep | Cherokee | — | — | — | N/A | — |
| 2017 | Chrysler | 200 | — | — | — | N/A | — |
| 2017 | Jeep | Cherokee | — | — | — | N/A | — |
| 2016 | Chrysler | 200 | — | — | — | N/A | — |
| 2016 | Jeep | Cherokee | — | — | — | N/A | — |
| 2015 | Chrysler | 200 | — | — | — | N/A | — |
| 2015 | Jeep | Cherokee | — | — | — | N/A | — |
| 2014 | Jeep | Cherokee | — | — | — | N/A | — |
