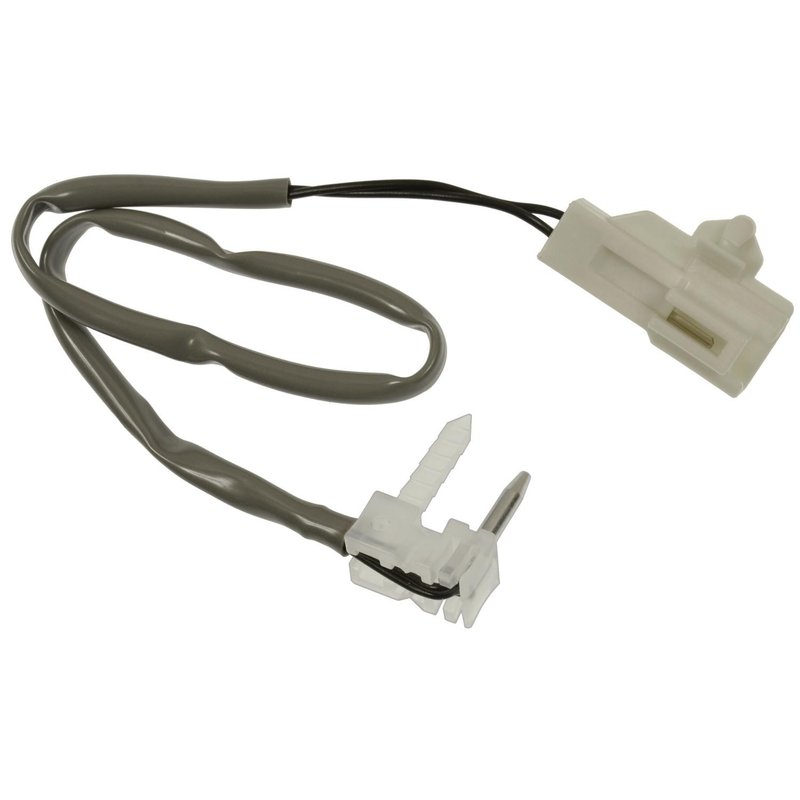

Standard Ignition AX476 HVAC Heater Core Temperature Sensor
| Brand | Standard Ignition AX476 |
|---|---|
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Connector Type | Plug in |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Fits | Hyundai · 6 vehicles |
Plug-in connector. Female rectangular connector with blade terminals for a secure HVAC sensor connection.
Single-sensor design. One connector and two blade terminals keep the layout simple.
HVAC sensor. Measures heater core temperature for precise climate control feedback.
Cross-references Standard Ignition AX476, 97614C2000 and ATSA364 for the same application. See all 5.
HVAC Heater Core Temperature Sensor for Sonata
Standard Ignition AX476 is an HVAC heater core temperature sensor built for direct replacement service on select Hyundai Sonata models. It uses a female plug-in connector with a rectangular shape and male blade terminals for a straightforward electrical connection.
Key Features
- HVAC heater core temperature sensor for climate control temperature monitoring
- Female connector with rectangular plug-in design
- Male blade terminals for secure circuit contact
- Connector and terminal layout matched for service replacement
- Fits 2014-2019 Hyundai Sonata applications
Product Details
This Standard Ignition AX476 sensor is specified for HVAC heater core temperature sensing in 2014-2019 Hyundai Sonata vehicles. The connector design includes one female rectangular plug-in connector and two male blade terminals, which helps support a clean electrical interface during replacement. For shoppers searching for a Hyundai Sonata heater core temperature sensor or AX476 HVAC sensor, this part provides a direct-fit service option for the listed application.
This part cross-references OE-style numbers such as 97614C2000 and ATSA364 for the same application.
Common Issues It May Address
- Inaccurate heater core temperature readings
- HVAC temperature control faults
- Intermittent climate control sensor signals
- Replacement of a damaged or worn sensor connector interface
- Service repair for Hyundai Sonata HVAC temperature monitoring
Installation Notes
Verify the connector shape, terminal style, and vehicle application before installation. Match the part number AX476 to the existing sensor location and confirm the harness connection is clean and fully seated. For 2014-2019 Hyundai Sonata service, compare the original sensor connector and terminal layout to ensure proper fitment.
Quality Assurance
Standard Ignition is a recognized aftermarket brand for electrical and engine management components. AX476 is built to match the listed connector and terminal specifications for the stated Hyundai Sonata fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Hyundai | Sonata | N/A | — |
| 2018 | Hyundai | Sonata | N/A | — |
| 2017 | Hyundai | Sonata | N/A | — |
| 2016 | Hyundai | Sonata | N/A | — |
| 2015 | Hyundai | Sonata | N/A | — |
| 2014 | Hyundai | Sonata | N/A | — |
