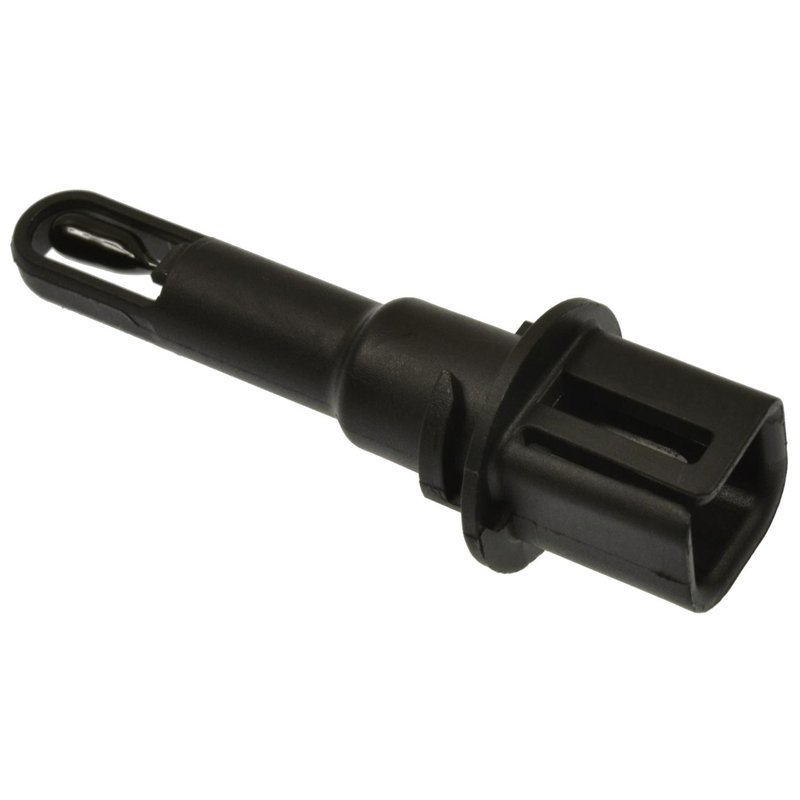

Standard Ignition AX485 HVAC Heater Core Temperature Sensor
| Brand | Standard Ignition AX485 |
|---|---|
| Connector Gender | Female |
| Connector Shape | Square |
| Connector Type | Plug In |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Fits | Chrysler and Dodge · 17 vehicles |
Direct-fit OE replacement. Ensures proper fit, form, and function for easier installation.
Plug-in connector. Square female connector with two blade terminals.
Quality-controlled manufacturing. Extensive testing helps ensure reliability and peak performance.
Cross-references 68163703AA, ATSA209 and TS57612 for the same application. See all 4.
HVAC Heater Core Temperature Sensor for Chrysler and Dodge
Standard Ignition AX485 is a direct-fit HVAC heater core temperature sensor built for accurate temperature monitoring in the heating and air conditioning system. It is engineered for Chrysler Pacifica, Chrysler Voyager, and Dodge Dart applications, with OE-style fitment that supports straightforward replacement.
- Direct-fit OE replacement for proper fit, form, and function
- Female connector with square plug-in design
- 2 male blade terminals for secure electrical connection
- Built with high-quality materials for durability in demanding conditions
- Extensively tested for reliability and consistent performance
- Standard Ignition AX485 for HVAC temperature sensing service
Application Details
Compatible With 2017-2024 Chrysler Pacifica, N/A; 2020-2024 Chrysler Voyager, N/A; and 2013-2016 Dodge Dart, N/A. This part cross-references OE-style numbers such as 68163703AA and TS57612 for the same application. If you are replacing a Chrysler Pacifica heater core temperature sensor or servicing a Dodge Dart HVAC temperature sensor circuit, AX485 provides the correct connector layout and terminal style for the listed vehicles.
What It Helps Resolve
- Incorrect cabin temperature readings
- HVAC temperature control response issues
- Faults related to heater core temperature sensing
- Intermittent sensor signal concerns at the connector
- Replacement needs after sensor wear or electrical degradation
Installation Notes
Verify the connector shape, terminal type, and vehicle application before installation. Standard Ignition AX485 uses a female square plug-in connector with two male blade terminals, so matching the existing harness connection is important for proper installation. Confirm the part number against the vehicle service information for Chrysler Pacifica, Chrysler Voyager, or Dodge Dart HVAC repair work.
Quality Assurance
Standard Ignition manufactures this sensor as an OE replacement and tests it for reliability and performance. The part is produced under controlled quality processes to help maintain consistent fit and function across the listed applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Chrysler | Pacifica | 3.6L | V6 | N/A | — |
| 2024 | Chrysler | Voyager | 3.6L | V6 | N/A | — |
| 2023 | Chrysler | Pacifica | 3.6L | V6 | N/A | — |
| 2023 | Chrysler | Voyager | 3.6L | V6 | N/A | — |
| 2022 | Chrysler | Pacifica | — | — | N/A | — |
| 2022 | Chrysler | Voyager | 3.6L | V6 | N/A | — |
| 2021 | Chrysler | Pacifica | — | — | N/A | — |
| 2021 | Chrysler | Voyager | 3.6L | V6 | N/A | — |
| 2020 | Chrysler | Pacifica | — | — | N/A | — |
| 2020 | Chrysler | Voyager | 3.6L | V6 | N/A | — |
| 2019 | Chrysler | Pacifica | — | — | N/A | — |
| 2018 | Chrysler | Pacifica | — | — | N/A | — |
| 2017 | Chrysler | Pacifica | — | — | N/A | — |
| 2016 | Dodge | Dart | — | — | N/A | — |
| 2015 | Dodge | Dart | — | — | N/A | — |
| 2014 | Dodge | Dart | — | — | N/A | — |
| 2013 | Dodge | Dart | — | — | N/A | — |
