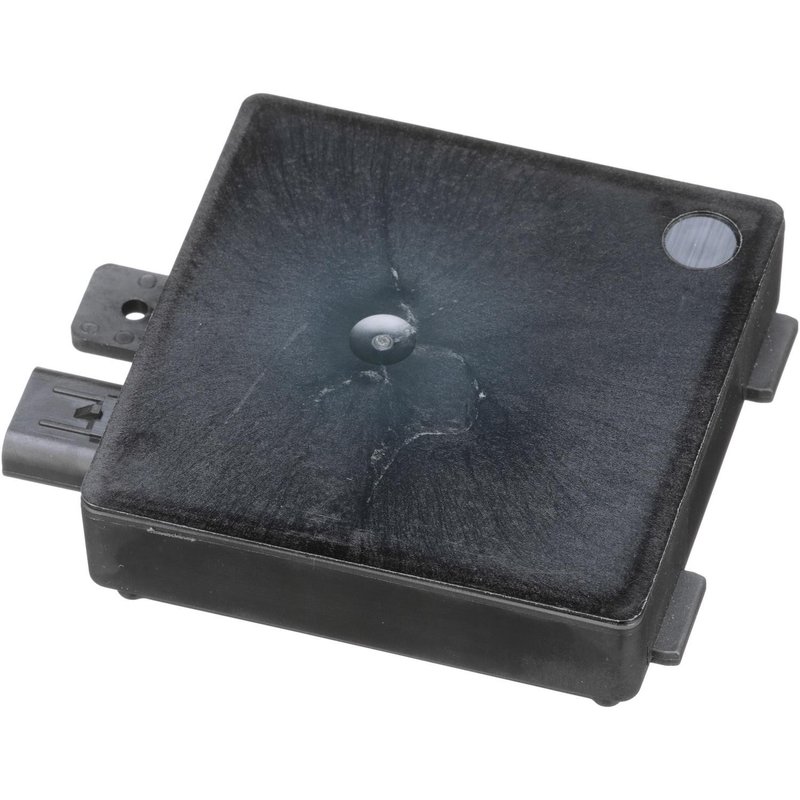

Standard Ignition BSD132 Blind Spot Detection System Warning Sensor - Left
| Brand | Standard Ignition BSD132 |
|---|---|
| Position | Left |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Type | Plug in |
| Terminal Gender | Male |
| Terminal Quantity | 6 |
| Terminal Type | Pin |
| Fits | Ford and Lincoln · 7 vehicles |
Plug-in connector. Simple sensor connection with a single female plug.
Pin terminals. Six-pin design for a secure electrical interface.
Blind spot sensor. Monitors surrounding traffic for warning system alerts.
Cross-references 861-120, BDSB10020 and BSN132 for the same application. See all 5.
Blind Spot Sensor for Ford and Lincoln
Standard Ignition BSD132 is a blind spot detection system warning sensor built for vehicles equipped with blind spot monitoring. It uses a female plug-in connector with a 6-pin male terminal interface for direct replacement of the original sensor connection. This part number is used in select Ford Explorer, Ford Edge, and Lincoln MKX applications.
Key Features
- Blind spot detection system warning sensor for rear monitoring systems
- Female connector with plug-in design for OE-style electrical connection
- 6-pin male terminal layout for proper sensor interface
- Direct-fit replacement for select Ford and Lincoln applications
- Standard Ignition BSD132 for service and repair work
Detailed Description
Standard Ignition BSD132 is a body sensor used in blind spot detection systems to help restore warning functionality when the original sensor fails. It is listed for 2011-2012 Ford Edge, left; 2011-2012 Ford Explorer, N/A; 2011-2012 Lincoln MKX, left; and 2013 Ford Explorer, N/A, to 9/4/12. This part cross-references 861-120 for the same application. If you are replacing a failed blind spot warning sensor on a Ford Explorer, Ford Edge, or Lincoln MKX, BSD132 provides the correct connector and terminal configuration for the listed vehicles.
Common Issues This Part May Resolve
- Blind spot warning light or alert not functioning
- Fault codes related to the blind spot detection system
- Intermittent side radar sensor communication
- Loss of blind spot monitoring coverage on the listed vehicle applications
- Sensor replacement after collision repair or electrical failure
Installation Notes and Tips
Verify the vehicle year, model, and position before ordering, since BSD132 is listed for specific left-side and N/A applications only. Confirm connector style, terminal count, and sensor location against the original part before installation. After replacement, follow the vehicle manufacturer’s calibration or system relearn procedure if required for the blind spot monitoring system.
Quality Assurance
Standard Ignition supplies replacement electrical and body components for service applications, and BSD132 is built to match the listed OE-style fitment and connector configuration for the specified Ford and Lincoln vehicles.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Ford | Explorer | N/A | To 9/4/12 |
| 2012 | Ford | Edge | Left | — |
| 2012 | Ford | Explorer | N/A | — |
| 2012 | Lincoln | MKX | Left | — |
| 2011 | Ford | Edge | Left | — |
| 2011 | Ford | Explorer | N/A | — |
| 2011 | Lincoln | MKX | Left | — |
