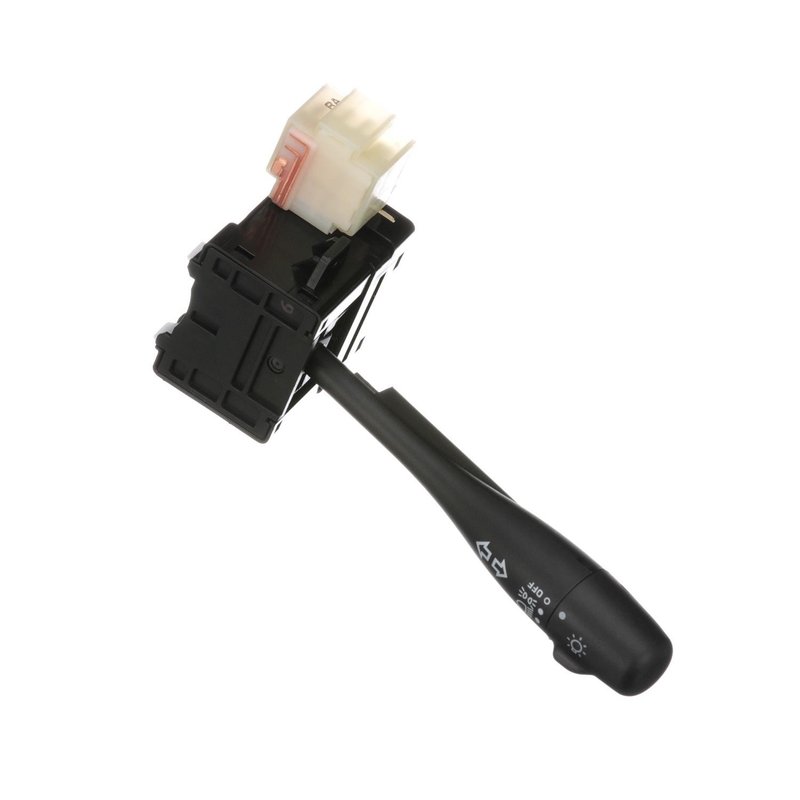

Standard Ignition CBS-1000 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1000 |
|---|---|
| Attachment Method | Snap Fit |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 2 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Nissan · 5 vehicles |
Combination switch. Controls lighting and turn signals in one snap-fit unit.
Snap-fit design. Installs with a rectangular female connector and blade terminals.
New replacement part. Built with indicator markings and high-beam functions included.
Cross-references Beck/Arnley 201-1897, Rostra Powertrain Controls 64-0064 and Standard Ignition CBS-1000 for the same application. See all 14.
Headlight Dimmer Switch for Nissan Pathfinder, Pickup, and D21
Standard Ignition CBS-1000 is a new headlight dimmer switch built as a combination switch for direct electrical control at the steering column. It includes main light operation, latching high beam control, momentary high beam flashing, and turn signal functions for the listed Nissan applications.
- Fits 1993-1995 Nissan Pathfinder
- Fits 1995 Nissan Pickup
- Fits 1994 Nissan D21
- Combination switch with headlight dimmer and turn signal functions
- 12-volt electrical design with snap-fit attachment
- Female rectangular connector with 1 connector and 2 cavities
- 11 blade terminals with male terminal ends
- Displayed indicator markings included
- New replacement part from Standard Ignition
Detailed Product Overview
Standard Ignition CBS-1000 is a steering-column mounted headlight dimmer switch for Nissan Pathfinder, Nissan Pickup, and Nissan D21 models listed in the fitment data. It is configured as a combination switch and includes the primary lighting controls, high-beam latch, high-beam flash function, and turn signal/directional indicator operation. The switch uses a snap-fit attachment method and a single female rectangular connector for installation in the original electrical layout. This part cross-references Beck/Arnley 201-1897 for the same application.
Common Issues This Switch Can Address
- Inoperative or intermittent high beam operation
- No response from the headlight dimmer control
- Turn signal switch malfunction at the steering column
- Worn indicator markings or poor switch feedback
- Electrical switching problems caused by a failed combination switch
Installation Notes and Tips
Verify connector shape, terminal count, and switch function before installation. This part is a 12-volt electrical component with a blade-terminal design, so matching the original connector and column interface is important for proper fitment. Confirm vehicle application for 1993-1995 Nissan Pathfinder, 1995 Nissan Pickup, or 1994 Nissan D21 before replacement. Standard Ignition CBS-1000 is intended to replace the original headlight dimmer switch assembly in the listed vehicles.
Quality Assurance
Standard Ignition supplies this CBS-1000 as a new replacement electrical switch for the specified Nissan applications. The part is built to match the listed connector, terminal, and function requirements for direct-fit service in the vehicles shown.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Nissan | Pathfinder | N/A | — |
| 1995 | Nissan | Pickup | N/A | — |
| 1994 | Nissan | D21 | N/A | — |
| 1994 | Nissan | Pathfinder | N/A | — |
| 1993 | Nissan | Pathfinder | N/A | — |
