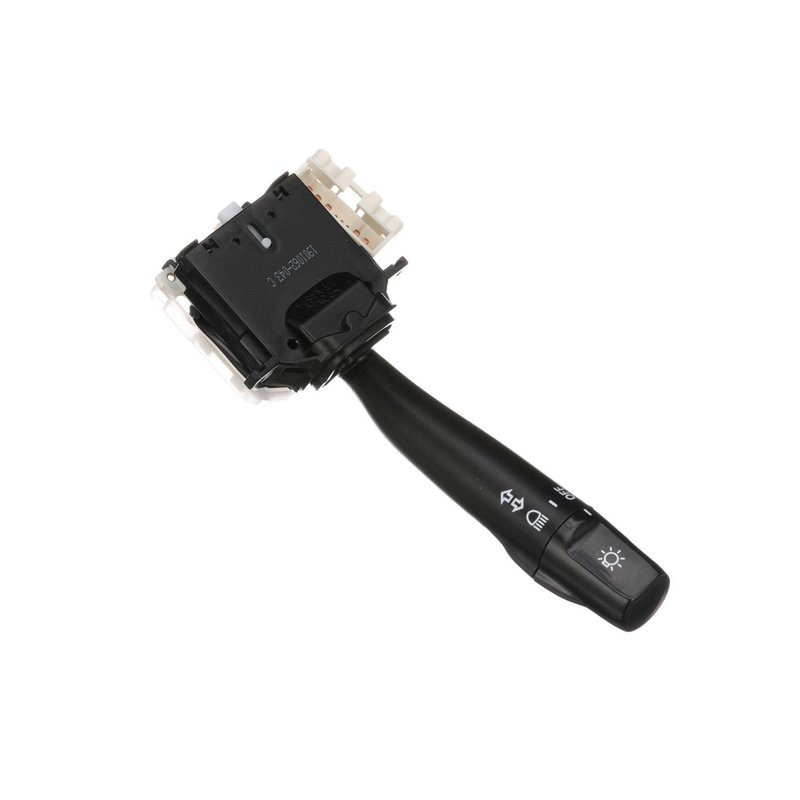

Standard Ignition CBS-1006 Headlight Dimmer Switch

Reliable Headlight Dimmer Switch for Chevrolet and Toyota Vehicles

The Standard Ignition CBS-1006 headlight dimmer switch is designed to provide consistent and precise control of your vehicle's lighting system. Engineered for select Chevrolet and Toyota models, this switch ensures proper operation of headlights, turn signals, and high beam functions.

• Direct bolt-on attachment method for secure installation
• Female rectangular connector with one cavity for easy wiring
• Includes indicator markings for clear operation
• Supports main light, turn signal, and latching high beam functions
• Compatible with 12-volt electrical systems
• New, not remanufactured, ensuring reliable performance
• Equipped with 16 male blade terminals for solid electrical connections

Product Details and Functionality

The CBS-1006 headlight dimmer switch from Standard Ignition is a combination switch that integrates multiple lighting controls into a single unit. It features a bolt-on attachment method, making it straightforward to replace in vehicles such as the Chevrolet Prizm and Toyota Corolla, RAV4, and Tacoma. The switch includes a female rectangular connector with one cavity and 16 male blade terminals, designed to fit the factory wiring harness precisely. This switch supports turn signal control, main light operation, and a latching high beam operator, as well as a momentary high beam flasher. Indicator markings are included on the switch for intuitive use, enhancing driver safety and convenience.

Compatible Vehicles and Common Applications

This headlight dimmer switch is compatible with the following vehicles:

• Chevrolet Prizm
• Toyota Corolla
• Toyota RAV4
• Toyota Tacoma

It is designed to replace faulty or worn-out headlight dimmer switches that may cause issues such as:

• Inoperative or intermittent high beam function
• Non-responsive turn signals or directional indicators
• Difficulty switching between low and high beams
• Malfunctioning main light operation
• Electrical connection problems due to damaged terminals

Installation Notes and Tips

Installation of the Standard Ignition CBS-1006 headlight dimmer switch requires basic automotive electrical knowledge. The bolt-on design allows for a secure fit without modification. Ensure the vehicle's battery is disconnected before beginning installation to prevent electrical shorts. Verify the connector orientation matches the factory harness and that all 16 blade terminals are properly seated. After installation, test all lighting functions including turn signals, main lights, and high beams to confirm correct operation.

Quality Assurance and Warranty

Standard Ignition provides this headlight dimmer switch as a new replacement part, manufactured to meet or exceed OEM specifications. The CBS-1006 is built for durability and reliable performance in 12-volt electrical systems. While specific warranty details may vary, Standard Ignition parts typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
