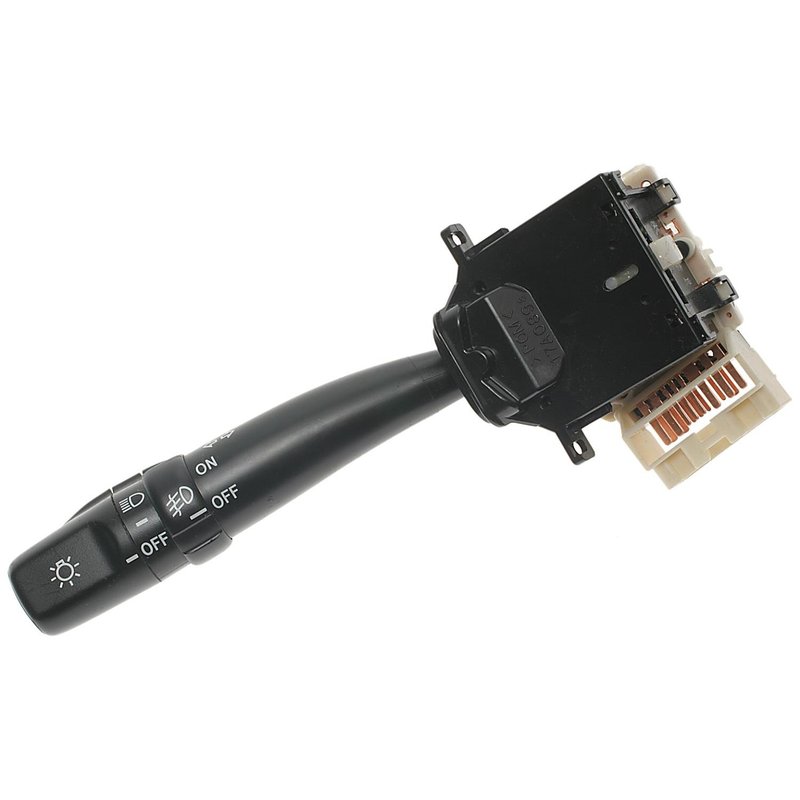

Standard Ignition CBS-1008 Headlight Dimmer Switch

Overview of Standard Ignition Headlight Dimmer Switch CBS-1008

The Standard Ignition CBS-1008 headlight dimmer switch is designed specifically for Toyota Corolla models. This new combination switch integrates multiple lighting and signaling functions into a single bolt-on unit, ensuring reliable operation of your vehicle's headlight and turn signal systems.

• Bolt-on attachment method for secure installation
• Female rectangular connector with one cavity
• Includes fog light operator and turn signal control
• Features latching high beam and momentary high beam flasher
• Indicator markings clearly displayed for ease of use
• Operates on 12-volt electrical systems
• 16 male blade terminals for robust connectivity

Detailed Product Description

The Standard Ignition CBS-1008 headlight dimmer switch is a combination switch that consolidates multiple lighting controls into one component. It is engineered for Toyota Corolla vehicles, providing functions such as main light operation, fog light control, turn signal activation, and high beam switching. The switch features a bolt-on attachment method, ensuring a stable and secure fit within the vehicle's electrical system. Its single female rectangular connector with one cavity and 16 male blade terminals supports reliable electrical connections. The switch includes indicator markings for intuitive operation and supports both latching high beam and momentary high beam flasher functions, enhancing driver control over lighting.

Common Applications and Issues Addressed

• Replacement for faulty or worn headlight dimmer switches in Toyota Corolla
• Restores proper operation of turn signals and high beam functions
• Resolves issues with fog light activation and control
• Fixes problems related to indicator markings and switch display
• Eliminates intermittent or non-responsive lighting controls

Installation Notes and Tips

Installation of the CBS-1008 headlight dimmer switch requires basic automotive electrical knowledge. The bolt-on design allows for straightforward mounting. Ensure the vehicle's battery is disconnected before beginning installation to prevent electrical shorts. Verify the connector orientation matches the female rectangular connector on the switch. Confirm all 16 blade terminals are properly seated to maintain full functionality of lighting and signaling features. After installation, test all functions including main lights, fog lights, turn signals, and high beam operations.

Quality Assurance and Warranty

This Standard Ignition headlight dimmer switch is a new, OEM-quality replacement part designed to meet or exceed original equipment specifications. It is manufactured to provide consistent performance and durability in Toyota Corolla vehicles. Standard Ignition products typically come with a limited warranty covering defects in materials and workmanship. Please refer to the product documentation for specific warranty details.
