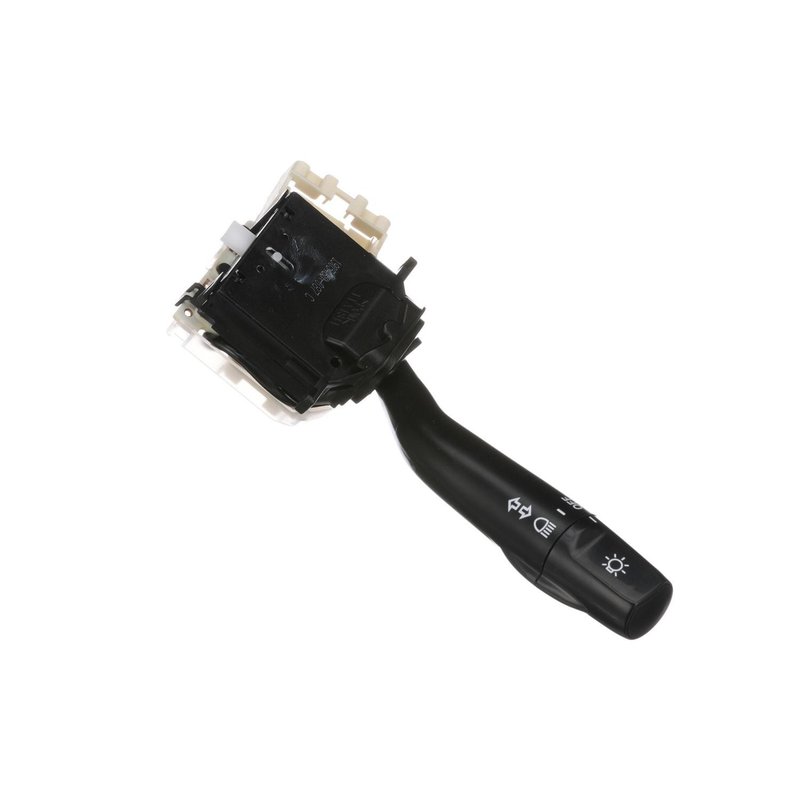

Standard Ignition CBS-1009 Headlight Dimmer Switch

Reliable Headlight Dimmer Switch for Toyota Vehicles

The Standard Ignition CBS-1009 headlight dimmer switch is designed to provide precise control over your vehicle's lighting system. Compatible with popular Toyota models such as the 4Runner, Avalon, Camry, Celica, Prius, RAV4, and Sienna, this switch ensures consistent performance and easy operation.

• Bolt-on attachment method for secure installation
• Female rectangular connector with one cavity
• Includes main light, turn signal, and latching high beam operators
• Indicator markings for clear visibility and operation
• Supports 12-volt electrical systems with 16 male blade terminals

Product Features and Specifications

The CBS-1009 headlight dimmer switch from Standard Ignition is a new replacement part engineered to meet OEM standards. It features a single female rectangular connector with one cavity and 16 male blade terminals, ensuring compatibility with the vehicle's wiring harness. The switch includes essential functions such as headlight control, turn signal operation, and a momentary high beam flasher. Indicator markings are included to assist drivers in identifying switch positions easily. This part does not include cruise control or fog light operators, focusing solely on lighting and turn signal functions.

Compatible Toyota Models and Applications

This headlight dimmer switch is compatible with a range of Toyota vehicles, including the 4Runner, Avalon, Camry, Celica, Prius, RAV4, and Sienna. It is designed to replace the original switch in these models, restoring proper headlight dimming, turn signal, and high beam functions. The bolt-on attachment method simplifies installation, making it suitable for professional mechanics and experienced DIYers alike.

Common Issues Addressed by the CBS-1009 Switch

• Intermittent or non-functioning headlight dimmer control
• Turn signals failing to activate or cancel properly
• High beam latching or flashing malfunctions
• Worn or damaged switch causing poor electrical contact
• Indicator markings faded or unclear on original switch

Installation Notes and Tips

Installation requires removal of the steering column covers to access the existing switch. The bolt-on design allows for straightforward replacement using standard hand tools. Ensure the vehicle's battery is disconnected before beginning installation to prevent electrical shorts. Verify connector orientation and terminal alignment when attaching the new switch. After installation, test all lighting and turn signal functions to confirm proper operation.

Quality Assurance and Warranty

Standard Ignition manufactures the CBS-1009 headlight dimmer switch to meet or exceed OEM specifications. This new switch undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
