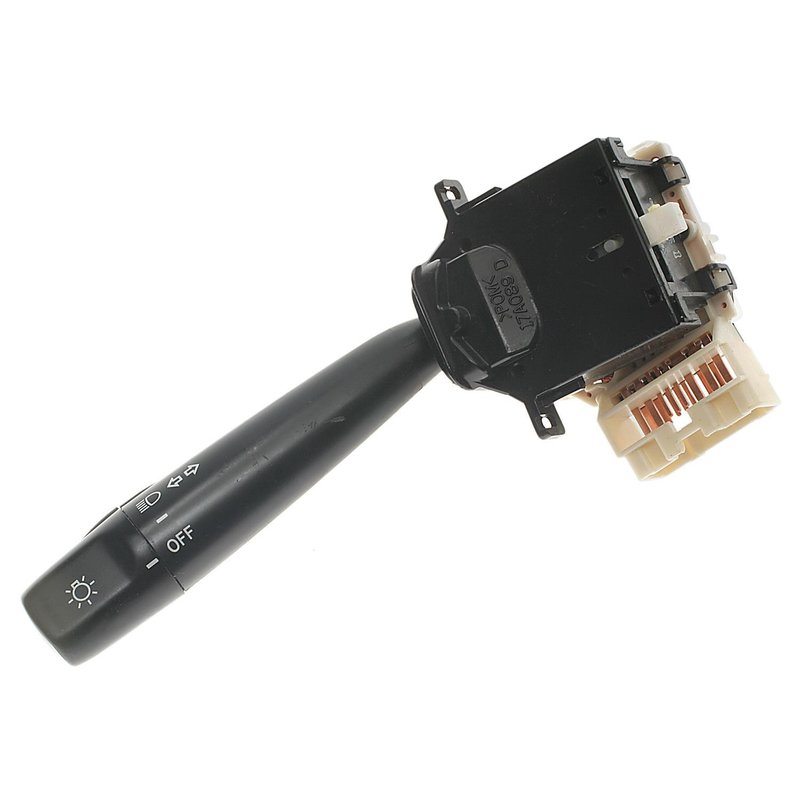

Standard Ignition CBS-1019 Headlight Dimmer Switch

Overview of Standard Ignition Headlight Dimmer Switch CBS-1019

The Standard Ignition CBS-1019 headlight dimmer switch is designed specifically for Toyota Tacoma models. This combination switch integrates multiple lighting and signaling functions into a single, bolt-on unit, ensuring reliable operation of your vehicle's headlight and turn signal systems.

• Compatible with Toyota Tacoma vehicles
• Bolt-on attachment method for secure installation
• Single rectangular female connector with 16 male blade terminals
• Includes turn signal and directional indicator controls
• Features main light, latching high beam, and momentary high beam flasher operators
• Indicator markings clearly displayed for ease of use
• Operates on standard 12-volt electrical systems

Detailed Product Description and Features

The Standard Ignition CBS-1019 headlight dimmer switch is a new, direct replacement part engineered to restore full lighting control functionality in Toyota Tacoma trucks. This combination switch consolidates multiple functions including turn signal control, main light operation, and high beam switching into one component. The switch features a bolt-on attachment method, ensuring a secure and stable fit within the vehicle's electrical system. It connects via a single rectangular female connector with 16 male blade terminals, designed for compatibility with the Tacoma's wiring harness.

Indicator markings are included on the switch for clear identification of controls, enhancing driver usability. The switch supports latching high beam operation as well as momentary high beam flashing, providing full control over headlight functions. It does not include cruise control or fog light operators, focusing solely on lighting and signaling functions. Operating at 12 volts, this switch meets the electrical requirements of the Toyota Tacoma's lighting system.

Common Applications and Issues Addressed

• Restores non-functioning or intermittent headlight dimmer operation
• Replaces worn or damaged turn signal and directional indicator switches
• Fixes issues with high beam latching or flashing functions
• Resolves problems with main light control failure
• Eliminates electrical connection faults due to damaged connectors or terminals

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical shorts
• Verify connector orientation and terminal alignment before securing the switch
• Use appropriate tools to remove the old switch and bolt on the new CBS-1019 securely
• Check all lighting functions after installation to confirm proper operation
• Consult the Toyota Tacoma service manual for detailed wiring diagrams and switch location

Quality Assurance and Warranty Information

The Standard Ignition CBS-1019 headlight dimmer switch is manufactured to meet OEM specifications for fit, form, and function. As a new replacement part, it undergoes quality control testing to ensure reliable performance in Toyota Tacoma vehicles. Standard Ignition products typically come with a limited warranty covering defects in materials and workmanship; please refer to the product documentation for specific warranty terms.
