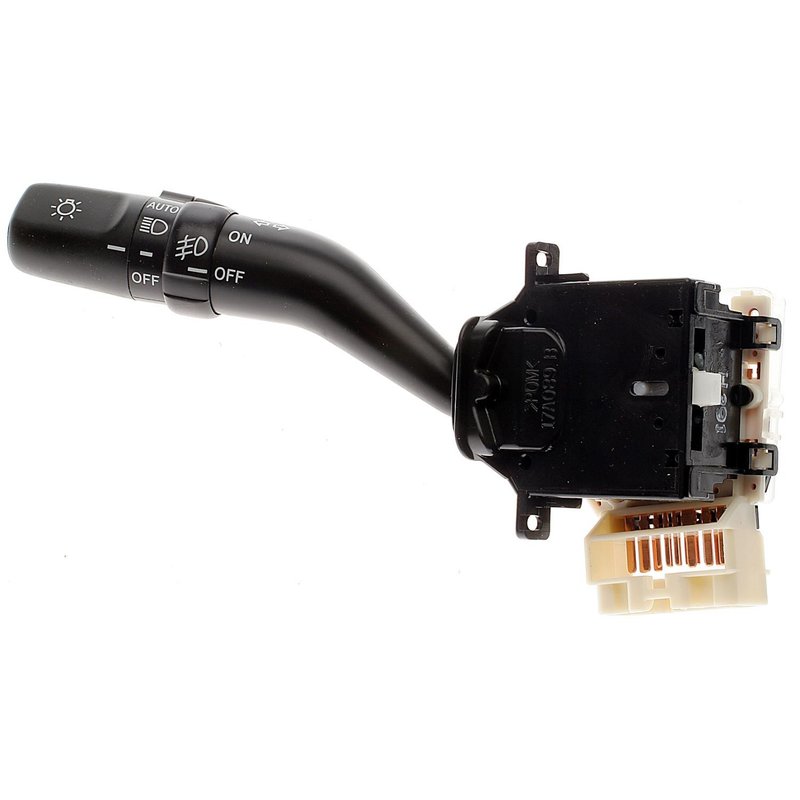

Standard Ignition CBS-1020 Headlight Dimmer Switch

Reliable Headlight Dimmer Switch for Toyota Avalon

The Standard Ignition CBS-1020 headlight dimmer switch is designed specifically for Toyota Avalon models, providing precise control over your vehicle's lighting functions. This new, bolt-on switch ensures seamless operation of headlights, turn signals, and fog lights, enhancing your driving safety and convenience.

Key Features of Standard Ignition CBS-1020

• Bolt-on attachment method for secure installation
• Single rectangular female connector with 16 male blade terminals
• Includes operators for main light, running light, fog light, and turn signals
• Equipped with latching high beam and momentary high beam flasher functions
• Indicator markings displayed for easy identification
• Compatible with 12-volt electrical systems

Detailed Product Description

The Standard Ignition CBS-1020 headlight dimmer switch is engineered to meet the electrical and lighting control needs of Toyota Avalon vehicles. Featuring a bolt-on attachment method, this switch offers a straightforward replacement process without compromising fit or function. The single rectangular female connector with 16 male blade terminals ensures reliable electrical connections within the vehicle's lighting system.

This switch integrates multiple lighting controls, including main light, running light, fog light, and turn signal operators, all clearly marked for intuitive use. The inclusion of both latching high beam and momentary high beam flasher functions allows drivers to manage high beam settings effectively. Designed for 12-volt systems, the CBS-1020 maintains consistent performance under standard automotive electrical conditions.

Common Applications and Issues Addressed

• Restores headlight dimming and high beam functionality on Toyota Avalon models
• Resolves malfunctioning turn signal or directional indicator controls
• Replaces faulty fog light operator switches
• Corrects issues with running light activation
• Eliminates problems with indicator markings visibility

Installation Notes and Tips

Installation of the Standard Ignition CBS-1020 headlight dimmer switch requires removal of the existing switch and securing the new unit using the bolt-on attachment method. Ensure the female rectangular connector aligns properly with the vehicle’s wiring harness to avoid connection issues. Verify all lighting functions operate correctly after installation before driving.

Quality Assurance and Warranty

This headlight dimmer switch is a new Standard Ignition part, manufactured to meet OEM specifications for Toyota Avalon vehicles. It undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details are not provided, Standard Ignition parts typically come with a limited warranty covering defects in materials and workmanship.
