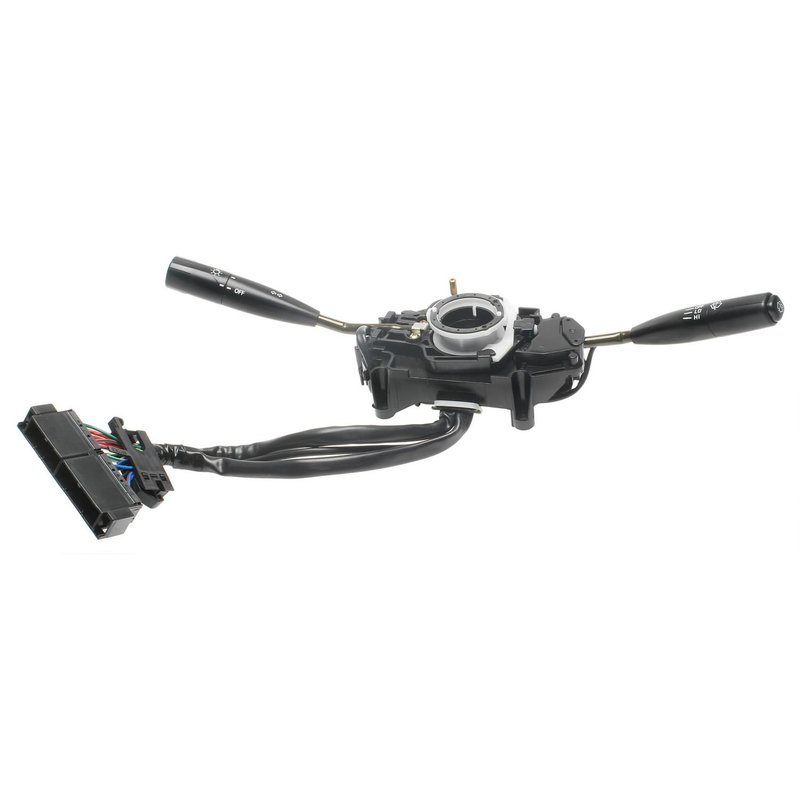

Standard Ignition CBS-1045 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1045 |
|---|---|
| Attachment Method | Snap Fit |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 2 |
| Number Of Wiper Delay Settings | 1 |
| Number Of Wiper Speed Settings | 2 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | Geo and Toyota · 8 vehicles |
Combination switch. Integrates lighting, turn signal, and wiper controls in one unit.
Snap-fit design. Installs securely with a female rectangular connector.
New replacement part. Built with 17 blade terminals for a direct electrical connection.
Cross-references Standard Ignition CBS-1045, 843101A150 and 94851356 for the same application. See all 5.
Headlight Dimmer Switch for Toyota Corolla and Geo Prizm
Restore reliable lighting and wiper control with this Standard Ignition headlight dimmer switch, part number CBS-1045. This combination switch is built for 12-volt systems and matches the factory-style layout used on select 1989-1992 Toyota Corolla and Geo Prizm models without cruise control.
Key Features
- Combination switch for headlight, turn signal, and wiper functions
- Snap-fit attachment with a rectangular female connector
- 12-volt electrical design with 17 blade terminals
- Includes main light operator, latching high beam operator, and momentary high beam flasher
- Includes turn signal control, windshield washer spray, and windshield wiper delay and speed settings
- Displayed indicator markings for clear driver operation
- New replacement part from Standard Ignition, part number CBS-1045
Detailed Description
Standard Ignition CBS-1045 is a headlight dimmer switch and multifunction combination switch designed for vehicles that use a dual lever assembly. It supports headlight dimming, turn signal operation, and windshield wiper controls in one factory-style unit. This part cross-references Dorman (e.g., S14198) for the same application. Compatible with 1989-1992 Toyota Corolla and 1989-1992 Geo Prizm models without cruise control, CBS-1045 is a direct-fit electrical replacement for restoring normal driver control functions.
Common Problems This Part May Solve
- Intermittent or inoperative high beam switching
- Turn signal lever not responding correctly
- Windshield wiper delay or speed control failure
- Washer spray function not activating from the column switch
- Worn or damaged multifunction switch contacts
Installation Notes and Tips
Verify connector shape, terminal count, and vehicle equipment before installation. This switch uses a snap-fit attachment and a single rectangular female connector, so matching the original column configuration is important. Confirm the vehicle is equipped without cruise control and uses the dual lever multifunction switch assembly listed in the fitment data. Fits 1989-1992 Toyota Corolla, N/A; Fits 1989-1992 Geo Prizm, N/A.
Quality Assurance
Standard Ignition supplies this new replacement switch as an OE-style electrical component for the listed applications. Part number CBS-1045 is built to match the specified connector, terminal, and function layout for the supported Toyota Corolla and Geo Prizm fitments.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 1992 | Geo | Prizm | — | N/A | w/o Cruise Control; Dual Lever Multifunction Switch Assembly |
| 1992 | Toyota | Corolla | Sedan | N/A | w/o Cruise Control; Dual Lever Multifunction Switch Assembly |
| 1991 | Geo | Prizm | — | N/A | w/o Cruise Control; Dual Lever Multifunction Switch Assembly |
| 1991 | Toyota | Corolla | Sedan | N/A | w/o Cruise Control; Dual Lever Multifunction Switch Assembly |
| 1990 | Geo | Prizm | — | N/A | w/o Cruise Control; Dual Lever Multifunction Switch Assembly |
| 1990 | Toyota | Corolla | Sedan | N/A | w/o Cruise Control; Dual Lever Multifunction Switch Assembly |
| 1989 | Geo | Prizm | — | N/A | w/o Cruise Control; Dual Lever Multifunction Switch Assembly |
| 1989 | Toyota | Corolla | Sedan | N/A | w/o Cruise Control; Dual Lever Multifunction Switch Assembly |
