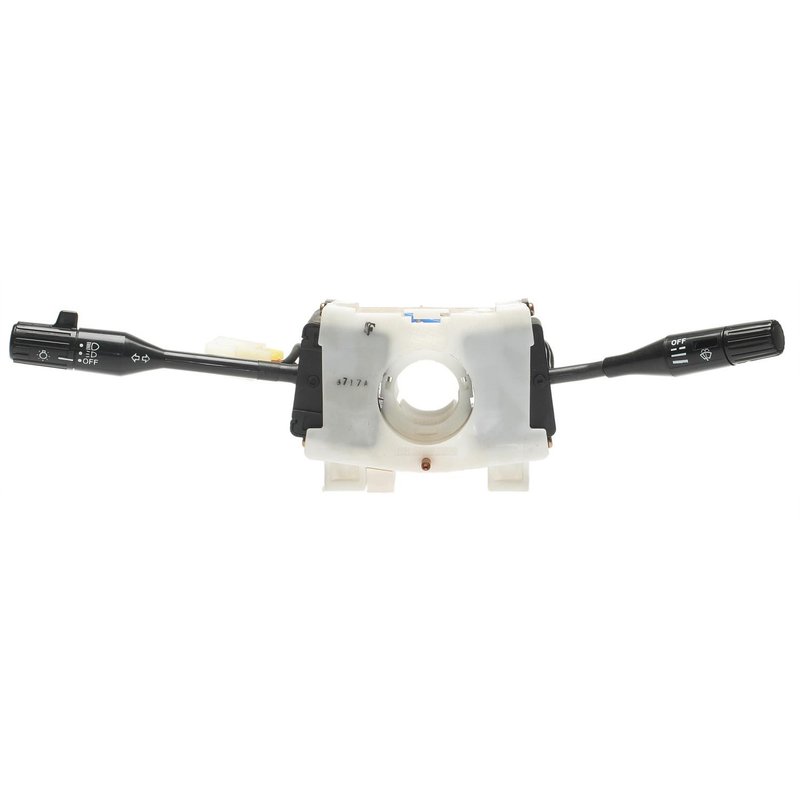

Standard Ignition CBS-1055 Headlight Dimmer Switch - Front
| Brand | Standard Ignition CBS-1055 |
|---|---|
| Position | Front |
| Attachment Method | Bolt On |
| Color | Black, Blue, White |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 5 |
| Number Of Wiper Delay Settings | 1 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | No |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | Nissan · 9 vehicles |
Bolt-on installation. Female connector and blade terminals simplify replacement.
Complete switch functions. Includes headlight, turn signal, washer, and wiper controls.
New plastic finish. Black, blue, and white styling with indicator markings.
Cross-references Standard Ignition CBS-1055, Standard Ignition S3019 and 2556017M20 for the same application. See all 6.
Headlight Dimmer Switch for Nissan Pulsar NX
Standard Ignition CBS-1055 is a new headlight dimmer switch built for direct replacement service on select Nissan Pulsar NX applications. It combines headlight, high-beam, turn signal, windshield washer, and wiper controls in one column-mounted multifunction assembly for 1984-1986 Nissan Pulsar NX models.
- Bolt-on attachment method for straightforward replacement
- Female connector with 3 connector cavities and 5 blade terminals
- Black, blue, and white plastic finish
- Includes main light operator, latching high beam operator, and momentary high beam flasher
- Includes turn signal control, windshield washer spray, windshield wiper delay, and windshield wiper speed functions
- 12-volt electrical design
- Displayed indicator markings included
Detailed Product Overview
Standard Ignition CBS-1055 is a headlight dimmer switch designed for vehicles that use a dual lever multifunction switch assembly. It serves as the control point for lighting and selected wiper functions, helping restore proper operation when the original switch becomes worn, intermittent, or unresponsive. This part cross-references 2556017M20 and HL6749 for the same application. Compatible with 1984-1986 Nissan Pulsar NX, including front-position applications noted for dual lever multifunction switch assembly service.
Common Problems This Part Can Address
- Headlights that do not switch correctly between low and high beam
- High-beam flash function that stops responding
- Turn signal control issues at the steering column
- Windshield washer spray or wiper delay functions that fail to operate properly
- Intermittent lighting control caused by a worn column switch
Installation Notes and Tips
Standard Ignition CBS-1055 uses a bolt-on mounting style with a rectangular female connector and blade terminals. Verify connector shape, cavity count, terminal style, and column-mounted switch layout before installation. Confirm the vehicle uses the dual lever multifunction switch assembly configuration shown in the fitment data for 1984-1986 Nissan Pulsar NX.
Quality Assurance
Standard Ignition supplies new electrical replacement parts for service applications, and CBS-1055 is built as a new replacement switch for direct-fit repair work on the listed Nissan Pulsar NX models.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1986 | Nissan | Pulsar NX | N/A | Dual Lever Multifunction Switch Assembly |
| 1986 | Nissan | Pulsar NX | N/A | — |
| 1986 | Nissan | Pulsar NX | Front | Dual Lever Multifunction Switch Assembly |
| 1985 | Nissan | Pulsar NX | N/A | Dual Lever Multifunction Switch Assembly |
| 1985 | Nissan | Pulsar NX | N/A | — |
| 1985 | Nissan | Pulsar NX | Front | Dual Lever Multifunction Switch Assembly |
| 1984 | Nissan | Pulsar NX | N/A | Dual Lever Multifunction Switch Assembly |
| 1984 | Nissan | Pulsar NX | N/A | — |
| 1984 | Nissan | Pulsar NX | N/A | Dual Lever Multifunction Switch Assembly; Column Mounted |
