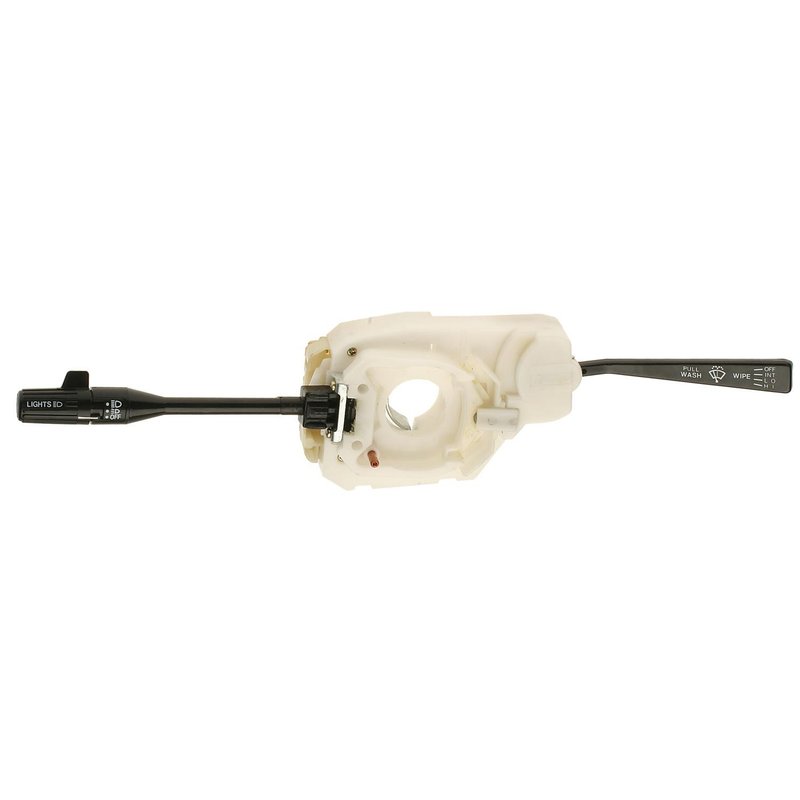

Standard Ignition CBS-1065 Headlight Dimmer Switch - Front
| Brand | Standard Ignition CBS-1065 |
|---|---|
| Position | Front |
| Attachment Method | Bolt On |
| Color | Black, White |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 3 |
| Number Of Wiper Delay Settings | 1 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | No |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | Nissan · 14 vehicles |
Bolt-on installation. Female 3-pin connector for a straightforward electrical replacement.
Integrated controls. Includes turn signal, wiper, washer, and headlight functions in one switch.
New plastic finish. Black and white housing with indicator markings for clear operation.
Cross-references Cloyes S839, Standard Ignition CBS-1065 and 2556004A60 for the same application. See all 6.
Headlight Dimmer Switch for Nissan Sentra and 720
Standard Ignition CBS-1065 is a new headlight dimmer switch built for vehicles with a dual lever multifunction switch assembly. It combines headlight dimming, turn signal control, windshield washer spray, and windshield wiper delay and speed functions in one direct-fit electrical switch.
- Bolt-on attachment method
- Black and white plastic finish
- Female 3-cavity connector with 17 blade terminals
- Displayed indicator markings included
- Latching high beam operator, main light operator, and momentary high beam flasher included
- Turn signal control included
- Windshield washer spray included
- Windshield wiper delay setting included
- Windshield wiper speed setting included
- 12-volt electrical design
Detailed Product Overview
Standard Ignition CBS-1065 is a replacement headlight dimmer switch for Nissan Sentra and Nissan 720 applications that use the specified multifunction switch layout. It is designed for front-mounted Sentra applications with intermittent wipers and for 720 models with a collapsible steering column. The switch supports headlight beam selection, turn signal operation, and windshield wiper and washer controls through a single assembly, making it a practical service part for restoring steering-column switch function. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Issues This Part Can Address
- Inoperative or intermittent headlight dimming control
- Faulty turn signal switch operation at the steering column
- Nonfunctioning windshield washer spray command
- Loss of wiper delay or wiper speed selection
- Worn multifunction switch contacts causing inconsistent lighting control
Installation Notes and Tips
Compatible With 1984-1986 Nissan Sentra, front, w/ intermittent wipers and dual lever multifunction switch assembly. Compatible With 1983-1986 Nissan Sentra, N/A, dual lever multifunction switch assembly. Compatible With 1983-1984 Nissan 720, N/A, w/ collapsible steering column. Verify connector shape, terminal count, and steering-column switch layout before installation. Transfer any vehicle-specific trim or mounting components as required by the application, and confirm proper operation of headlights, turn signals, washer spray, and wiper settings after installation.
Quality Assurance
Standard Ignition CBS-1065 is a new replacement electrical switch from Standard Ignition, a brand known for service parts across ignition and electrical categories. The part is built with a plastic finish, 12-volt specification, and application-specific connector and terminal layout for direct replacement use.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1986 | Nissan | Sentra | 1.7L | L4 | — | Front | w/ Intermittent Wipers; Dual Lever Multifunction Switch Assembly |
| 1986 | Nissan | Sentra | 1.7L | L4 | — | N/A | Dual Lever Multifunction Switch Assembly |
| 1986 | Nissan | Sentra | — | — | DIESEL | N/A | Dual Lever Multifunction Switch Assembly |
| 1985 | Nissan | Sentra | 1.7L | L4 | — | Front | w/ Intermittent Wipers; Dual Lever Multifunction Switch Assembly |
| 1985 | Nissan | Sentra | 1.7L | L4 | — | N/A | Dual Lever Multifunction Switch Assembly |
| 1985 | Nissan | Sentra | — | — | DIESEL | N/A | Dual Lever Multifunction Switch Assembly |
| 1985 | Nissan | Sentra | — | — | — | N/A | Dual Lever Multifunction Switch Assembly |
| 1984 | Nissan | 720 | — | — | — | N/A | w/ Collapsible Steering Column |
| 1984 | Nissan | Sentra | 1.7L | L4 | — | Front | w/ Intermittent Wipers; Dual Lever Multifunction Switch Assembly |
| 1984 | Nissan | Sentra | — | — | DIESEL | N/A | Dual Lever Multifunction Switch Assembly |
| 1984 | Nissan | Sentra | 1.7L | L4 | — | N/A | Dual Lever Multifunction Switch Assembly |
| 1983 | Nissan | 720 | — | — | — | N/A | w/ Collapsible Steering Column |
| 1983 | Nissan | Sentra | 1.7L | L4 | — | N/A | Dual Lever Multifunction Switch Assembly |
| 1983 | Nissan | Sentra | — | — | DIESEL | N/A | Dual Lever Multifunction Switch Assembly |
