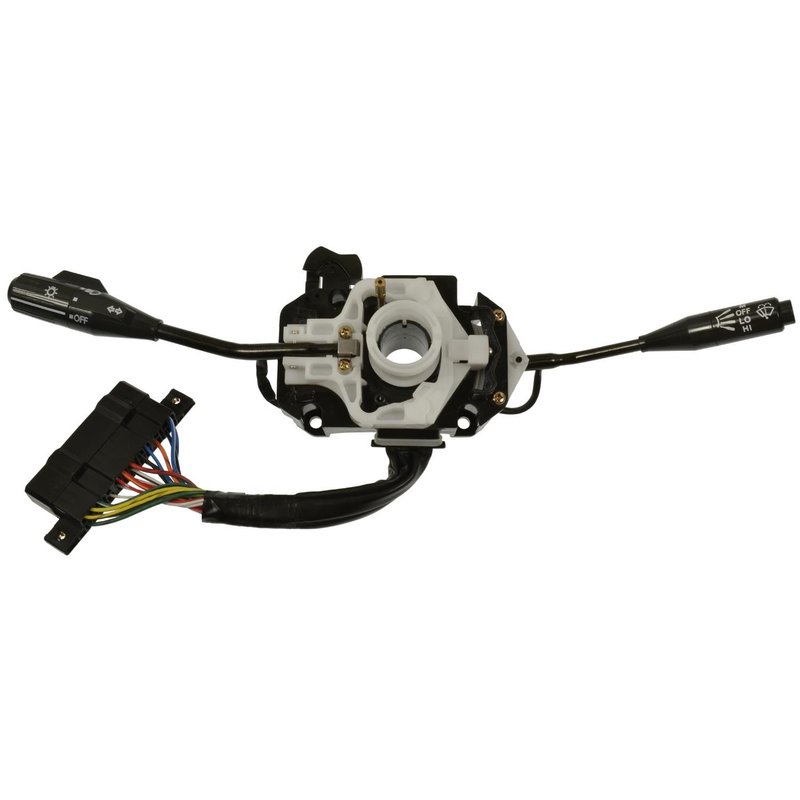

Standard Ignition CBS-1069 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1069 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 2 |
| Number Of Wiper Speed Settings | 2 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | Toyota · 2 vehicles |
Bolt-on installation. Female rectangular connector with a single 2-cavity plug.
Complete switch functions. Includes turn signal, headlight, wiper, and washer controls.
New replacement part. Standard Ignition electrical switch for 12-volt systems.
Cross-references Standard Ignition CBS-1069, 88923869 and 8431020311 for the same application. See all 5.
Headlight Dimmer Switch for Toyota Corona
Standard Ignition CBS-1069 is a new headlight dimmer switch for select Toyota Corona applications. It combines headlight control, turn signal operation, windshield washer spray, and windshield wiper speed control in one dash-mounted switch assembly for 1979-1980 Toyota Corona models.
- Fits 1979 Toyota Corona, N/A
- Fits 1980 Toyota Corona, N/A, w/ Intermittent Wipers
- Bolt-on attachment method
- Female rectangular connector with 1 connector and 2 cavities
- 21-pin male terminals
- Includes main light operator, latching high beam operator, momentary high beam flasher, turn signal control, windshield washer spray, and windshield wiper speed setting
- 12-volt electrical design
- Displayed unit with indicator markings included
Function and Features
This Standard Ignition CBS-1069 headlight dimmer switch is built for vehicles that need integrated lighting and wiper control from the steering column or dash switch location. It supports main light switching, high beam flash and latch functions, turn signal/directional indicator operation, and windshield washer spray control, making it a direct replacement for worn or malfunctioning switch assemblies on Toyota Corona models.
This part cross-references Standard Ignition CBS-1069 and Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems It Can Solve
- Intermittent or non-working headlight dimmer operation
- High beams that will not latch or flash properly
- Turn signal control issues at the switch
- Windshield wiper speed control problems
- Windshield washer spray switch failure
Installation Notes and Tips
Verify connector shape, terminal count, and vehicle application before installation. This CBS-1069 uses a bolt-on attachment method with a female rectangular connector and male pin terminals, so matching the original switch layout is important for proper electrical connection. Confirm whether your Toyota Corona is equipped with intermittent wipers, since the 1980 fitment is listed with that note.
Quality Assurance
Standard Ignition supplies this CBS-1069 as a new replacement switch for electrical repair work where accurate fitment and OE-style function matter. Use the confirmed vehicle listing to match the part to your Toyota Corona before installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1980 | Toyota | Corona | N/A | w/ Intermittent Wipers |
| 1979 | Toyota | Corona | N/A | — |
