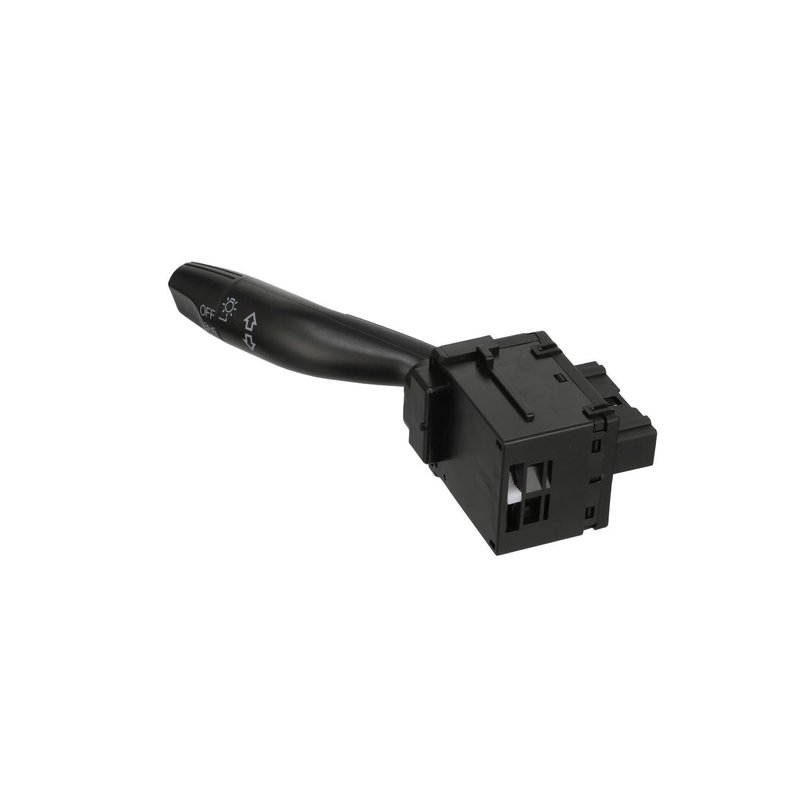

Standard Ignition CBS-1079 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1079 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Honda and Acura · 37 vehicles |
Combination switch. Controls lighting and turn signal functions in one unit.
Bolt-on installation. Plug-in connector makes replacement straightforward.
Marked controls. Indicator markings help identify each function quickly.
Cross-references Beck/Arnley 201-2451, Rostra Powertrain Controls 64-0023 and Standard Ignition CBS-1079 for the same application. See all 18.
Headlight Dimmer Switch for Honda and Acura
Standard Ignition CBS-1079 is a new headlight dimmer switch built as a combination switch for 12-volt vehicles. It uses a lever activation style with a plug-in, rectangular female connector and blade terminals for direct electrical control of lighting and turn signal functions.
Key Features
- Part number CBS-1079 from Standard Ignition
- Combination switch with lighting controls and turn signal control
- Lever-operated, bolt-on design
- Black finish with metal, plastic, and rubber construction
- Includes main light operator, latching high beam operator, and momentary high beam flasher
- Displayed indicator markings for clear function identification
- 12-volt electrical specification
Detailed Description
Standard Ignition CBS-1079 is a headlight dimmer switch for vehicles that use an integrated combination switch to manage exterior lighting and directional signaling. It includes the main light operator, high beam latch, high beam flasher, lighting controls, and turn signal control in one assembly. This part cross-references Beck/Arnley 201-2451 and Rostra Powertrain Controls 64-0023 for the same application. It is a direct-fit option for select Honda Civic, Honda CR-V, Honda Pilot, Honda S2000, Honda Element, Honda Fit, and Acura RSX applications, including Fits 2001-2005 Honda Civic, Fits 2002-2006 Honda CR-V, and Fits 2006-2008 Honda Pilot without fog lights.
What It Helps Fix
- Headlights that do not switch between low beam and high beam correctly
- Turn signal operation problems at the steering column switch
- Intermittent or worn lighting control response
- Broken or faded indicator markings on the switch face
- Failure of the combination switch to control exterior lighting functions
Installation Notes and Tips
Verify connector style, terminal count, and vehicle application before installation. This switch uses a bolt-on attachment method with a single rectangular female connector and 12 blade terminals. No hardware, wiring harness, or wiring is included. Fitment includes 2000-2001 Honda S2000, 2001-2005 Honda Civic, 2002-2006 Honda CR-V, 2002-2006 Acura RSX, 2003-2005 Honda Pilot, 2003-2008 Honda Element, 2006-2008 Honda Pilot without fog lights, and 2007-2008 Honda Fit.
Quality Assurance
Standard Ignition supplies this CBS-1079 switch as a new replacement electrical component for select Honda and Acura vehicles. The design follows the listed OE-style connector, terminal, and function layout for straightforward service replacement.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Honda | Element | — | — | — | N/A | — |
| 2008 | Honda | Fit | Base | — | — | N/A | — |
| 2008 | Honda | Fit | — | — | — | N/A | — |
| 2008 | Honda | Fit | — | 1.5L | L4 | N/A | — |
| 2008 | Honda | Pilot | — | — | — | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2007 | Honda | Element | — | — | — | N/A | — |
| 2007 | Honda | Fit | Base | — | — | N/A | — |
| 2007 | Honda | Fit | — | 1.5L | L4 | N/A | — |
| 2007 | Honda | Fit | — | — | — | N/A | — |
| 2007 | Honda | Pilot | — | — | — | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2006 | Acura | RSX | — | — | — | N/A | — |
| 2006 | Honda | CR-V | — | — | — | N/A | — |
| 2006 | Honda | Element | — | — | — | N/A | — |
| 2006 | Honda | Pilot | — | — | — | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2005 | Acura | RSX | — | — | — | N/A | — |
| 2005 | Honda | Civic | — | — | — | N/A | — |
| 2005 | Honda | CR-V | — | — | — | N/A | — |
| 2005 | Honda | Element | — | — | — | N/A | — |
| 2005 | Honda | Pilot | — | — | — | N/A | — |
| 2004 | Acura | RSX | — | — | — | N/A | — |
| 2004 | Honda | Civic | — | — | — | N/A | — |
| 2004 | Honda | CR-V | — | — | — | N/A | — |
| 2004 | Honda | Element | — | — | — | N/A | — |
| 2004 | Honda | Pilot | — | — | — | N/A | — |
| 2003 | Acura | RSX | — | — | — | N/A | — |
| 2003 | Honda | Civic | — | — | — | N/A | — |
| 2003 | Honda | CR-V | — | — | — | N/A | — |
| 2003 | Honda | Element | — | — | — | N/A | — |
| 2003 | Honda | Pilot | — | — | — | N/A | — |
| 2002 | Acura | RSX | — | — | — | N/A | — |
| 2002 | Honda | Civic | — | — | — | N/A | — |
| 2002 | Honda | CR-V | — | — | — | N/A | — |
| 2001 | Honda | Civic | — | — | — | N/A | — |
| 2001 | Honda | S2000 | — | — | — | N/A | To Chassis No. 1T009871 |
| 2001 | Honda | S2000 | — | 2.0L | L4 | N/A | To Chassis No. 1T009871 |
| 2000 | Honda | S2000 | — | 2.0L | L4 | N/A | — |
| 2000 | Honda | S2000 | — | — | — | N/A | — |
