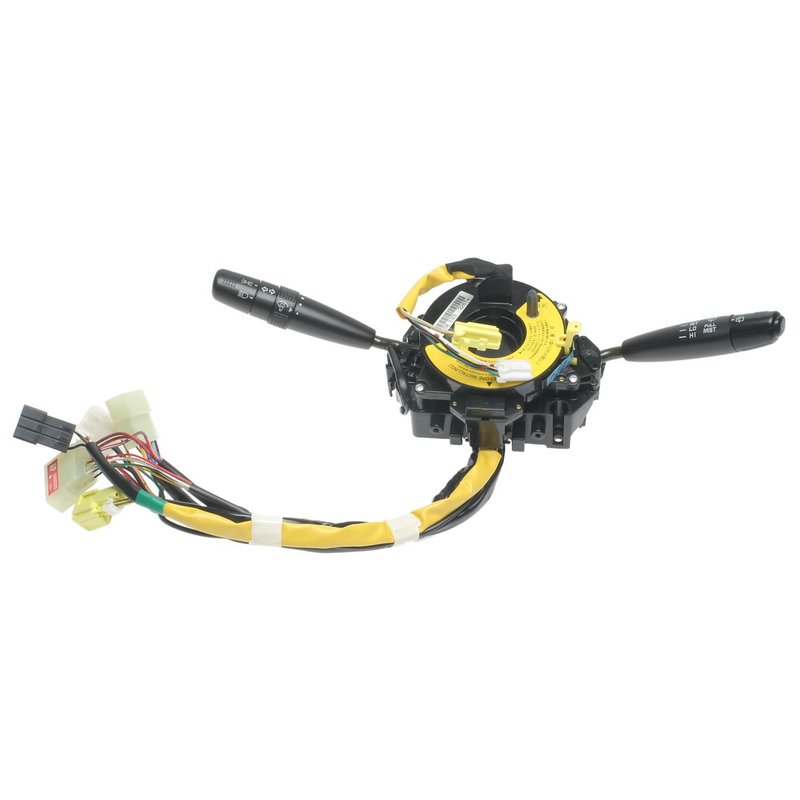

Standard Ignition CBS-1111 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1111 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black, White |
| Color | Black, Yellow |
| Connector Gender | Female; Male |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Hardware Included | No |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Lighting Controls Included | Main light operator; Headlights; High Beams |
| Lighting Controls Included | Main light operator; High Beams; Headlights |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 7 |
| Number Of Wiper Delay Settings | 1 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | Yes |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male; Female |
| Terminal Type | Blade |
| Turn Signal Control Included | Turn Signal Control |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Wiper Control Options Included | Windshield on/off; Rear on/off; Mist; Rear Mist |
| Wire Length (in) | 15.25 |
| Wire Length (mm) | 387.35 |
| Fits | Subaru · 4 vehicles |
Bolt-on installation. Direct-fit switch with no modifications needed.
Combination switch. Controls headlights, high beams, turn signals, and wipers.
7-pin connector. Rectangular blade terminals for a secure electrical connection.
Cross-references Standard Ignition CBS-1111, 83161AC030 and DL6290 for the same application. See all 6.
Headlight Dimmer Switch for Subaru Legacy
Standard Ignition CBS-1111 is a combination headlight dimmer switch for 1998-1999 Subaru Legacy models with intermittent wiper equipment. It combines lighting and wiper controls in one OE-style replacement, with direct-fit electrical connections for the factory setup.
Key Features
- Fits 1998-1999 Subaru Legacy, N/A
- Combination switch for headlights, high beams, turn signal control, and wiper functions
- Includes main light operator, high beam control, momentary high beam flasher, and latching high beam operator
- Supports windshield on/off, rear on/off, mist, and rear mist wiper control options
- Includes windshield washer spray and rear window washer spray functions
- 7 connector cavities with rectangular connector shape
- 12-volt electrical design with blade terminals
- Bolt-on attachment method with 15.25 in. wire length
- Black and white plastic finish with indicator markings displayed
Detailed Description
Standard Ignition CBS-1111 is built as a replacement headlight dimmer switch for the Subaru Legacy, covering 1998-1999 vehicles with intermittent wiper systems. It is a combination switch that integrates lighting controls and wiper controls into one assembly, including headlights, high beams, turn signal control, windshield washer spray, rear washer spray, and intermittent wiper settings. The CBS-1111 also includes indicator markings for easier operation and uses a 7-cavity rectangular connector layout for factory-style electrical connection. This part cross-references Dorman (e.g., S14297) for the same application.
Common Problems This Part Can Help Solve
- Headlights or high beams that do not switch properly
- Turn signal control that feels intermittent or unresponsive
- Wiper controls that fail to activate windshield or rear wipe functions
- Washer spray functions that stop responding at the stalk
- Worn switch contacts causing inconsistent lighting or wiper operation
Installation Notes and Tips
Verify connector count, terminal style, and wire length against the original switch before installation. This unit uses a bolt-on attachment method and a 12-volt electrical layout, so matching the factory connector and control layout is important for proper operation. Confirm your 1998-1999 Subaru Legacy is equipped with intermittent wipers before ordering.
Quality Assurance
Standard Ignition supplies this CBS-1111 replacement switch as a new part with OE-style electrical and control features for the listed Subaru Legacy applications.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Subaru | Legacy | Wagon | N/A | w/ Intermittent Wiper |
| 1999 | Subaru | Legacy | Wagon | N/A | w/ Intermittent Wipers |
| 1998 | Subaru | Legacy | Wagon | N/A | w/ Intermittent Wiper |
| 1998 | Subaru | Legacy | Wagon | N/A | w/ Intermittent Wipers |
