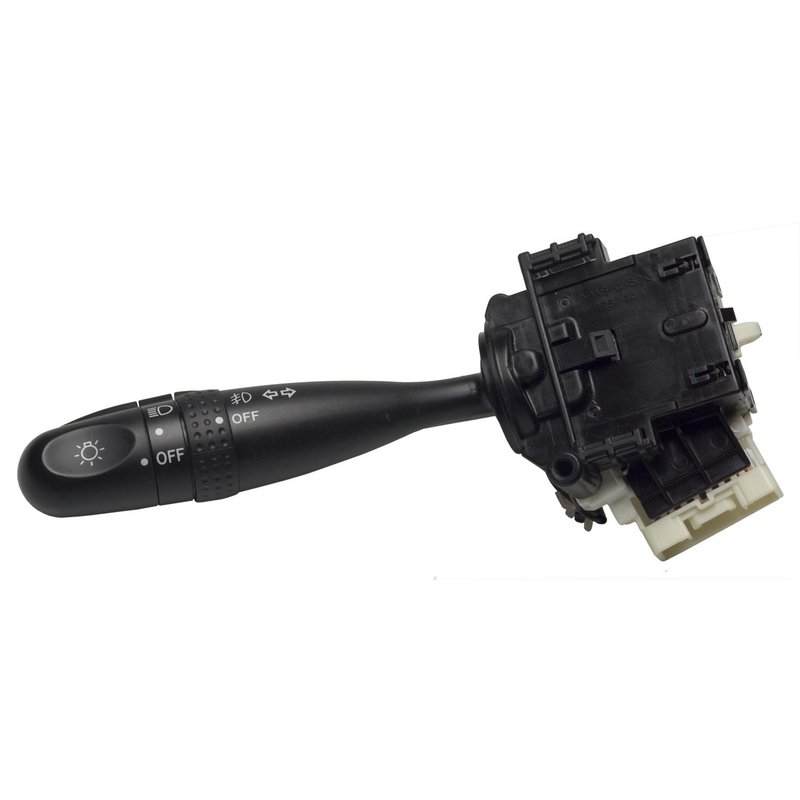

Standard Ignition CBS-1128 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1128 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | Yes |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Pontiac and Toyota · 51 vehicles |
Bolt-on installation. Female connector and blade terminals simplify replacement.
Complete lighting control. Includes fog light, main light, high beam, and turn signal functions.
New switch. Built for 12-volt electrical systems.
Cross-references Standard Ignition CBS-1128, 1S3323 and 18-1203 for the same application. See all 13.
Headlight Dimmer Switch for Toyota and Pontiac
Standard Ignition CBS-1128 is a new headlight dimmer switch for 12-volt vehicles with factory fog light, turn signal, and headlight control functions. It is built with a bolt-on attachment, a rectangular female connector, and blade terminals for direct replacement service on supported Toyota, Scion, and Pontiac applications.
Key Features
- Part number CBS-1128 from Standard Ignition
- Headlight dimmer switch with main light operator, latching high beam operator, and momentary high beam flasher
- Fog light operator included
- Turn signal control and turn signal/directional indicator included
- Displayed indicator markings included
- 12-volt electrical design
- Bolt-on attachment method with 1 rectangular female connector
- 12 blade terminals, male terminal type
- New replacement part
Detailed Description
Standard Ignition CBS-1128 is a replacement headlight dimmer switch for vehicles that use integrated lighting and signal controls at the steering column. It provides control for the main lights, high beam latch, high beam flash, fog lights, and turn signals, with visible indicator markings for straightforward operation. This part number CBS-1128 is listed for 2000-2005 Toyota Echo, 2001-2005 Toyota RAV4, 2003-2008 Pontiac Vibe, 2003-2008 Toyota Corolla, 2003-2008 Toyota Matrix, and 2004-2006 Scion xA. For Corolla and Matrix applications, it is listed for vehicles equipped with fog lights.
This part cross-references Dorman 901-301 for the same application.
What It Helps Fix
- Inoperative or intermittent headlight dimmer control
- High beams that do not latch or flash correctly
- Fog light switch function loss at the column
- Turn signal control problems from a worn switch assembly
- Dimmer switch wear that causes inconsistent lighting operation
Installation Notes and Tips
Verify connector shape, terminal count, and vehicle equipment before installation. This CBS-1128 uses a bolt-on mounting style, a single rectangular female connector, and blade terminals, so matching the original switch layout is important for proper fitment. Confirm fog light-equipped applications where noted for Toyota Corolla and Toyota Matrix models.
Quality Assurance
Standard Ignition supplies this as a new electrical replacement part for supported 12-volt applications. Use the vehicle fitment details and connector specifications to confirm the correct replacement before installation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2008 | Pontiac | Vibe | — | — | N/A | — |
| 2008 | Toyota | Corolla | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2008 | Toyota | Corolla | — | — | N/A | — |
| 2008 | Toyota | Matrix | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2008 | Toyota | Matrix | — | — | N/A | — |
| 2007 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2007 | Pontiac | Vibe | — | — | N/A | — |
| 2007 | Toyota | Corolla | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2007 | Toyota | Corolla | — | — | N/A | — |
| 2007 | Toyota | Matrix | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2007 | Toyota | Matrix | — | — | N/A | — |
| 2006 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2006 | Pontiac | Vibe | — | — | N/A | — |
| 2006 | Scion | xA | 1.5L | L4 | N/A | — |
| 2006 | Toyota | Corolla | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2006 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2006 | Toyota | Corolla | — | — | N/A | — |
| 2006 | Toyota | Matrix | — | — | N/A | — |
| 2006 | Toyota | Matrix | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2005 | Pontiac | Vibe | — | — | N/A | — |
| 2005 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2005 | Scion | xA | — | — | N/A | — |
| 2005 | Toyota | Corolla | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2005 | Toyota | Corolla | — | — | N/A | — |
| 2005 | Toyota | Echo | — | — | N/A | — |
| 2005 | Toyota | Matrix | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2005 | Toyota | Matrix | — | — | N/A | — |
| 2005 | Toyota | RAV4 | — | — | N/A | — |
| 2004 | Pontiac | Vibe | — | — | N/A | — |
| 2004 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2004 | Scion | xA | — | — | N/A | — |
| 2004 | Toyota | Corolla | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2004 | Toyota | Corolla | — | — | N/A | — |
| 2004 | Toyota | Echo | 1.5L | L4 | N/A | — |
| 2004 | Toyota | Matrix | — | — | N/A | — |
| 2004 | Toyota | Matrix | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2004 | Toyota | RAV4 | — | — | N/A | — |
| 2003 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2003 | Pontiac | Vibe | — | — | N/A | — |
| 2003 | Toyota | Corolla | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2003 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2003 | Toyota | Echo | — | — | N/A | — |
| 2003 | Toyota | Matrix | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2003 | Toyota | Matrix | — | — | N/A | — |
| 2003 | Toyota | RAV4 | — | — | N/A | — |
| 2002 | Toyota | Echo | — | — | N/A | — |
| 2002 | Toyota | RAV4 | — | — | N/A | — |
| 2001 | Toyota | Echo | — | — | N/A | — |
| 2001 | Toyota | RAV4 | — | — | N/A | — |
| 2000 | Toyota | Echo | — | — | N/A | — |
