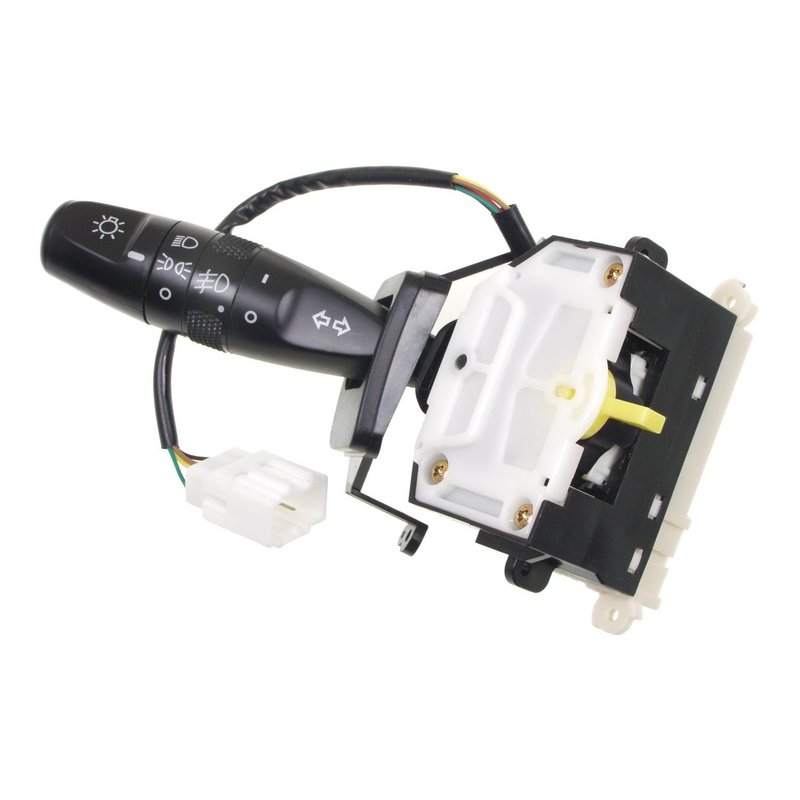

Standard Ignition CBS-1138 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1138 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | Yes |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 4 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade; Pin |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Mitsubishi · 16 vehicles |
Bolt-on installation. Female 4-pin connector for a straightforward electrical swap.
Combination switch. Controls headlights, turn signals, fog lights, and high beams.
New part. Built with a rectangular connector and blade-pin terminals.
Cross-references Standard Ignition CBS-1138, DL6536 and MR243170 for the same application. See all 5.
Headlight Dimmer Switch for Mitsubishi Diamante
Restore reliable lighting control with this Standard Ignition headlight dimmer switch, part number CBS-1138. It is a new combination switch built for 12-volt systems and is compatible with Mitsubishi Diamante models equipped with fog lights.
- Brand: Standard Ignition
- Part number: CBS-1138
- New replacement switch
- Bolt-on attachment method
- Female 4-pin rectangular connector
- 25 blade and pin terminals
- Combination switch function
- Includes fog light operator, turn signal control, main light operator, latching high beam operator, momentary high beam flasher, and indicator markings
- 12-volt electrical design
Detailed Product Overview
The Standard Ignition CBS-1138 is a headlight dimmer switch designed as a combination switch for the driver-side lighting controls. It manages key exterior lighting functions, including the main lights, high beam operation, fog light control, and turn signal/directional indicator operation. For Mitsubishi Diamante applications, this switch supports vehicles equipped with fog lights and uses a bolt-on mounting style with a female rectangular connector.
Use CBS-1138 when you need a direct replacement for worn or inconsistent lighting controls in 1997-2004 Mitsubishi Diamante models. This part cross-references Mitsubishi OE numbers such as MR243170 and aftermarket references such as DL6536 for the same application.
What This Switch Helps Address
- Intermittent or failed headlight dimmer operation
- Inoperative high beam flash or latching high beam function
- Fog light control issues at the steering column switch
- Turn signal control problems caused by a worn combination switch
- Loose, damaged, or unreliable lighting selector operation
Installation Notes and Fitment
Fits 1997-2004 Mitsubishi Diamante, N/A. Fits 1997-2004 Mitsubishi Diamante, N/A, compatible with vehicles equipped with fog lights. Verify connector shape, terminal count, and switch layout against the original unit before installation. The bolt-on design and 4-cavity female connector should match the vehicle’s existing electrical interface.
Quality Assurance
Standard Ignition supplies this as a new electrical replacement part for lighting and body control applications. CBS-1138 is built to match the specified connector, terminal, and function requirements for the listed Mitsubishi Diamante fitment.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Mitsubishi | Diamante | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2004 | Mitsubishi | Diamante | 3.5L | V6 | N/A | — |
| 2003 | Mitsubishi | Diamante | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2003 | Mitsubishi | Diamante | 3.5L | V6 | N/A | — |
| 2002 | Mitsubishi | Diamante | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2002 | Mitsubishi | Diamante | 3.5L | V6 | N/A | — |
| 2001 | Mitsubishi | Diamante | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2001 | Mitsubishi | Diamante | 3.5L | V6 | N/A | — |
| 2000 | Mitsubishi | Diamante | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2000 | Mitsubishi | Diamante | 3.5L | V6 | N/A | — |
| 1999 | Mitsubishi | Diamante | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 1999 | Mitsubishi | Diamante | 3.5L | V6 | N/A | — |
| 1998 | Mitsubishi | Diamante | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 1998 | Mitsubishi | Diamante | — | — | N/A | — |
| 1997 | Mitsubishi | Diamante | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 1997 | Mitsubishi | Diamante | — | — | N/A | — |
