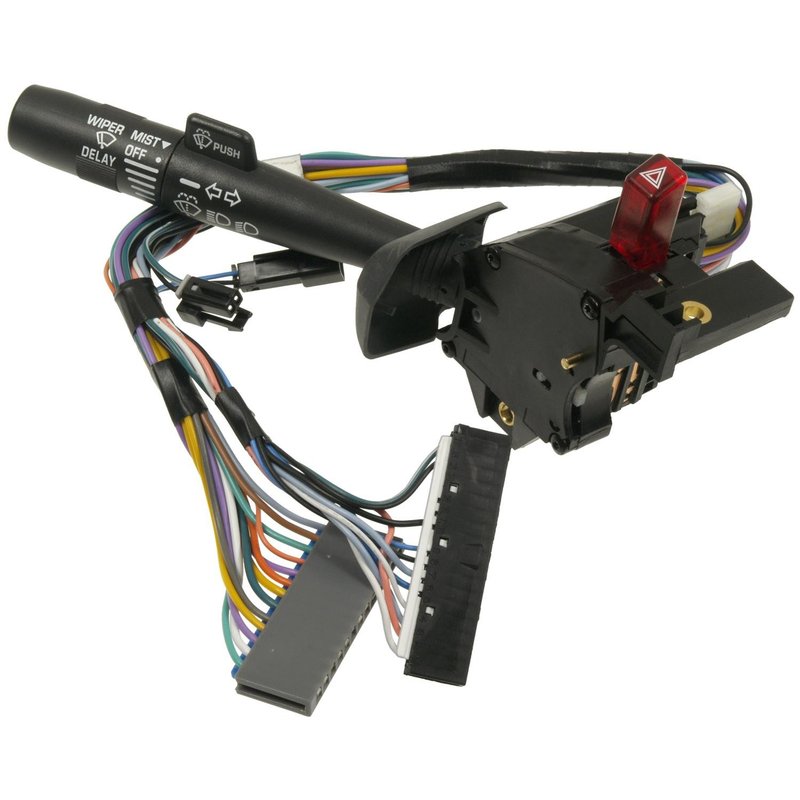

Standard Ignition CBS-1152 Headlight Dimmer Switch - Front

Headlight Dimmer Switch for Astro and Safari

Standard Ignition CBS-1152 is a new headlight dimmer switch built for 12-volt electrical systems and combination-switch operation. It is made for 2000-2005 Chevrolet Astro and GMC Safari applications without cruise control, including front-position listings where specified.

• Bolt-on attachment method for direct replacement
• Combination switch function with turn signal control included
• Latching high beam operator and momentary high beam flasher included
• Windshield washer spray, wiper delay, and wiper speed controls included
• 4 rectangular connectors, 28 blade terminals, male/female terminal design
• New part with indicator markings included
• 12-volt electrical design

Detailed Product Overview

Standard Ignition CBS-1152 is a headlight dimmer switch engineered with copper alloy conductors to support strong electrical conductivity and reduced resistive loss. The switch is 100% tested for mechanical and electrical switching performance, helping ensure consistent operation of the lighting and wiper functions built into the combination switch. This part number, CBS-1152, is listed for Chevrolet Astro and GMC Safari models from 2000-2005 without cruise control, making it a direct-fit option for common service replacements on these vans.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2004-2005 Chevrolet Astro, N/A, w/o Cruise Control; Alternate Number
• Fits 2004-2005 Chevrolet Astro, N/A, w/o Cruise Control; Combo Switch Assembly; Alternate Number
• Fits 2004-2005 Chevrolet Astro, Front, w/o Cruise Control; Alternate Number
• Fits 2004-2005 GMC Safari, N/A, w/o Cruise Control; Combo Switch Assembly; Alternate Number
• Fits 2004-2005 GMC Safari, Front, w/o Cruise Control; Combo Switch Assembly; Alternate Number
• Fits 2004-2005 GMC Safari, N/A, w/o Cruise Control; Alternate Number
• Fits 2000-2003 Chevrolet Astro, N/A, w/o Cruise Control; Combo Switch Assembly
• Fits 2000-2003 Chevrolet Astro, N/A, Not compatible with vehicles equipped with cruise control.
• Fits 2000-2003 Chevrolet Astro, Front, Not compatible with vehicles equipped with cruise control.
• Fits 2000-2003 GMC Safari, N/A, w/o Cruise Control; Combo Switch Assembly
• Fits 2000-2003 GMC Safari, N/A, Not compatible with vehicles equipped with cruise control.
• Fits 2000-2003 GMC Safari, Front, w/o Cruise Control; Combo Switch Assembly

Common Repair Symptoms

• Headlights do not switch between low beam and high beam correctly
• High beam flash function is intermittent or inoperative
• Turn signal or combination switch functions stop responding
• Windshield wiper delay or speed settings fail to operate as expected
• Washer spray control does not activate from the column switch

Installation Notes

Verify the vehicle is equipped without cruise control before ordering CBS-1152. Match the connector style, terminal count, and switch functions to the original unit before installation. Because this is a bolt-on replacement with multiple integrated controls, confirm the column switch layout and indicator markings against the original part on your Chevrolet Astro or GMC Safari.

Quality Assurance

Standard Ignition builds this switch with robust materials and copper alloy conductors, then tests each unit for electrical and mechanical switching performance before release.
