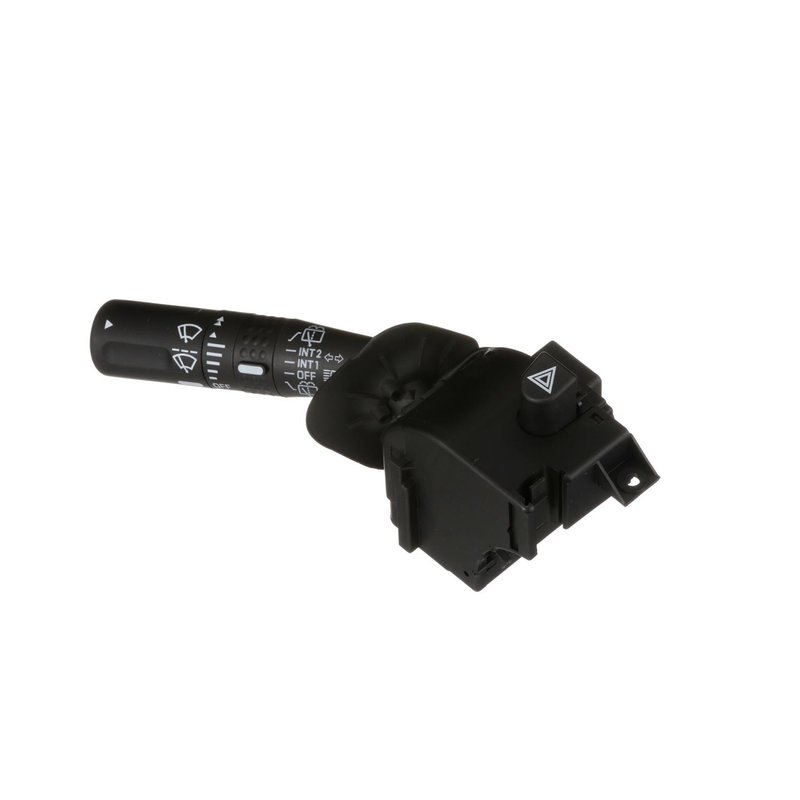

Standard Ignition CBS-1172 Headlight Dimmer Switch

Reliable Headlight Dimmer Switch for Ford and Mercury Vehicles

The Standard Ignition CBS-1172 headlight dimmer switch is designed to provide precise control over your vehicle's lighting functions. Engineered for select Ford and Mercury models, this switch ensures consistent performance and durability for your Expedition, Explorer, or Mountaineer.

• Bolt-on attachment method for secure installation
• Female rectangular connector with 3 cavities
• Combination switch functionality including turn signal and high beam control
• Includes indicator markings and latching high beam operator
• Supports rear window washer spray and wiper delay settings
• New, not remanufactured, ensuring reliable operation

Detailed Features and Specifications

The CBS-1172 headlight dimmer switch from Standard Ignition is a combination switch that integrates multiple lighting and wiper functions into a single unit. It features a bolt-on attachment method for easy and secure mounting. The switch includes a female rectangular connector with three cavities and 23 blade-type terminals (male and female), facilitating reliable electrical connections. Key functions include turn signal control, momentary high beam flasher, latching high beam operator, and indicator markings for clear user feedback. Additionally, it supports rear window washer spray, rear window wiper delay control, and multiple wiper speed settings, enhancing overall vehicle control.

Compatible Vehicles and Applications

This headlight dimmer switch is compatible with the following vehicles:

• Ford Expedition
• Ford Explorer
• Mercury Mountaineer

Designed specifically for these models, the CBS-1172 switch addresses common electrical and lighting control needs, ensuring proper function of headlights, turn signals, and rear window wipers.

Common Issues Addressed by This Switch

• Intermittent or non-functioning high beam or dimmer control
• Faulty turn signal operation or indicator markings
• Rear window wiper or washer spray failure
• Unresponsive wiper speed or delay settings
• Loose or damaged electrical connections in lighting controls

Installation Notes and Tips

Installation of the Standard Ignition CBS-1172 headlight dimmer switch requires basic automotive electrical knowledge. The bolt-on design allows for straightforward replacement. Ensure the vehicle's battery is disconnected before installation to prevent electrical shorts. Verify connector orientation and terminal alignment to avoid damage. After installation, test all lighting and wiper functions to confirm proper operation.

Quality Assurance and Warranty

Standard Ignition provides this CBS-1172 headlight dimmer switch as a new, high-quality replacement part. It meets or exceeds OEM specifications for fit, form, and function. While specific warranty details may vary, Standard Ignition parts typically come with a limited warranty covering defects in material and workmanship, offering peace of mind for professional and DIY installers.
