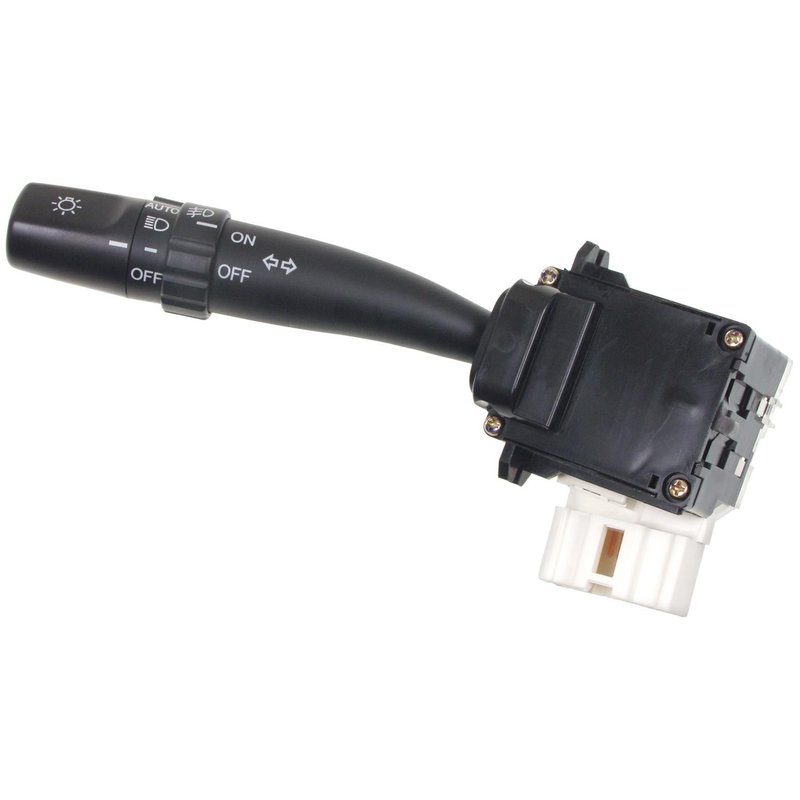

Standard Ignition CBS-1176 Headlight Dimmer Switch

Reliable Headlight Dimmer Switch for Lexus LS400

The Standard Ignition CBS-1176 headlight dimmer switch is designed specifically for Lexus LS400 models. This new, bolt-on switch offers essential lighting control functions, ensuring safe and efficient operation of your vehicle's headlights and turn signals.

• Attachment Method: Bolt on for secure installation
• Connector: Female, rectangular shape with one cavity
• Includes operators for fog lights, main lights, running lights, and turn signals
• Features latching high beam and momentary high beam flasher functions
• Indicator markings included for clear visibility
• Operates on 12-volt electrical systems
• 14 male blade terminals for reliable electrical connections

Product Details and Functionality

The CBS-1176 headlight dimmer switch from Standard Ignition is engineered to replace the original switch in Lexus LS400 vehicles. It integrates multiple lighting controls, including fog light operation, turn signal control, and running light activation. The switch features a bolt-on attachment method, ensuring a stable and straightforward installation process. Its single female rectangular connector with one cavity and 14 male blade terminals provide a secure and precise electrical connection. The switch supports 12-volt systems and includes indicator markings for ease of use. Additionally, it offers both latching high beam and momentary high beam flasher functions, enhancing driver control over headlight operation.

Common Applications and Issues Addressed

• Restores proper function to faulty or unresponsive headlight dimmer switches
• Resolves issues with turn signal operation and indicator visibility
• Fixes problems with fog light activation through the switch
• Eliminates intermittent or non-functioning high beam flashing
• Addresses electrical connection failures due to worn terminals or connectors

Installation Notes and Tips

Installation of the Standard Ignition CBS-1176 headlight dimmer switch is straightforward due to its bolt-on design. Ensure the vehicle's battery is disconnected before beginning installation to prevent electrical shorts. Verify the connector orientation matches the original switch's female rectangular connector with one cavity. Confirm all 14 male blade terminals align correctly with the vehicle wiring harness. After installation, test all lighting functions including fog lights, turn signals, running lights, and high beam operations to ensure proper functionality.

Quality Assurance and Warranty

This headlight dimmer switch is a new Standard Ignition part, manufactured to meet or exceed OEM specifications for the Lexus LS400. It undergoes rigorous quality control to ensure durability and reliable performance. Standard Ignition parts typically come with a limited warranty covering defects in materials and workmanship, providing confidence in the product's longevity and function.
