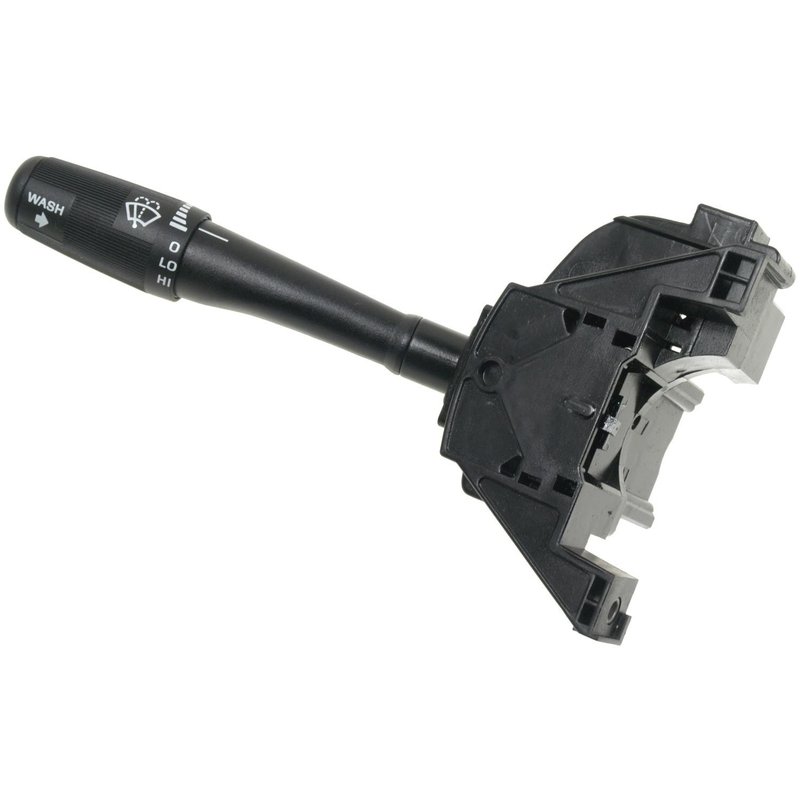

Standard Ignition CBS-1180 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1180 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | No |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 3 |
| Number Of Wiper Delay Settings | 6 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | No |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | Ford · 6 vehicles |
Bolt-on design. Installs easily with no modifications needed.
Combination switch. Combines lighting, wiper, and turn signal functions.
Copper alloy conductors. Deliver strong conductivity with low resistive losses.
Cross-references 1S3115, 53-64580 and DL6533 for the same application. See all 8.
Headlight Dimmer Switch for Mustang
Standard Ignition CBS-1180 is a new headlight dimmer switch built for 1987-1989 Ford Mustang models with a tilt steering wheel. It combines lighting and wiper control functions in one bolt-on switch assembly, with tested mechanical and electrical performance for service replacement work.
- Bolt-on attachment method
- 3 rectangular female connector cavities
- 15 blade terminals, male terminal design
- Combination switch with turn signal control included
- Latching high beam operator and momentary high beam flasher included
- Windshield washer spray, wiper delay, and wiper speed controls included
- Displayed indicator markings included
- 12-volt electrical system
Detailed Product Overview
This Standard Ignition CBS-1180 headlight dimmer switch is engineered with copper alloy conductors to support strong electrical conductivity and reduced resistive loss. It is 100% tested for both switching action and electrical performance, making it a direct service part for Ford Mustang owners replacing a worn or malfunctioning column switch. The CBS-1180 also serves as a combination switch for lighting, turn signal, and windshield wiper functions, which helps restore multiple driver controls through one component.
Fits 1987-1989 Ford Mustang, N/A. Fits 1987-1989 Ford Mustang, N/A, with tilt steering wheel.
This part cross-references Standard Ignition CBS-1180 for the same application.
Common Problems This Part Can Address
- Headlights that will not switch between low and high beam
- Intermittent or inoperative turn signal control at the steering column
- Wiper delay or wiper speed control loss
- Washer spray control failure from the column switch
- Loose, worn, or inconsistent switch operation in the steering column
Installation Notes and Tips
Verify connector shape, terminal count, and steering column configuration before installation. This CBS-1180 uses a bolt-on mounting style and a rectangular 3-cavity connector layout, so matching the original switch design is important for proper fitment. Confirm the vehicle is a 1987-1989 Ford Mustang with tilt steering wheel before replacement.
Quality Assurance
Standard Ignition builds this switch with robust materials and copper alloy conductors, then tests each unit for mechanical and electrical switching performance. That validation supports consistent operation in daily service use.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1989 | Ford | Mustang | N/A | Compatible with vehicles with tilt steering wheel. |
| 1989 | Ford | Mustang | N/A | — |
| 1988 | Ford | Mustang | N/A | Compatible with vehicles with tilt steering wheel. |
| 1988 | Ford | Mustang | N/A | — |
| 1987 | Ford | Mustang | N/A | — |
| 1987 | Ford | Mustang | N/A | Compatible with vehicles with tilt steering wheel. |
