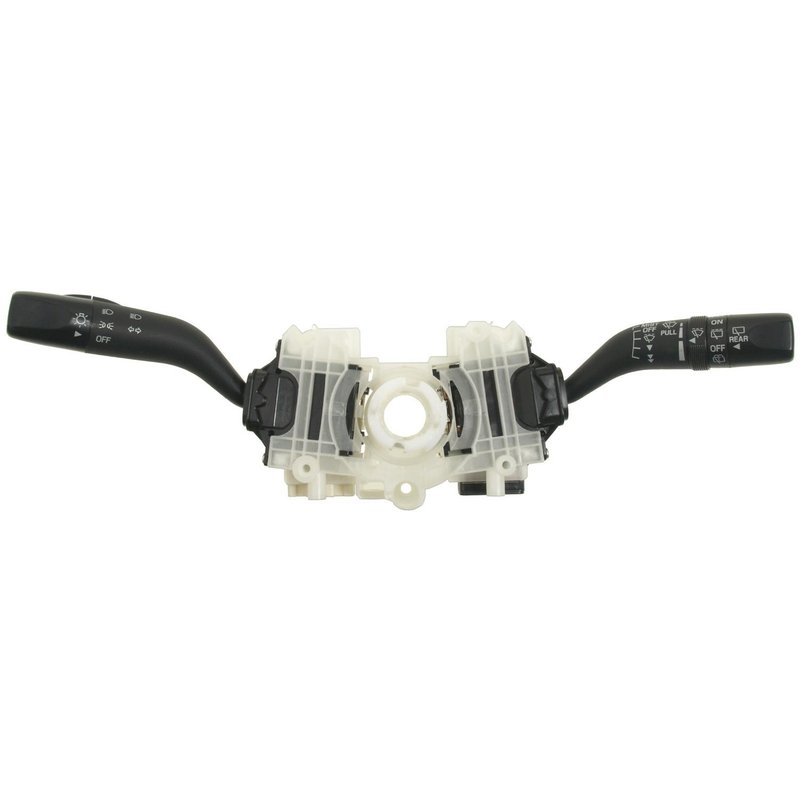

Standard Ignition CBS-1190 Headlight Dimmer Switch

Headlight Dimmer Switch for Ford, Mercury, and Mazda

Standard Ignition CBS-1190 is a new headlight dimmer switch built for direct replacement in select Ford, Mercury, and Mazda vehicles. It combines lighting, turn signal, wiper, and washer functions in one column-mounted switch assembly for dependable driver control.

• Bolt-on attachment with 2 rectangular female connectors
• 27 blade terminals for secure electrical connection
• Combination switch with headlight, high beam, turn signal, and wiper functions
• Includes indicator markings, latching high beam operator, and momentary high beam flasher
• 12-volt electrical design
• Rear window washer spray and rear window wiper delay control included
• Windshield washer spray, windshield wiper delay, and windshield wiper speed settings included
• 3 windshield wiper delay settings and 3 windshield wiper speed settings

Detailed Product Overview

Built with copper alloy conductors and high-grade materials, CBS-1190 is engineered for stable electrical conductivity and low resistive loss. Each unit is 100% tested for mechanical and electrical switching performance before release. This part is a direct-fit headlight dimmer switch for 2005-2007 Ford Escape, 2005-2007 Mercury Mariner, and 2005-2006 Mazda Tribute without auto headlight control. Standard Ignition CBS-1190 also cross-references 1S8003 for the same application.

Common Problems This Switch Can Address

• Inoperative or intermittent headlight dimmer function
• High beams that do not latch or flash correctly
• Turn signal or directional indicator control issues
• Windshield wiper delay or speed selection problems
• Washer spray control faults at the steering column switch

Installation Notes and Tips

Verify the vehicle is equipped without auto headlight control before ordering. Match the connector style, terminal count, and switch functions to the original unit before installation. Because this is a bolt-on combination switch, careful alignment of the column-mounted assembly helps ensure proper operation of the headlight dimmer, turn signal, and wiper controls after replacement.

Quality Assurance

Standard Ignition builds this switch with robust materials and copper alloy conductors to support consistent electrical performance. CBS-1190 is 100% tested for both mechanical action and electrical switching before it leaves production.
