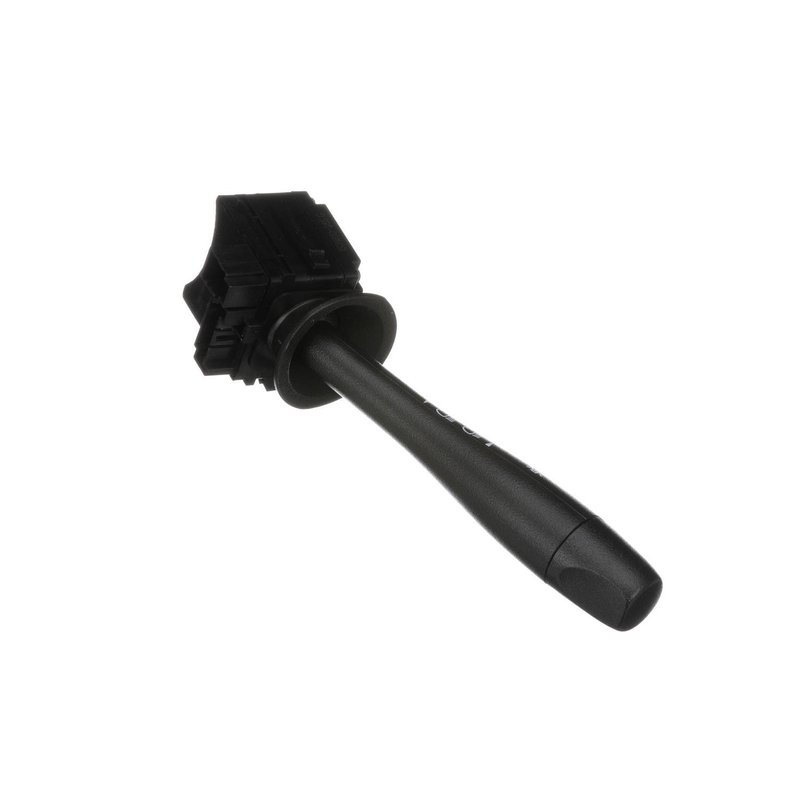

Standard Ignition CBS-1202 Headlight Dimmer Switch

Headlight Dimmer Switch for GM Applications

Standard Ignition CBS-1202 is a new headlight dimmer switch built for direct replacement in select Chevrolet, Pontiac, and Saturn vehicles. It combines a bolt-on design, 12-volt operation, and a rectangular female connector layout for service-focused repairs on the steering column switch assembly.

• Bolt-on attachment for straightforward replacement
• Black plastic finish with displayed indicator markings
• Female connector with 2 cavities and 12 pin terminals
• Includes main light operator, running light operator, turn signal control, latching high beam operator, and momentary high beam flasher
• 12-volt electrical design for vehicle lighting control circuits
• New part with 100% tested mechanical and electrical switching performance

Detailed Product Overview

Standard Ignition CBS-1202 is a headlight dimmer switch engineered with copper alloy conductors to support strong electrical conductivity and low resistive loss. The switch is built with robust materials for daily service use and is tested to verify both mechanical action and electrical switching performance. For technicians replacing a worn multifunction switch, CBS-1202 provides the lighting and signal functions needed for proper column control in applications such as Chevrolet HHR, Chevrolet Cobalt, Pontiac G5, Pontiac Sky, Pontiac Solstice, Pontiac Torrent, Chevrolet Equinox, and Pontiac Pursuit. This part cross-references Dorman - HELP 2330901 for the same application.

Vehicle Fitment

• Fits 2006-2011 Chevrolet HHR, N/A
• Fits 2005-2010 Chevrolet Cobalt, N/A
• Fits 2007-2010 Pontiac G5, N/A
• Fits 2007-2010 Saturn Sky, N/A
• Fits 2007-2009 Chevrolet Equinox, N/A; Single Lever Multifunction Switch Assembly - Windshield Wiper Switch
• Fits 2006-2009 Pontiac Solstice, N/A
• Fits 2007-2009 Pontiac Torrent, N/A; Single Lever Multifunction Switch Assembly - Windshield Wiper Switch
• Fits 2005-2006 Pontiac Pursuit, N/A

Common Repair Uses

• Restores headlight dimmer operation when the original switch is worn or intermittent
• Addresses high beam control issues, including latching and momentary flash functions
• Corrects turn signal or directional indicator switch faults
• Replaces a damaged multifunction switch with lighting and signal controls
• Helps resolve problems with main light or running light operator function

Installation Notes and Quality

Verify connector style, terminal count, and vehicle application before installation. This switch uses a bolt-on mounting method and a female rectangular connector layout, so matching the original column switch configuration is important for proper fitment. Standard Ignition tests each part for mechanical and electrical switching performance and uses copper alloy conductors to support consistent circuit operation.

Standard Ignition CBS-1202 is a practical replacement for drivers and repair shops servicing Chevrolet HHR, Chevrolet Cobalt, Pontiac G5, and related GM models where headlight dimmer and multifunction switch operation must be restored.
