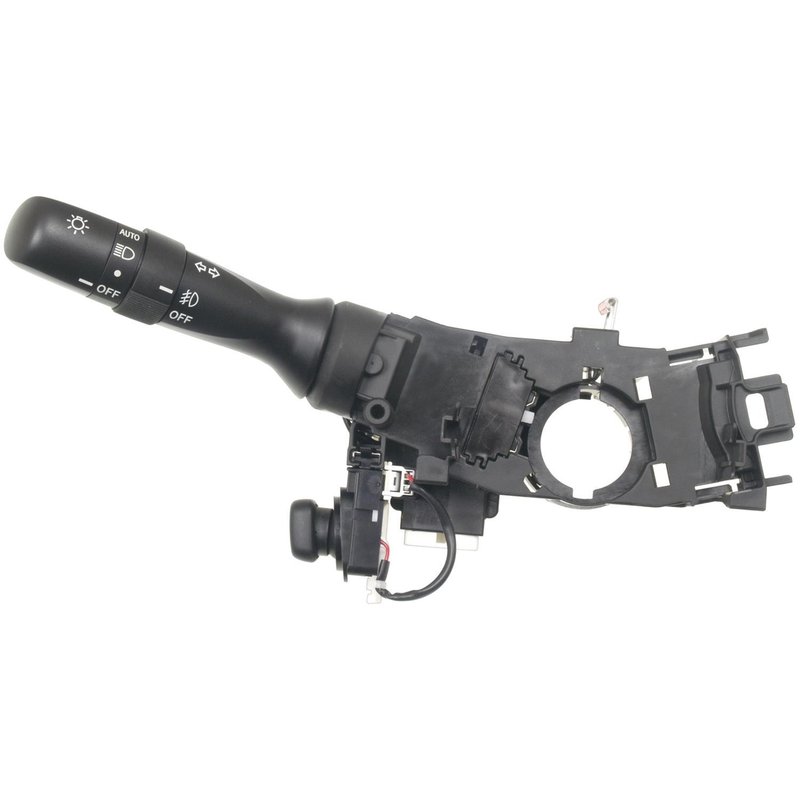

Standard Ignition CBS-1204 Headlight Dimmer Switch

Headlight Dimmer Switch for Toyota and Lexus

Standard Ignition CBS-1204 is a new combination headlight dimmer switch for select Toyota and Lexus vehicles with the listed equipment. It integrates headlight, high-beam, turn signal, fog light, running light, and indicator functions into one direct-fit electrical switch assembly.

Key Features

• Combination switch with headlight dimmer and turn signal control
• Includes main light operator, latching high beam operator, and momentary high beam flasher
• Fog light operator included
• Running light operator included
• Displayed indicator markings included
• 12-volt electrical design
• Snap-fit attachment method with 1 female rectangular connector
• 15-pin male terminals

Detailed Description

Standard Ignition CBS-1204 is built as a replacement combination switch for vehicles that use a single multifunction steering-column control for exterior lighting and signaling. It is specified for select 2004-2008 Toyota Prius, 2007-2008 Toyota Tundra, 2008 Toyota Sequoia, 2004-2007 Lexus RX350, and 2004-2006 Lexus RX330 applications listed below. This part number, CBS-1204, is a direct replacement option for drivers addressing worn, intermittent, or nonresponsive lighting controls on these Toyota and Lexus models.

This part cross-references OE-style numbers such as 841400E010 and DL6610 for the same application.

Vehicle Fitment

• Fits 2008 Toyota Sequoia, N/A — vehicles without tilt wheel, with fog lights, and with auto headlights; also listed for vehicles with power tilt and telescopic steering, fog lights, and auto headlights.
• Fits 2007-2008 Toyota Tundra, N/A — vehicles without tilt wheel, with fog lights, and with auto headlights.
• Fits 2007 Lexus RX350, N/A — vehicles without tilt wheel, with fog lights, and with auto headlights.
• Fits 2004-2006 Lexus RX330, N/A — without tilt wheel; with auto headlights; built in Canada.
• Fits 2005-2006 Lexus RX330, N/A — without tilt wheel; with fog lights; with auto headlights; built in Canada.
• Fits 2004 Lexus RX330, N/A — without tilt wheel; with fog lights; with auto headlights; built in Japan.
• Fits 2005 Toyota Prius, N/A — without tilt wheel; with fog lights; with auto headlights; to 8/04.
• Fits 2005 Toyota Prius, N/A — with fog lights; with auto headlights; to 8/04.
• Fits 2004 Toyota Prius, N/A — vehicles without tilt wheel, with fog lights, and with auto headlights.

Installation Notes and Tips

Verify the vehicle’s steering-wheel configuration, fog light equipment, and auto-headlight setup before ordering. Match the connector shape, terminal count, and switch functions to the original unit, and confirm the build notes for Lexus RX330 and Toyota Prius applications. Because this is a steering-column electrical switch, careful alignment and connector inspection are important during installation.

Quality Assurance

Standard Ignition supplies this CBS-1204 switch as a new replacement electrical component with OE-style fitment details for the listed Toyota and Lexus applications. Confirm all vehicle options against the fitment notes to ensure the correct part selection.
