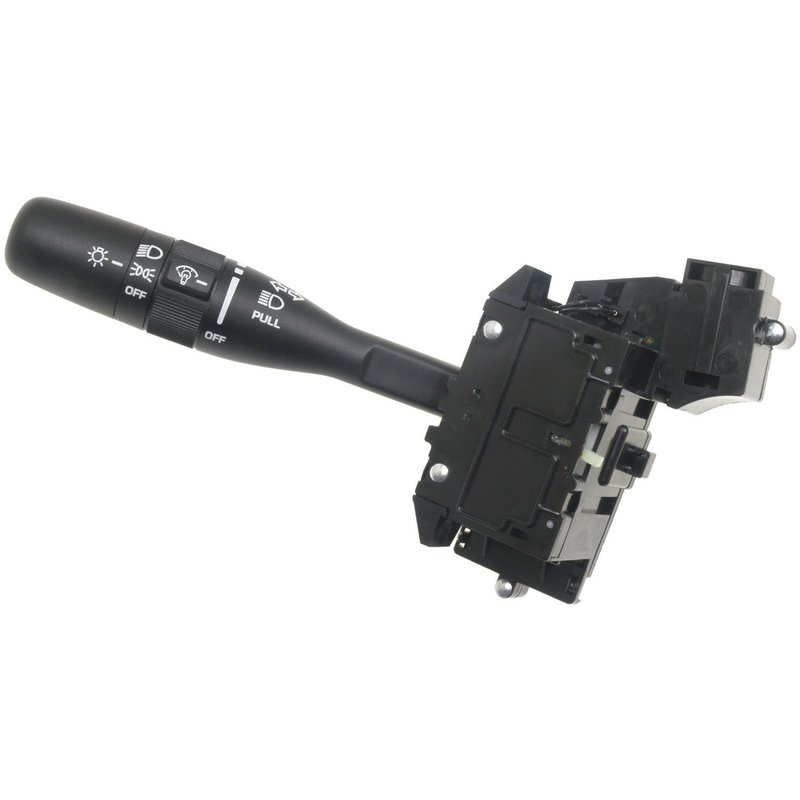

Standard Ignition CBS-1209 Headlight Dimmer Switch

Reliable Headlight Dimmer Switch for Chrysler Pacifica

The Standard Ignition CBS-1209 headlight dimmer switch is designed specifically for Chrysler Pacifica models. This new, bolt-on switch offers precise control over your vehicle's lighting functions, ensuring safe and efficient operation of headlights and turn signals.

Key Features of Standard Ignition CBS-1209

• Direct bolt-on attachment method for secure installation
• Single female square connector with one cavity for easy wiring
• Includes turn signal and directional indicator control
• Equipped with latching high beam and momentary high beam flasher operators
• Indicator markings clearly displayed for user convenience
• 12 male blade terminals supporting 12-volt electrical systems
• New part, not remanufactured, ensuring reliable performance

Detailed Product Description

The Standard Ignition CBS-1209 headlight dimmer switch is engineered to meet the electrical and lighting control needs of Chrysler Pacifica vehicles. Featuring a bolt-on attachment method, this switch installs securely without modification. The single female square connector with one cavity simplifies the connection process, while the 12 male blade terminals provide robust electrical contact. This switch integrates multiple lighting functions including main light operation, turn signal control, and both latching and momentary high beam functions. Indicator markings are included on the switch for clear identification of controls, enhancing driver usability. Designed for 12-volt systems, this new switch replaces worn or faulty dimmer switches to restore proper lighting control.

Common Applications and Issues Addressed

• Restores headlight dimming and high beam flashing functions
• Replaces malfunctioning turn signal and directional indicator controls
• Fixes intermittent or non-responsive headlight switch operation
• Eliminates electrical connection issues caused by damaged terminals
• Resolves problems with indicator markings visibility on the switch

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical shorts
• Verify connector orientation matches the female square connector on the switch
• Use appropriate tools to remove the old switch and bolt on the new CBS-1209 securely
• Check all terminal connections for tightness and proper contact after installation
• Test all lighting functions including turn signals, high beams, and dimmer operation before driving

Quality Assurance and Warranty

Standard Ignition provides this CBS-1209 headlight dimmer switch as a new replacement part, manufactured to meet or exceed OEM specifications for Chrysler Pacifica vehicles. The part undergoes rigorous quality control to ensure durability and reliable electrical performance. Warranty coverage details should be confirmed with the point of purchase, but Standard Ignition typically offers limited warranties on new electrical components.
