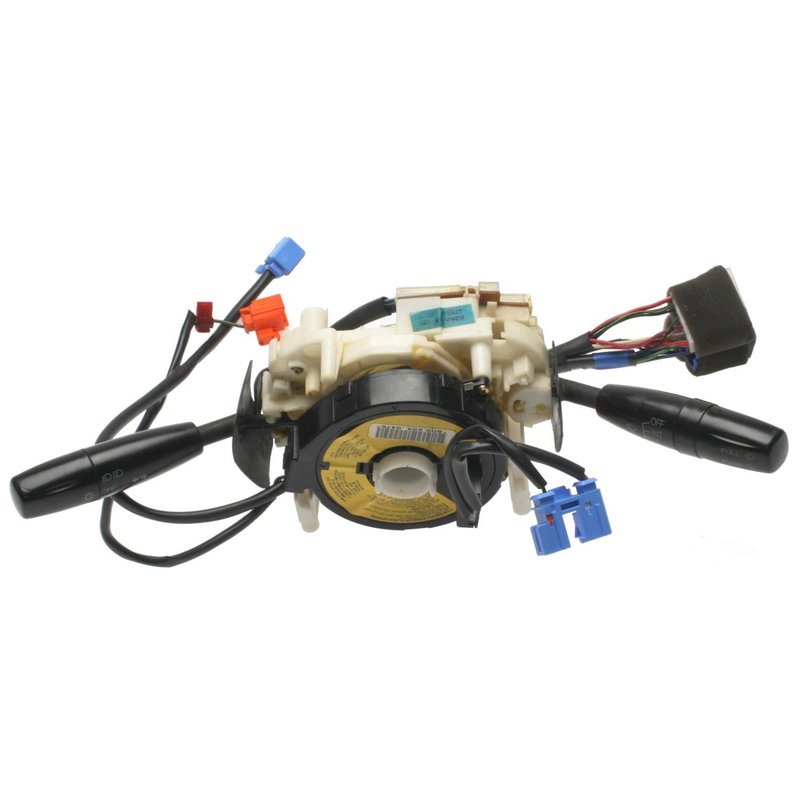

Standard Ignition CBS-1224 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1224 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black, White, Yellow |
| Connector Gender | Female; Male |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Hardware Included | No |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Lighting Controls Included | Headlights; High Beams |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 6 |
| Number Of Wiper Delay Settings | 1 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male; Female |
| Terminal Type | Blade |
| Turn Signal Control Included | Turn Signal Control |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Wiper Control Options Included | Windshield on/off; Mist |
| Wire Length (in) | 10 |
| Wire Length (mm) | 254 |
| Fits | Kia · 4 vehicles |
Bolt-on replacement. Installs without modifications for a straightforward swap.
Integrated controls. Includes headlights, high beams, turn signal, and wiper functions.
Complete switch assembly. New unit with 6 connectors and 22 blade terminals.
Cross-references Standard Ignition CBS-1224, 0K2AT66120 and DL6630 for the same application. See all 4.
Headlight Dimmer Switch for Kia Sephia
Standard Ignition CBS-1224 is a new headlight dimmer switch for select 1998-2000 Kia Sephia applications. It combines headlight, high beam, turn signal, and windshield wiper/washer controls in one OE-style replacement unit for direct service on the steering column.
- Fits 1998-2000 Kia Sephia, N/A, w/ Fixed Intermittent Wipers; w/ Cruise Control
- Fits 1998 Kia Sephia, N/A, w/o Intermittent Wipers; w/ Cruise Control
- Headlight and high beam control with latching high beam operator and momentary high beam flasher
- Turn signal control included
- Windshield washer spray, windshield wiper delay, and windshield wiper speed controls included
- 6-pin rectangular connector design with 22 blade terminals
- 12-volt electrical component with bolt-on attachment method
- Displayed indicator markings included for easier identification of switch positions
Detailed Product Overview
Standard Ignition CBS-1224 is built for Kia Sephia models that use an integrated steering-column switch assembly. This headlight dimmer switch controls the main lights and high beams, includes turn signal operation, and adds windshield wiper functions such as on/off, mist, delay, speed selection, and washer spray. The unit uses a rectangular 6-cavity connector layout with male and female terminals and is a direct replacement for service on the 1998-2000 Kia Sephia, including the 1998 Kia Sephia with no intermittent wipers and the 1998-2000 Kia Sephia with fixed intermittent wipers and cruise control. Part number CBS-1224 is also referenced by OE and aftermarket cross numbers used for the same application.
This part cross-references 0K2AT66120 and DL6630 for the same application.
Common Problems This Part Can Address
- Headlights or high beams not switching correctly
- Turn signal operation that is intermittent or unresponsive
- Wiper delay, mist, or speed controls that no longer function properly
- Washer spray control issues at the steering-column switch
- Worn or damaged switch contacts in the original assembly
Installation Notes and Quality Assurance
Installation is bolt-on and uses the existing connector layout for the listed Kia Sephia applications. Verify connector shape, terminal count, and vehicle equipment before installation, especially cruise control and intermittent wiper configuration. Standard Ignition CBS-1224 is a new replacement part built for direct service use.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2000 | Kia | Sephia | N/A | w/ Fixed Intermittent Wipers; w/ Cruise Control |
| 1999 | Kia | Sephia | N/A | w/ Fixed Intermittent Wipers; w/ Cruise Control |
| 1998 | Kia | Sephia | N/A | w/ Fixed Intermittent Wipers; w/ Cruise Control |
| 1998 | Kia | Sephia | N/A | w/o Intermittent Wipers; w/ Cruise Control |
