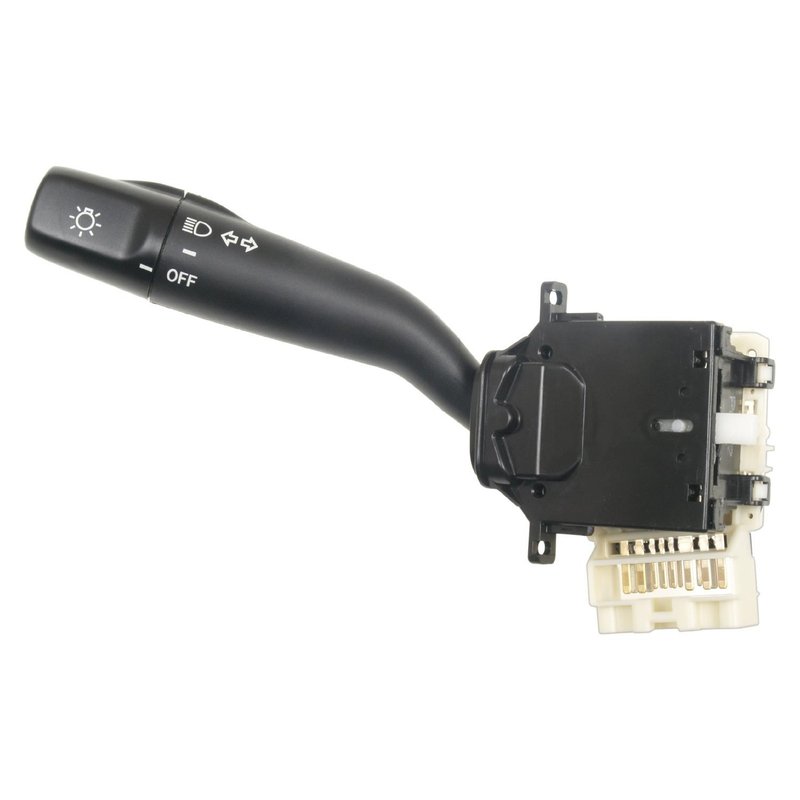

Standard Ignition CBS-1236 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1236 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black, White |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Toyota · 21 vehicles |
Bolt-on installation. Plug-in design with a single rectangular connector.
Combination switch. Includes main light, high beam, and turn signal controls.
New part. Plastic finish with clear indicator markings.
Cross-references Beck/Arnley 201-2198, Rostra Powertrain Controls 64-0192 and Standard Ignition CBS-1236 for the same application. See all 10.
Headlight Dimmer Switch for Toyota Tundra
Restore reliable lighting control with this Standard Ignition headlight dimmer switch, part number CBS-1236. It is a direct electrical replacement for select 2000-2006 Toyota Tundra models and combines the main light operator, latching high beam function, momentary high beam flasher, and turn signal control in one assembly.
- Fits 2000-2006 Toyota Tundra
- Combination switch with headlight dimmer and turn signal functions
- 12-volt electrical component with one rectangular plug-in connector
- Female connector with 16 blade terminals
- Bolt-on attachment method for a secure mounting point
- Black and white plastic finish
- Indicator markings included for driver reference
- New replacement part from Standard Ignition
Detailed Product Overview
The CBS-1236 is built as a combination switch for the steering column, giving the driver control over the headlights and turn signals from one unit. It includes the main light operator, latching high beam operator, and momentary high beam flasher, while also providing turn signal and directional indicator operation. For Toyota Tundra owners replacing a worn or intermittent switch, this part number CBS-1236 offers the correct electrical layout and connector style for the listed applications.
This part cross-references Beck/Arnley 201-2198 and Rostra Powertrain Controls 64-0192 for the same application.
What It Helps Fix
- Headlights that do not switch properly between low and high beam
- High beam flasher operation that is inconsistent or inoperative
- Turn signal control problems at the steering column
- Worn switch feel, sticking, or loss of indicator function
- Electrical faults caused by damaged internal contacts or terminals
Installation Notes and Tips
Verify connector shape, terminal count, and vehicle fitment before installation. This switch uses a single rectangular plug-in connector with male blade terminals and bolt-on mounting. It is not listed for Toyota Tundra models equipped with fog lights, so confirm your vehicle configuration before ordering. Match the original switch layout and indicator markings to ensure proper operation after installation.
Quality Assurance
Standard Ignition supplies this CBS-1236 as a new replacement electrical switch for the specified Toyota Tundra applications. The part is built to match the listed connector and function requirements for direct replacement use.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Toyota | Tundra | — | — | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2006 | Toyota | Tundra | 4.0L | V6 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2006 | Toyota | Tundra | 4.7L | V8 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2005 | Toyota | Tundra | — | — | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2005 | Toyota | Tundra | 4.0L | V6 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2005 | Toyota | Tundra | 4.7L | V8 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2004 | Toyota | Tundra | — | — | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2004 | Toyota | Tundra | 3.4L | V6 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2004 | Toyota | Tundra | 4.7L | V8 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2003 | Toyota | Tundra | 3.4L | V6 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2003 | Toyota | Tundra | 4.7L | V8 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2003 | Toyota | Tundra | — | — | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2002 | Toyota | Tundra | — | — | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2002 | Toyota | Tundra | 3.4L | V6 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2002 | Toyota | Tundra | 4.7L | V8 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2001 | Toyota | Tundra | — | — | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2001 | Toyota | Tundra | 4.7L | V8 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2001 | Toyota | Tundra | 3.4L | V6 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2000 | Toyota | Tundra | 3.4L | V6 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2000 | Toyota | Tundra | 4.7L | V8 | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2000 | Toyota | Tundra | — | — | N/A | Not compatible with vehicles equipped with Fog Lights. |
