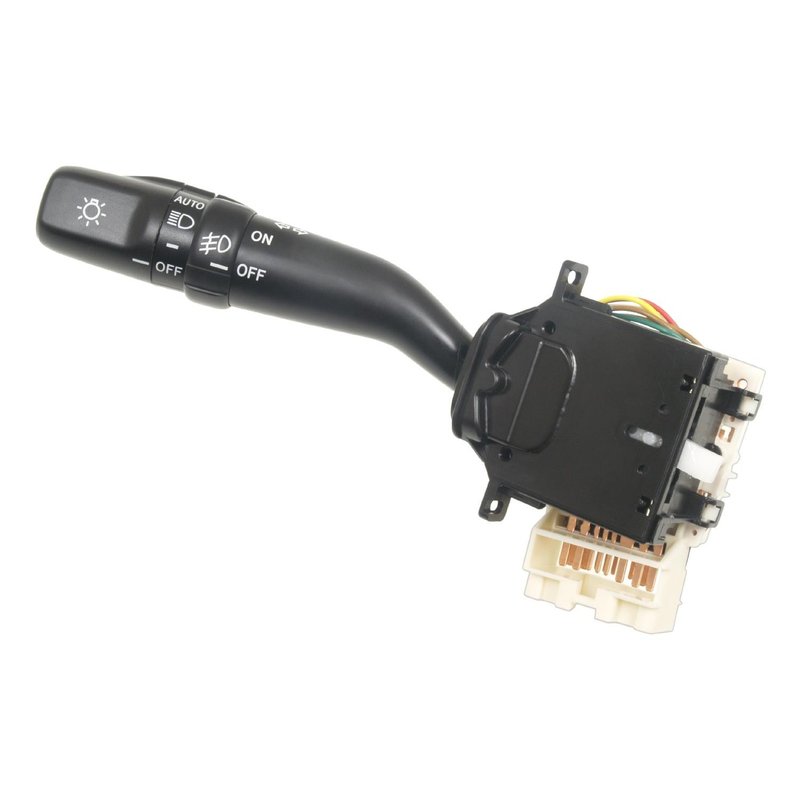

Standard Ignition CBS-1245 Headlight Dimmer Switch
Overview of Standard Ignition Headlight Dimmer Switch CBS-1245
The Standard Ignition CBS-1245 headlight dimmer switch is designed for reliable electrical control in select Toyota vehicles. This new, bolt-on switch provides essential lighting functions for Toyota Avalon, Sienna, and Solara models, ensuring proper operation of headlights and turn signals.
- Bolt-on attachment method for secure installation
- Female rectangular connector with one cavity
- Includes fog light, running light, and turn signal operators
- Features latching high beam and momentary high beam flasher functions
- Indicator markings displayed for ease of use
- Operates on 12-volt electrical systems
- Equipped with 16 male blade terminals for reliable connections
Detailed Product Description
The Standard Ignition CBS-1245 headlight dimmer switch is engineered to meet the electrical and lighting control needs of Toyota Avalon, Sienna, and Solara vehicles. This switch integrates multiple lighting functions including main light operation, fog light control, running lights, and turn signal indicators. It features a bolt-on attachment method for straightforward replacement and a single female rectangular connector with 16 male blade terminals, ensuring compatibility with the vehicle’s wiring harness. The switch supports both latching high beam operation and momentary high beam flashing, providing full control over headlight functions. Indicator markings are clearly displayed on the switch for intuitive use, enhancing driver safety and convenience.
Common Applications and Issues Addressed
- Replacement for faulty or worn headlight dimmer switches in Toyota Avalon, Sienna, and Solara
- Restores proper operation of turn signals and directional indicators
- Resolves issues with fog light activation and running light control
- Fixes problems with high beam latching and flashing functions
- Eliminates electrical connection faults due to damaged terminals or connectors
Installation Notes and Tips
- Ensure vehicle ignition is off before beginning installation
- Use appropriate tools to remove the old switch and bolt on the new CBS-1245 securely
- Verify the female rectangular connector aligns correctly with the vehicle wiring harness
- Check all lighting functions after installation to confirm proper operation
- Consult the vehicle’s service manual for specific removal and installation procedures
Quality Assurance and Warranty
The Standard Ignition CBS-1245 headlight dimmer switch is a new replacement part manufactured to meet OEM specifications for Toyota Avalon, Sienna, and Solara models. It is designed for durability and reliable electrical performance. Standard Ignition parts typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation for detailed warranty terms and conditions.
| Brand | Standard Ignition |
| Part Number | CBS-1245 |
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | Yes |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
This part fits 16 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Toyota | Solara | N/A | Compatible with vehicles equipped with Canada Emissions. | ||
| 2006 | Toyota | Solara | N/A | Compatible with vehicles equipped with U.S. Emissions for Distributor Ignition Pickup. | ||
| 2005 | Toyota | Solara | N/A | Compatible with vehicles equipped with U.S. Emissions for Distributor Ignition Pickup. | ||
| 2005 | Toyota | Solara | N/A | Compatible with vehicles equipped with Canada Emissions. | ||
| 2004 | Toyota | Solara | N/A | Compatible with vehicles equipped with Canada Emissions. | ||
| 2003 | Toyota | Sienna | 3.0L | V6 | N/A | |
| 2003 | Toyota | Sienna | N/A | w/ Fog Lights; To 1/03 | ||
| 2003 | Toyota | Sienna | 3.0L | V6 | N/A | w/ Fog Lights; To 1/03 |
| 2002 | Toyota | Sienna | 3.0L | V6 | N/A | Compatible with vehicles equipped with fog lights. |
| 2002 | Toyota | Sienna | 3.0L | V6 | N/A | |
| 2002 | Toyota | Sienna | N/A | Compatible with vehicles equipped with fog lights. | ||
| 2001 | Toyota | Sienna | N/A | w/ Fog Lights; From 8/00 | ||
| 2001 | Toyota | Sienna | 3.0L | V6 | N/A | |
| 2001 | Toyota | Sienna | 3.0L | V6 | N/A | w/ Fog Lights; From 8/00 |
| 1999 | Toyota | Avalon | N/A | Compatible with vehicles equipped with fog lights. | ||
| 1998 | Toyota | Avalon | N/A | Compatible with vehicles equipped with fog lights. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
