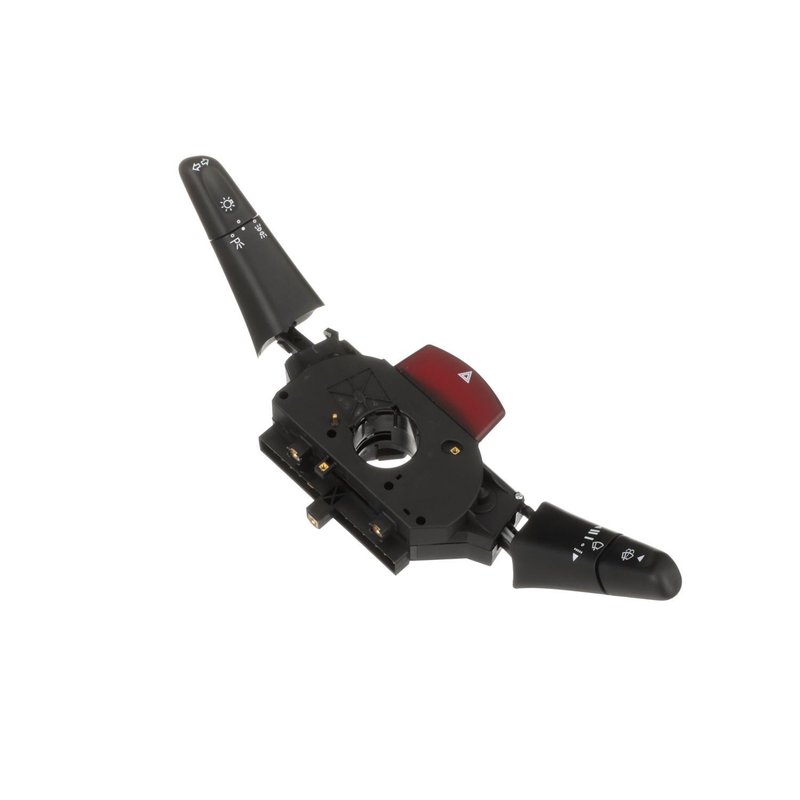

Standard Ignition CBS-1261 Headlight Dimmer Switch

Overview of Standard Ignition Headlight Dimmer Switch CBS-1261

The Standard Ignition Headlight Dimmer Switch CBS-1261 is designed for reliable operation in Dodge Sprinter 2500 and Sprinter 3500 vehicles. This new combination switch offers essential lighting and signaling functions with a durable plastic finish and bolt-on attachment for straightforward installation.

• Compatible with Dodge Sprinter 2500 and Sprinter 3500 models
• Combination switch with headlight dimmer, turn signal, and high beam functions
• Bolt-on attachment method for secure mounting
• Black plastic finish with rectangular female connector
• Includes latching high beam operator and momentary high beam flasher
• Indicator markings for easy identification
• 22 male blade terminals with 2 connector cavities
• Supports 3 wiper speed settings and 1 wiper delay setting

Detailed Product Description

The CBS-1261 headlight dimmer switch from Standard Ignition is engineered to meet the electrical and lighting control needs of Dodge Sprinter 2500 and 3500 vehicles. This combination switch integrates multiple functions including main light operation, turn signal control, and high beam activation with both latching and momentary flash modes. The switch features a black plastic finish and a rectangular female connector with two cavities, ensuring compatibility with the vehicle’s wiring harness. With 22 male blade terminals, it provides a secure and reliable electrical connection. The bolt-on attachment method simplifies installation and replacement.

Common Applications and Problem Resolution

• Replaces faulty or unresponsive headlight dimmer switches in Dodge Sprinter 2500 and 3500
• Restores proper turn signal and high beam operation
• Fixes issues with inconsistent wiper speed or delay settings
• Resolves problems with indicator markings visibility and function
• Addresses electrical connection failures due to worn terminals or connectors

Installation Notes and Tips

Installation of the Standard Ignition CBS-1261 headlight dimmer switch requires basic automotive electrical knowledge. The bolt-on attachment method allows for secure mounting without modification. Ensure the vehicle’s battery is disconnected before beginning installation to prevent electrical shorts. Verify the rectangular female connector aligns correctly with the vehicle harness and that all 22 blade terminals are fully seated. After installation, test all lighting and signaling functions including turn signals, high beams, and wiper settings to confirm proper operation.

Quality Assurance and Warranty

This headlight dimmer switch is a new Standard Ignition part, manufactured to meet OEM specifications for Dodge Sprinter 2500 and 3500 models. Standard Ignition parts undergo rigorous quality control to ensure durability and reliable performance. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
