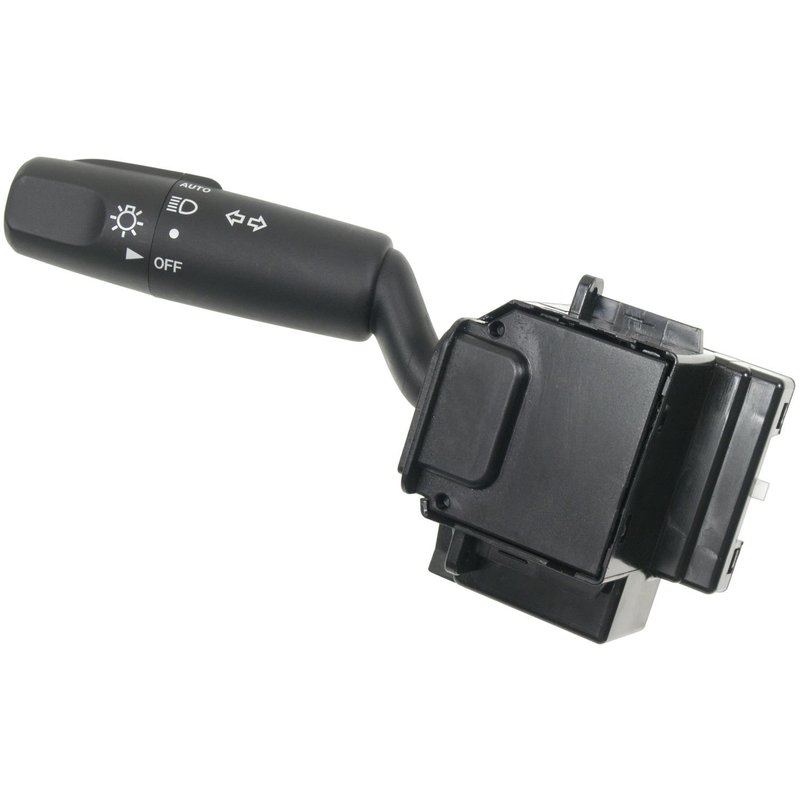

Standard Ignition CBS-1299 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1299 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Mazda · 15 vehicles |
Bolt-on installation. Female connector, rectangular shape, and 11-pin terminal layout.
Complete lighting control. Includes main light, high beam, running light, and turn signal functions.
New switch. Built for 12-volt electrical systems.
Cross-references Standard Ignition CBS-1299, BP8L66122 and DL6706 for the same application. See all 5.
Headlight Dimmer Switch for Mazda 3 and Mazda 5
Standard Ignition CBS-1299 is a new headlight dimmer switch for select Mazda applications with automatic headlights. It combines headlight, running light, turn signal, and high-beam control in one OE-style switch assembly for direct replacement service. This CBS-1299 is built for 12-volt systems and uses a bolt-on attachment with a single rectangular female connector.
Key Features
- Headlight dimmer switch for select Mazda 3 and Mazda 5 models
- Fits 2004-2010 Mazda 3, w/o fog lights; w/ auto headlights
- Fits 2006-2010 Mazda 5, w/o fog lights; w/ auto headlights
- Fits 2007-2009 Mazda 5, w/o fog lights; w/ variable intermittent wipers; w/ auto headlights
- Includes main light operator, running light operator, turn signal control, latching high beam operator, and momentary high beam flasher
- Displayed indicator markings for clear driver input
- 12-volt electrical design with 11 male pin terminals
- New replacement part, Standard Ignition CBS-1299
Detailed Description
Standard Ignition CBS-1299 is a replacement headlight dimmer switch engineered for Mazda 3 and Mazda 5 vehicles equipped with automatic headlights and without fog lights. It provides the primary lighting and signal functions at the steering column, including headlight selection, running lights, turn signals, and both latching and momentary high-beam operation. The rectangular single-connector design and bolt-on mounting support direct service replacement on the listed applications. This part cross-references Monroe Shocks & Struts (e.g., BP8L66122, DL6706) for the same application.
What It Helps Fix
- Intermittent or inoperative headlight switching
- High beams that do not latch or flash correctly
- Turn signal control issues at the steering column
- Running light operation problems
- Worn or damaged switch contacts in the original unit
Installation Notes and Tips
Verify vehicle equipment before ordering: this switch is listed for Mazda 3 and Mazda 5 models with auto headlights and without fog lights, with the additional wiper configuration noted for 2007-2009 Mazda 5. Confirm connector shape, terminal count, and mounting style against the original part before installation. Standard Ignition CBS-1299 uses a female connector with 11 male pin terminals and a bolt-on attachment method.
Quality Assurance
Standard Ignition supplies electrical replacement parts for service applications, and this switch is new, not remanufactured. Use the fitment details above to confirm the correct application for your Mazda 3 or Mazda 5 before installation.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Mazda | 3 | — | 2.5L | L4 | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2010 | Mazda | 5 | — | — | — | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2009 | Mazda | 3 | — | — | — | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2009 | Mazda | 5 | — | — | — | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2009 | Mazda | 5 | — | 2.3L | L4 | N/A | w/o Fog Lights; w/ Variable Intermittent Wipers; w/ Auto Headlights |
| 2008 | Mazda | 3 | — | — | — | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2008 | Mazda | 5 | — | 2.3L | L4 | N/A | w/o Fog Lights; w/ Variable Intermittent Wipers; w/ Auto Headlights |
| 2008 | Mazda | 5 | — | — | — | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2007 | Mazda | 3 | — | — | — | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2007 | Mazda | 5 | — | — | — | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2007 | Mazda | 5 | — | 2.3L | L4 | N/A | w/o Fog Lights; w/ Variable Intermittent Wipers; w/ Auto Headlights |
| 2006 | Mazda | 3 | — | — | — | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2006 | Mazda | 5 | — | — | — | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2005 | Mazda | 3 | Sedan | — | — | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2004 | Mazda | 3 | Sedan | — | — | N/A | w/o Fog Lights; w/ Auto Headlights |
