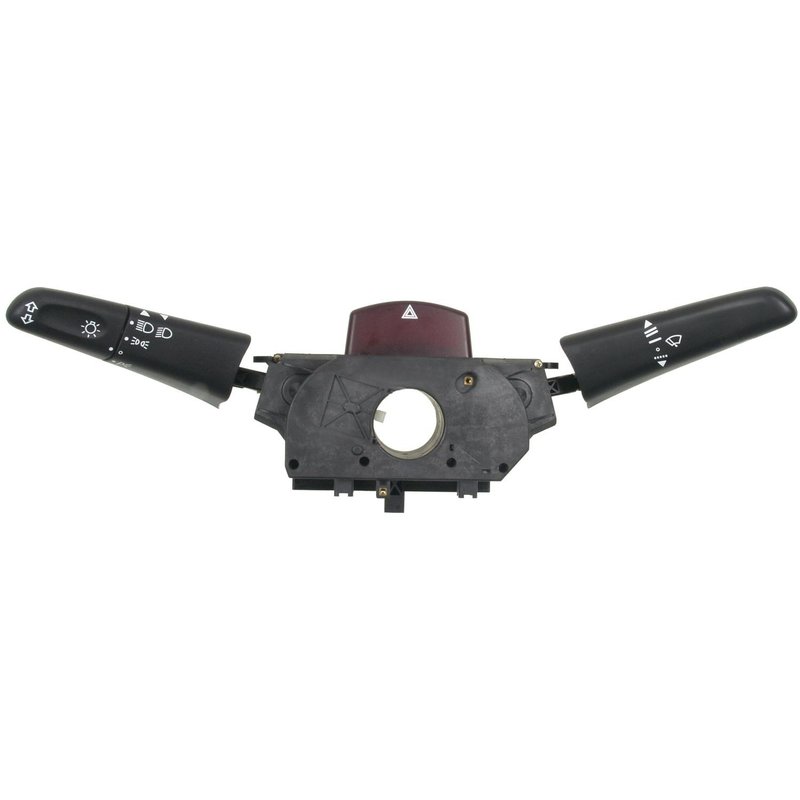

Standard Ignition CBS-1309 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1309 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 2 |
| Number Of Wiper Delay Settings | 1 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | Mercedes-Benz · 9 vehicles |
Bolt-on replacement. Female 2-cavity connector for straightforward installation.
Integrated controls. Includes turn signal, headlight, and wiper functions in one switch.
Clear markings. Displayed indicators help make operation easy to read.
Cross-references Beck/Arnley 201-2148, Standard Ignition CBS-1309 and VEMO V30-80-1765 for the same application. See all 9.
Headlight Dimmer Switch for Mercedes-Benz ML-Class
Restore reliable lighting control with this Standard Ignition headlight dimmer switch, part number CBS-1309. It is a new, bolt-on replacement built for 12-volt systems and direct driver control of the headlight, high-beam, turn signal, washer, and wiper functions.
Key Features
- Fits 1998-2001 Mercedes-Benz ML320, N/A
- Fits 1999-2001 Mercedes-Benz ML430, N/A
- Fits 2000-2001 Mercedes-Benz ML55 AMG, N/A
- Standard Ignition CBS-1309 headlight dimmer switch
- Bolt-on attachment with rectangular female connector design
- 2 connector cavities, 22 blade terminals, 12-volt electrical system
- Includes main light operator, latching high beam operator, momentary high beam flasher, turn signal control, windshield washer spray, windshield wiper delay setting, and windshield wiper speed setting
- Displayed indicator markings included
Detailed Description
The Standard Ignition CBS-1309 is a replacement headlight dimmer switch for Mercedes-Benz ML320, ML430, and ML55 AMG models from 1998 through 2001. It is configured with a female rectangular connector, blade terminals, and bolt-on mounting for a direct electrical replacement in the steering column control circuit. This switch supports headlight operation, high-beam flashing and latching, turn signal control, windshield washer spray, and windshield wiper delay and speed functions.
For drivers searching for a Mercedes-Benz ML320 headlight dimmer switch, a Mercedes-Benz ML430 turn signal and wiper switch, or a Mercedes-Benz ML55 AMG lighting control replacement, CBS-1309 provides the correct OE-style function set for the listed applications. This part cross-references Beck/Arnley 201-2148 for the same application.
Common Problems This Part Can Address
- Intermittent or inoperative headlight dimmer control
- High beams that do not latch or flash correctly
- Turn signal control issues at the steering column
- Windshield wiper delay or speed selection problems
- Washer spray activation faults from the column switch
Installation Notes and Tips
Verify connector shape, terminal count, and vehicle application before installation. This switch uses a bolt-on attachment method and a 2-cavity rectangular female connector with 22 blade terminals. Confirm the existing steering column switch matches the listed electrical configuration for 1998-2001 Mercedes-Benz ML320, 1999-2001 Mercedes-Benz ML430, or 2000-2001 Mercedes-Benz ML55 AMG.
Quality Assurance
Standard Ignition supplies this CBS-1309 as a new replacement electrical switch for the listed Mercedes-Benz ML-Class applications. Its OE-style connector layout and function set support accurate replacement of the original headlight dimmer and multifunction column switch.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2001 | Mercedes-Benz | ML320 | N/A | — |
| 2001 | Mercedes-Benz | ML430 | N/A | — |
| 2001 | Mercedes-Benz | ML55 AMG | N/A | — |
| 2000 | Mercedes-Benz | ML320 | N/A | — |
| 2000 | Mercedes-Benz | ML430 | N/A | — |
| 2000 | Mercedes-Benz | ML55 AMG | N/A | — |
| 1999 | Mercedes-Benz | ML320 | N/A | — |
| 1999 | Mercedes-Benz | ML430 | N/A | — |
| 1998 | Mercedes-Benz | ML320 | N/A | — |
