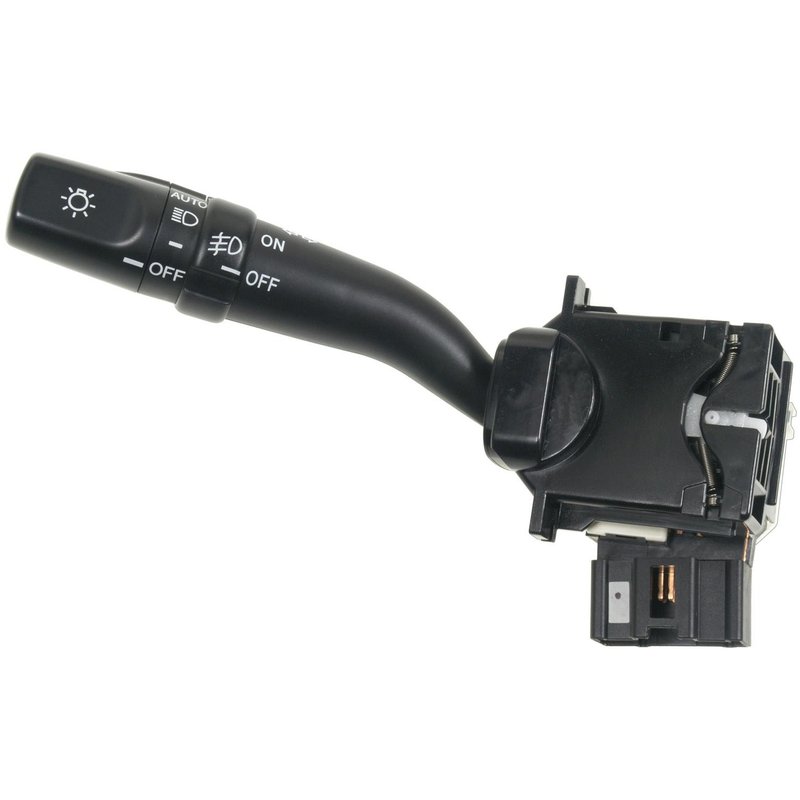

Standard Ignition CBS-1328 Headlight Dimmer Switch

Reliable Headlight Dimmer Switch for Toyota Sequoia

The Standard Ignition CBS-1328 headlight dimmer switch is designed specifically for Toyota Sequoia models, providing precise control over your vehicle's lighting functions. This new, bolt-on switch ensures seamless integration with your vehicle's electrical system.

Key Features of Standard Ignition CBS-1328

• Bolt-on attachment method for secure installation
• Single female rectangular connector with 1 cavity
• Includes fog light, running light, and main light operators
• Turn signal and directional indicator controls integrated
• Latching high beam and momentary high beam flasher included
• Indicator markings clearly displayed for ease of use
• Operates on standard 12-volt electrical systems
• 15 male blade terminals for reliable electrical connections

Detailed Product Description

The Standard Ignition CBS-1328 headlight dimmer switch is engineered to meet the specific electrical and lighting control needs of Toyota Sequoia vehicles. Featuring a bolt-on attachment method, this switch offers a straightforward installation process. The single female rectangular connector with one cavity ensures compatibility with the vehicle’s wiring harness. This switch integrates multiple lighting functions including fog lights, running lights, main lights, and turn signals, all with clear indicator markings for intuitive operation. The inclusion of both latching high beam and momentary high beam flasher operators allows for flexible headlight control. Designed for 12-volt systems, the switch uses 15 male blade terminals to maintain secure and consistent electrical connections.

Common Applications and Issues Addressed

• Replacement for faulty or worn headlight dimmer switches in Toyota Sequoia
• Restores proper operation of fog light and running light controls
• Resolves issues with turn signal and directional indicator malfunctions
• Fixes problems with high beam latching and flashing functions
• Improves overall lighting control reliability and safety

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical shorts
• Verify connector orientation matches the female rectangular connector on the switch
• Use appropriate tools to securely bolt the switch in place
• Check all lighting functions after installation to confirm proper operation
• Consult the Toyota Sequoia service manual for detailed wiring diagrams if needed

Quality Assurance and Warranty

This Standard Ignition headlight dimmer switch is a new, OEM-quality replacement part designed to meet or exceed original equipment specifications. Manufactured with durable materials and tested for reliable performance, the CBS-1328 comes with a limited warranty to protect against defects in material and workmanship. This ensures long-term functionality and peace of mind for Toyota Sequoia owners.
