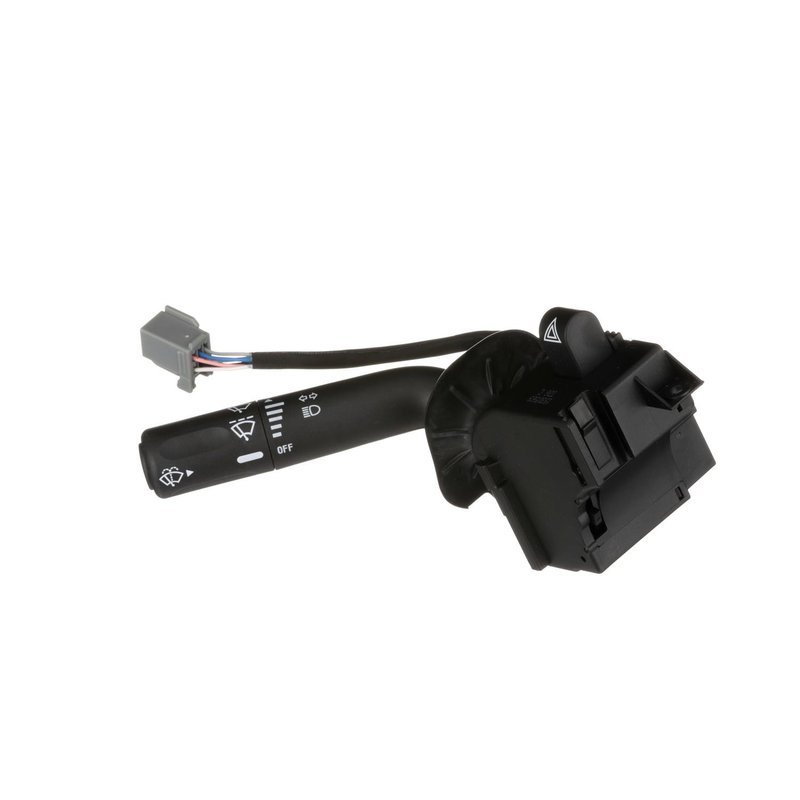

Standard Ignition CBS-1332 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1332 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female; Male |
| Connector Shape | Square |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | No |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 3 |
| Number Of Wiper Delay Settings | 5 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male; Female |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | Ford and Lincoln · 7 vehicles |
Bolt-on installation. Direct replacement switch with a square 3-connector design.
Copper alloy conductors. Deliver superior conductivity with low resistive losses.
100% tested. Verified for mechanical and electrical switching performance.
Cross-references 1S9983, 5L3Z13K359AAA and 53-16906 for the same application. See all 9.
Headlight Dimmer Switch for Ford F-150 and Mark LT
Standard Ignition CBS-1332 is a new headlight dimmer switch built for vehicles that need reliable control of exterior lighting and wiper functions from a single combination switch. It is engineered with copper alloy conductors for strong electrical conductivity and low resistive loss, and it is 100% tested for mechanical and electrical switching performance.
Compatible with 2005 Ford F-150 built from 11/29/04, 2006-2008 Ford F-150, and 2006-2008 Lincoln Mark LT. This Standard Ignition CBS-1332 replacement is a direct-fit solution for drivers searching for a Ford F-150 headlight dimmer switch or Lincoln Mark LT combination switch replacement.
Key Features
- Part number CBS-1332
- Bolt-on attachment method
- 3 connector cavities with square connector shape
- Female and male connector terminals
- Combination switch functions for lighting, turn signal, wiper, and washer control
- Latching high beam operator and momentary high beam flasher included
- Turn signal control included
- Windshield washer spray, wiper delay, and wiper speed settings included
- 5 windshield wiper delay settings and 3 windshield wiper speed settings
- 12-volt electrical system application
- New replacement part
Detailed Description
Standard Ignition CBS-1332 is a headlight dimmer switch designed as a combination switch for the steering column control interface. It manages high beam operation, turn signal signaling, windshield washer spray, and windshield wiper delay and speed selection through a single assembly. The switch uses blade terminals and a 3-cavity square connector layout to match the original electrical interface on supported Ford and Lincoln trucks.
This part cross-references Standard Motor Products (e.g., SW6377, SW7388) for the same application. For buyers comparing Ford F-150 CBS-1332 replacement options, this switch is built to meet the electrical and mechanical demands of daily service use.
Common Problems This Part Can Address
- Intermittent or inoperative high beam switching
- Turn signal control failure at the steering column
- Unresponsive windshield wiper delay or speed selection
- Washer spray control not activating from the switch
- Worn or inconsistent combination switch operation
Installation Notes and Tips
Verify connector shape, terminal count, and vehicle build date before installation. This CBS-1332 uses a bolt-on attachment method and is intended for 12-volt applications with the listed connector configuration. Confirm the vehicle is a 2005 Ford F-150 built from 11/29/04, 2006-2008 Ford F-150, or 2006-2008 Lincoln Mark LT before replacing the original switch.
Quality Assurance
Standard Ignition manufactures this switch with robust materials and copper alloy conductors, then tests each unit for mechanical and electrical switching performance. That validation supports consistent operation in Ford F-150 and Lincoln Mark LT applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Ford | F-150 | N/A | — |
| 2008 | Lincoln | Mark LT | N/A | — |
| 2007 | Ford | F-150 | N/A | — |
| 2007 | Lincoln | Mark LT | N/A | — |
| 2006 | Ford | F-150 | N/A | — |
| 2006 | Lincoln | Mark LT | N/A | — |
| 2005 | Ford | F-150 | N/A | From 11/29/04 |
