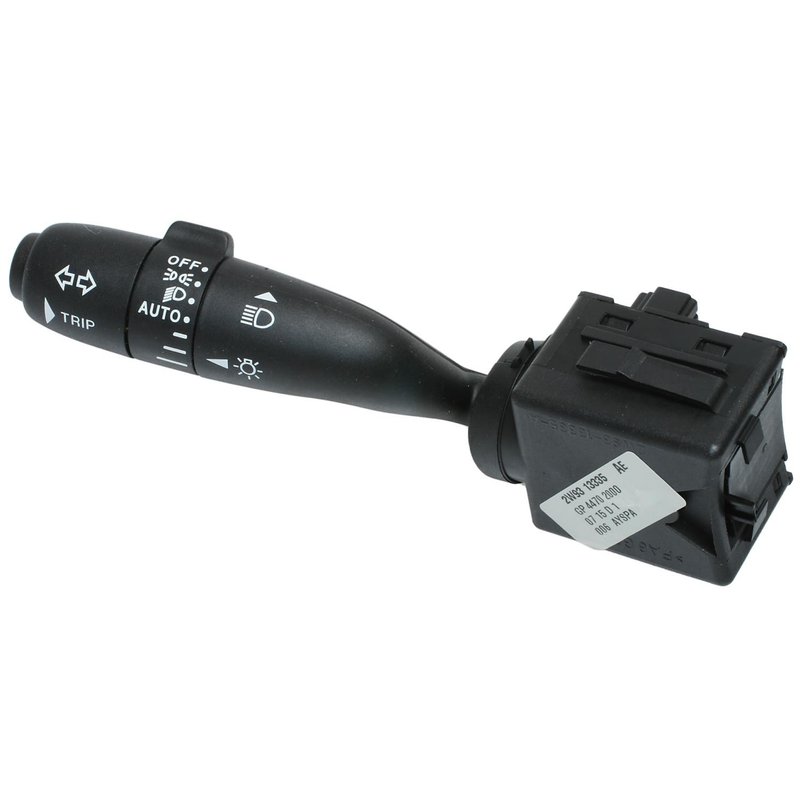

Standard Ignition CBS-1336 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1336 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Jaguar · 31 vehicles |
Bolt-on installation. Female rectangular connector and 6-pin terminals simplify hookup.
Combination switch. Controls headlights, turn signals, running lights, and high beams.
New replacement part. Built as a fresh switch assembly with indicator markings included.
Cross-references Standard Ignition CBS-1336, DL6743 and S14533 for the same application. See all 4.
Headlight Dimmer Switch for Jaguar S-Type and XJ8
Restore reliable lighting control with this Standard Ignition headlight dimmer switch, part number CBS-1336. It is a direct-fit combination switch for select Jaguar models and supports main light operation, high-beam flashing, latching high beam, running light control, and turn signal functions.
Key Features
- Standard Ignition CBS-1336 new replacement switch
- Bolt-on attachment with 1 rectangular female connector
- 6-pin male terminal design
- Combination switch with headlight dimmer and turn signal control
- Includes indicator markings for driver input reference
- Supports main light operator, running light operator, latching high beam, and momentary high beam flasher
- 12-volt electrical design
Detailed Description
The Standard Ignition CBS-1336 is a headlight dimmer switch built for select Jaguar S-Type, Super V8, Vanden Plas, XJ8, and XJR applications. This combination switch is used to manage exterior lighting and directional signaling from the steering column, making it a practical replacement when the original switch shows wear, intermittent operation, or loss of beam control. This part cross-references OE-style numbers such as DL6743 and S14533 for the same application.
Compatible fitment includes Fits 2003-2006 Jaguar S-Type, N/A; Fits 2004-2005 Jaguar Vanden Plas, N/A; Fits 2004-2005 Jaguar XJ8, N/A; Fits 2004-2005 Jaguar XJR, N/A; and Fits 2005 Jaguar Super V8, N/A. Additional 2006 Jaguar coverage applies to specific chassis breakpoints, including Fits 2006 Jaguar S-Type, N/A, To Chassis No. N64913 and Fits 2006 Jaguar Super V8, N/A, To Chassis No. H06673.
Common Issues This Part Can Address
- Headlights that do not switch between low beam and high beam correctly
- Intermittent or inoperative high-beam flash function
- Turn signal control problems at the steering column
- Worn switch contacts causing inconsistent lighting response
- Broken or faded indicator markings on the original switch
Installation Notes and Tips
Verify the connector style, terminal count, and chassis breakpoint before installation, especially on 2006 Jaguar applications with chassis-specific fitment notes. The switch mounts with a bolt-on attachment and uses a single rectangular female connector with male pin terminals. Confirm all lighting and signal functions after installation, including main lights, running lights, high-beam latch, and momentary flash operation.
Quality Assurance
Standard Ignition supplies this CBS-1336 as a new electrical replacement part for direct-fit service use. It is built to match the listed Jaguar applications and restore factory-style switch operation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Jaguar | S-Type | — | — | N/A | — |
| 2006 | Jaguar | S-Type | — | — | N/A | To Chassis No. N64913 |
| 2006 | Jaguar | Super V8 | 4.2L | V8 | N/A | To Chassis No. H06673 |
| 2006 | Jaguar | Super V8 | — | — | N/A | To Chassis No. H06673 |
| 2006 | Jaguar | Vanden Plas | 4.2L | V8 | N/A | To Chassis No. H06673 |
| 2006 | Jaguar | Vanden Plas | — | — | N/A | To Chassis No. H06673 |
| 2006 | Jaguar | XJ8 | — | — | N/A | To Chassis No. H06673 |
| 2006 | Jaguar | XJ8 | 4.2L | V8 | N/A | To Chassis No. H06673 |
| 2006 | Jaguar | XJR | 4.2L | V8 | N/A | To Chassis No. H06673 |
| 2006 | Jaguar | XJR | — | — | N/A | To Chassis No. H06673 |
| 2005 | Jaguar | S-Type | — | — | N/A | — |
| 2005 | Jaguar | Super V8 | 4.2L | V8 | N/A | — |
| 2005 | Jaguar | Super V8 | — | — | N/A | — |
| 2005 | Jaguar | Vanden Plas | 4.2L | V8 | N/A | — |
| 2005 | Jaguar | Vanden Plas | — | — | N/A | — |
| 2005 | Jaguar | XJ8 | 4.2L | V8 | N/A | — |
| 2005 | Jaguar | XJ8 | — | — | N/A | — |
| 2005 | Jaguar | XJR | — | — | N/A | — |
| 2005 | Jaguar | XJR | 4.2L | V8 | N/A | — |
| 2004 | Jaguar | S-Type | 3.0L | V6 | N/A | — |
| 2004 | Jaguar | S-Type | 4.2L | V8 | N/A | — |
| 2004 | Jaguar | S-Type | — | — | N/A | — |
| 2004 | Jaguar | Vanden Plas | — | — | N/A | — |
| 2004 | Jaguar | Vanden Plas | 4.2L | V8 | N/A | — |
| 2004 | Jaguar | XJ8 | — | — | N/A | — |
| 2004 | Jaguar | XJ8 | 4.2L | V8 | N/A | — |
| 2004 | Jaguar | XJR | 4.2L | V8 | N/A | — |
| 2004 | Jaguar | XJR | — | — | N/A | — |
| 2003 | Jaguar | S-Type | 3.0L | V6 | N/A | — |
| 2003 | Jaguar | S-Type | 4.2L | V8 | N/A | — |
| 2003 | Jaguar | S-Type | — | — | N/A | — |
