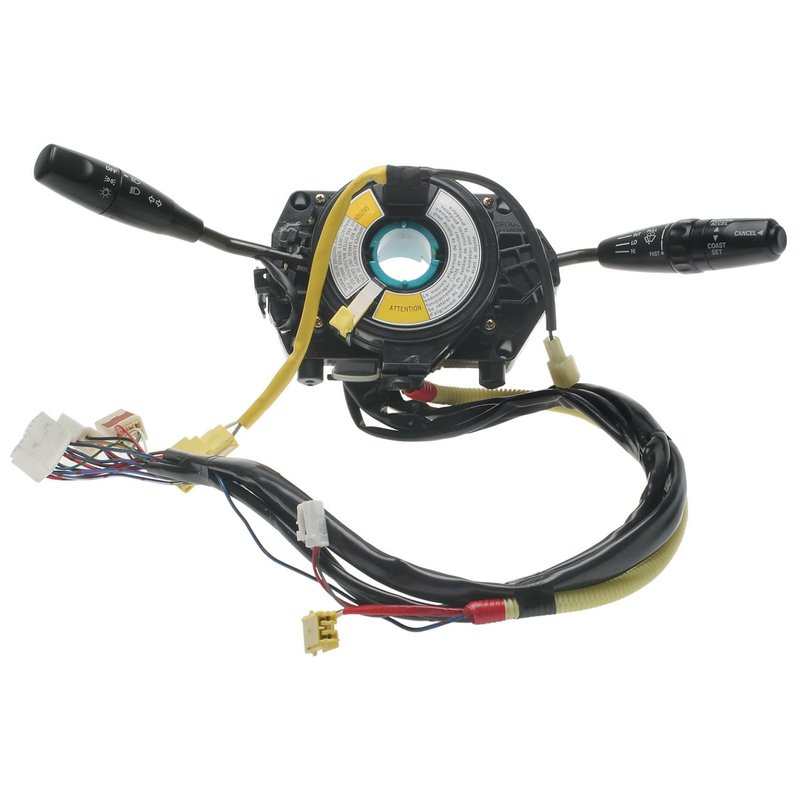

Standard Ignition CBS-1360 Headlight Dimmer Switch

Overview of Standard Ignition Headlight Dimmer Switch CBS-1360

The Standard Ignition Headlight Dimmer Switch CBS-1360 is designed specifically for Suzuki Esteem models, providing reliable control over your vehicle's lighting and cruise control functions. This combination switch integrates multiple features into a single unit, ensuring seamless operation and compatibility.

• Compatible with Suzuki Esteem vehicles
• Combination switch with headlight and high beam control
• Cruise control functions including resume, set, and cancel
• Rectangular connector shape with 7 connectors (male and female terminals)
• Bolt-on attachment method for secure installation
• Includes indicator markings and latching high beam operator
• Plastic black finish for durability and OEM appearance
• Momentary high beam flasher and main light operator included
• Three wiper speed and delay settings integrated

Detailed Product Description

The Standard Ignition CBS-1360 headlight dimmer switch is a new, direct replacement part engineered to meet the electrical and lighting control needs of Suzuki Esteem vehicles. This switch features a bolt-on attachment method and a durable black plastic finish, ensuring a secure fit and long-lasting performance. It includes a combination of lighting controls such as headlights, high beams with latching and momentary flash functions, and indicator markings for clear operation. The switch also integrates cruise control options including resume, set, and cancel functions, enhancing driver convenience without the need for additional components.

With a rectangular connector shape and seven connectors featuring both male and female terminals, the CBS-1360 ensures proper electrical connectivity and compatibility with the vehicle's wiring harness. Additionally, the switch supports three wiper speed settings and three delay settings, although it does not include rear window wiper or washer controls. This part is designed to replace factory switches and restore full functionality to the lighting and cruise control systems of the Suzuki Esteem.

Common Applications and Issues Addressed

• Restores headlight dimming and high beam control functionality
• Resolves cruise control operation problems including resume, set, and cancel functions
• Fixes malfunctioning indicator markings and lighting controls
• Replaces worn or damaged combination switches affecting multiple vehicle systems
• Improves wiper speed and delay control responsiveness

Installation Notes and Tips

• Designed for bolt-on installation; ensure proper alignment before securing
• Verify connector orientation and terminal gender (male/female) for correct wiring
• Disconnect the vehicle battery before installation to prevent electrical shorts
• Check all cruise control and lighting functions after installation to confirm proper operation
• Consult the Suzuki Esteem service manual for detailed wiring diagrams and switch removal procedures

Quality Assurance and Warranty

The Standard Ignition CBS-1360 headlight dimmer switch is a new, OEM-quality replacement part manufactured to meet or exceed original equipment specifications. It undergoes rigorous testing to ensure reliable electrical performance and durability. While specific warranty details may vary, Standard Ignition products typically include a limited warranty against defects in materials and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
